Connecting to Propane Gas
Position the cylinder in the opening in the bottom of
the cart and secure with the cylinder retaining
bracket. F
IGURE
10.
Attach the pressure regulator to the Propane
gas cylinder’s valve using the plastic handwheel.
Tighten in a clockwise motion to achieve a gas
tight seal. F
IGURE
11.
C
AUTION
: D
O NOT USE A WRENCH OR ANY OTHER TOOL
TO TIGHTEN
. U
SE OF A WRENCH OR OTHER TOOL WILL
DAMAGE THE PLASTIC HANDWHEEL
.
To disconnect the Propane gas cylinder, turn
OFF the cylinder’s valve and the grill’s control
valve. Remove the regulator by turning the
plastic handwheel counterclockwise.
The pressure regulator has an outlet pressure of
not more than eleven (11") inches water column.
It must be connected to the Propane gas
cylinder’s female valve outlet before the grill can
be operated.
C
AUTION
: O
PERATION OF A
P
ROPANE GAS GRILL
WITHOUT THE PRESSURE REGULATOR AND HOSE
ASSEMBLY WILL CAUSE GAS LEAKS WHICH COULD LEAD
TO FIRE OR EXPLOSION
,
RESULTING IN PROPERTY
DAMAGE OR PERSONAL INJURY
.
The pressure regulator’s fitting must remain
clean and free of nicks and scratches. A dirty,
nicked or scratched fitting can cause a gas leak,
resulting in an explosion or fire. Use only
genuine Broilmaster
® replacement parts unless
otherwise specified by the manufacturer.

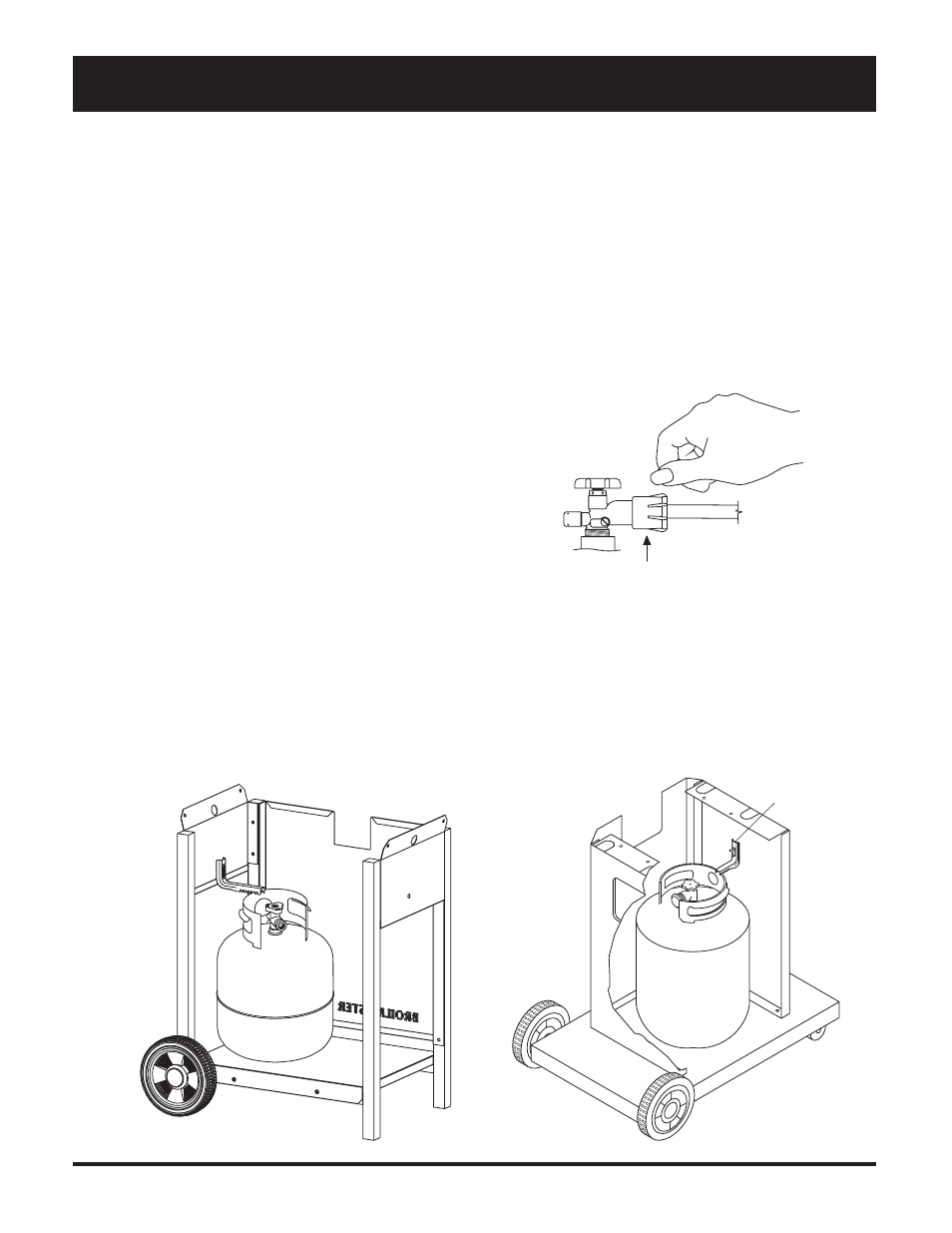

Pressure Regulator and
