Broilmaster D4-1 - Manual (Page 10)

Page 10 B100691-0-0103
G
RILL
A
SSEMBLY

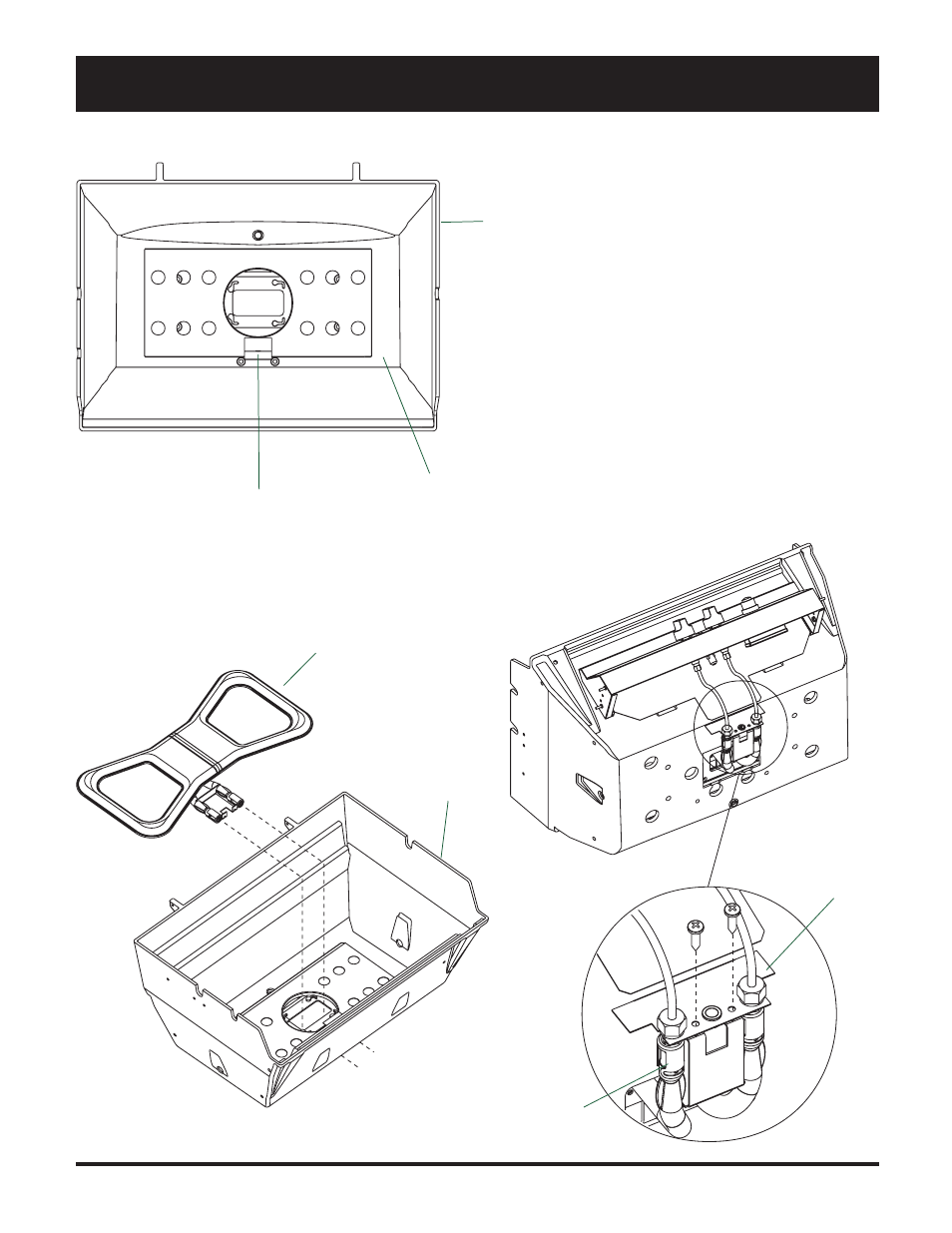

Radiation Shield
Place the radiation shield (10) in the grill bottom
(22). F
IGURE 3.
Installing the Burner
Insert the burner assembly (9) into the grill bottom
(22) with the venturi tubes facing the front of the grill.
F
IGURE 4.
The gas jets from the control valve will be inside the
ends of the venturi tubes when properly installed.
Attach venturi to manifold mounting bracket (15)
with 2-8 x 3/4 Phillips screws. F
IGURE
5.
F
IGURE
5
F
IGURE
3
F
IGURE
4
22
9
10
27
22
15
AIR
SHUTTER
