13 EURORACK UB1204FX-PRO/UB1204-PRO User Manual
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)

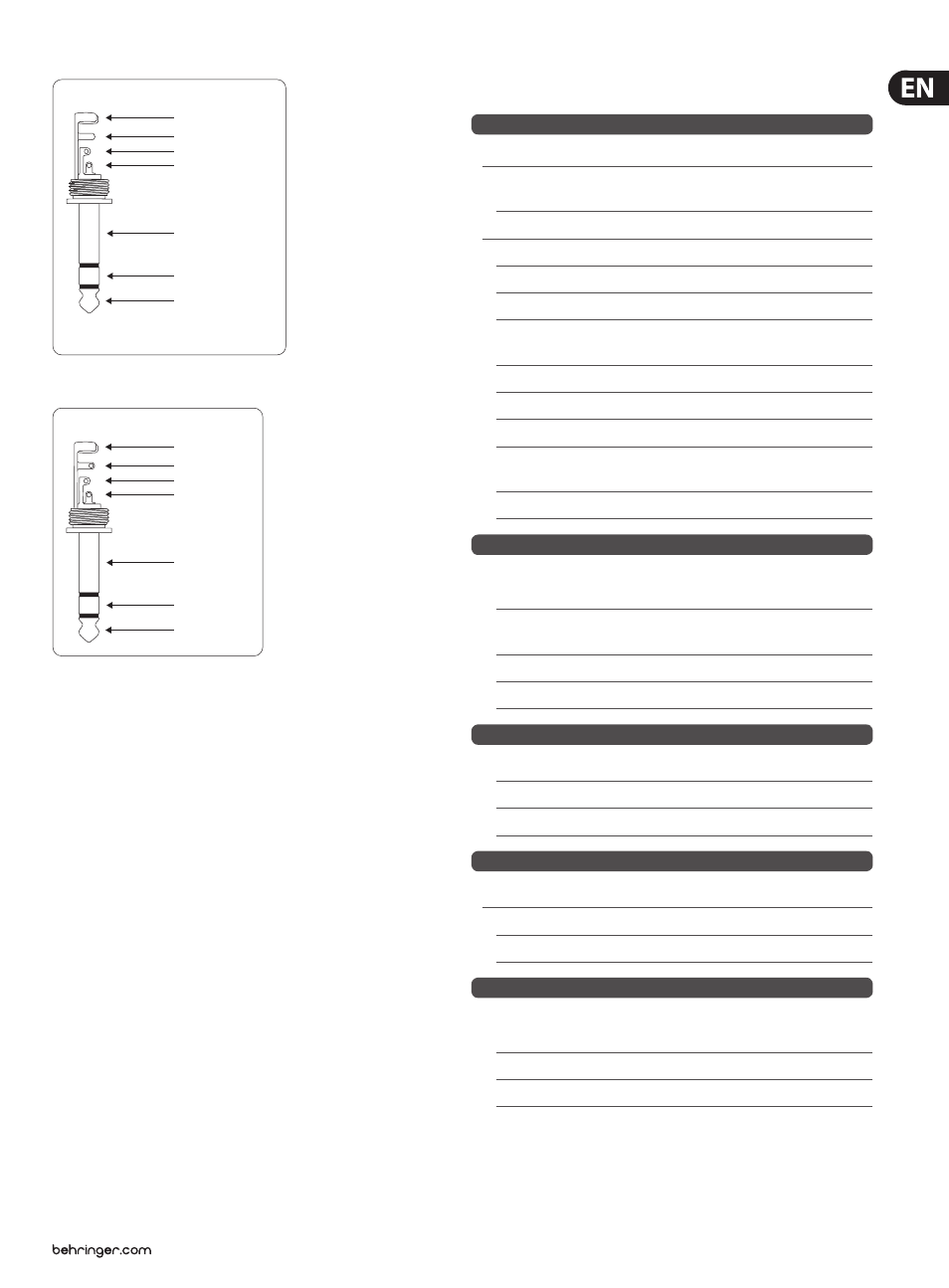

Fig. 4.4: 1/4" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
¼" TRS headphones connector
ring
right signal
tip
left signal
Fig. 4.5: 1/4" TRS connector for headphones
5. Specifications
Mono Inputs
Microphone Inputs (IMP “Invisible” Mic Preamp)
Type XLR, electronically balanced,
discrete input circuit
Mic E.I.N. (20 Hz - 20 kHz)
@ 0 Ω source resistance -134 dB / 135.7 dB A-weighted
@ 50 Ω source resistance -131 dB / 133.3 dB A-weighted
@ 150 Ω source resistance -129 dB / 130.5 dB A-weighted
Frequency response <10 Hz - 150 kHz (-1 dB),
<10 Hz - 200 kHz (-3 dB)
Gain range +10 to +60 dB
Max. input level +12 dBu @ +10 dB gain
Impedance approx. 2.6 kΩ balanced
Signal-to-noise ratio 110 dB / 112 dB A-weighted
(0 dBu In @ +22 dB gain)
Distortion (THD+N) 0.005% / 0.004% A-weighted
Line Input
Type 1/4" TRS connector
electronically balanced
Impedance approx. 20 kΩ balanced
approx. 10 kΩ unbalanced
Gain range -10 to +40 dB
Max. input level 30 dBu
Fade-Out Attenuation 1 (Crosstalk Attenuation)
Main fader closed 90 dB
Channel muted 89.5 dB
Channel fader closed 89 dB
Frequency Response
Microphone Input to Main Out
<10 Hz - 90 kHz +0 dB / -1 dB
<10 Hz - 160 kHz +0 dB / -3 dB
Stereo Inputs
Type 1/4" TRS connector,
electronically balanced
Impedance approx. 20 kΩ
Max. input level +22 dBu
