1. POWER SWITCH FRYER position turns ON the FRYER and POWER LIGHT ; and,
(FRYER-OFF-FILTER) turns OFF the FILTER PUMP.
Heating elements are energized and regulate to the temp. set on the
CONTROL THERMOSTAT (item 8).
OFF position turns OFF the FRYER and de-energizes the lower panel
FILTER PUMP SWITCH (item 6).
FILTER position energizes the lower FILTER PUMP SWITCH (item 6)
and turns OFF the FRYER.
2. POWER LIGHT (amber) When lit: indicates FRYER is energized.
3. HEAT LIGHT (amber) When lit: indicates HEATING ELEMENT is energized.
Light turns OFF when oil has reached temp. preset on CONTROL
THERMOSTAT(item 8)
4. COOK LIGHT (amber) When lit: indicates CONTROL LEVER (item 13) is in COOK position.
5. TIMER Controls the buzzer. The timer is SET by rotating the pointer on the
dial to the desired cooking time, and is STARTED by moving the
CONTROL ROD (item 13)to the COOK position.
6. FILTER PUMP SWITCH ON Causes the oil to be filtered & pumped back into the FRYPOT.
(ON - OFF) The POWER SWITCH (item 1) must be in the FILTER position for
the FILTER PUMP SWITCH to operate.

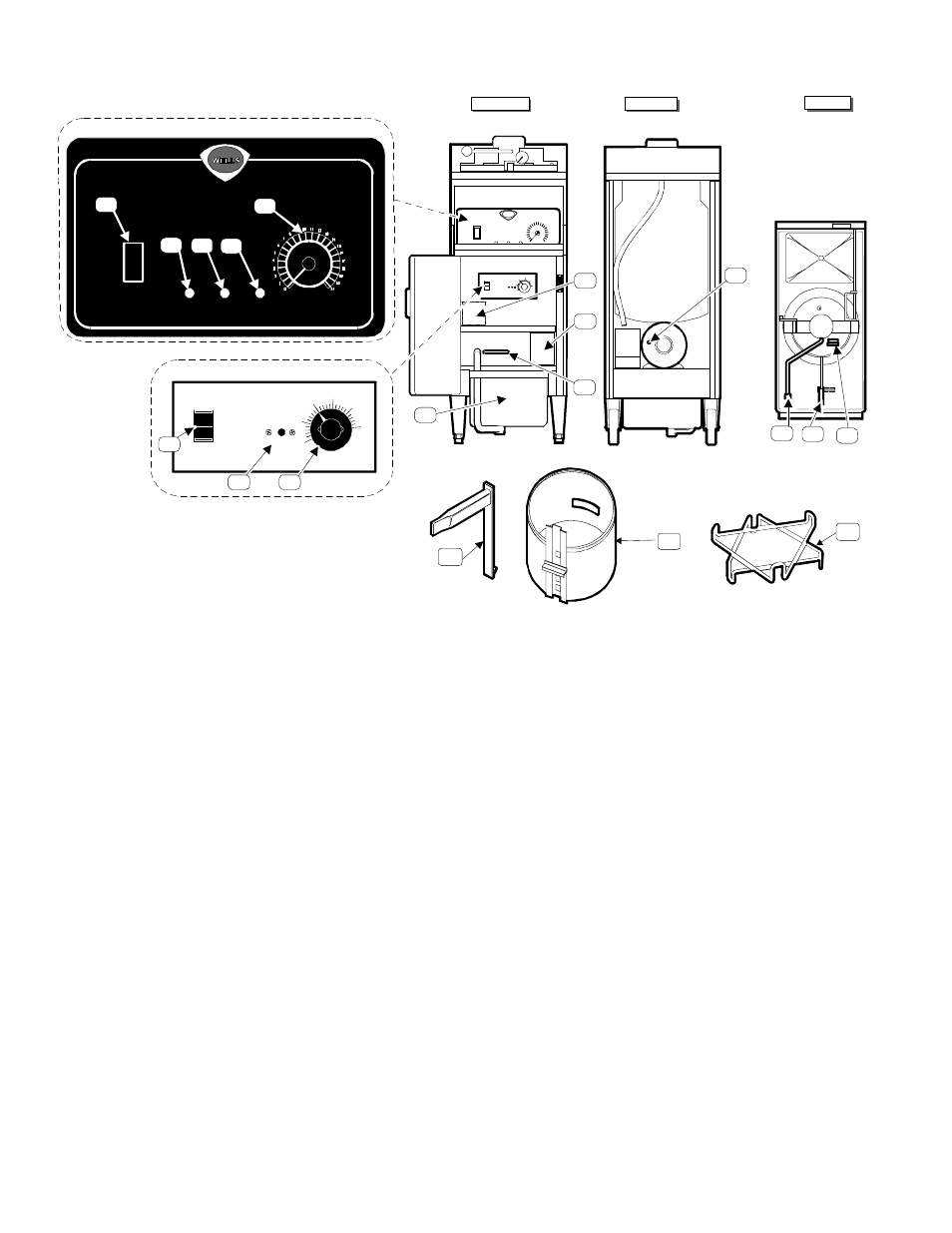

FEATURES AND OPERATING CONTROLS
