Brinkmann Vertical Smoker Charcoal/Wood Smoker Grill User Manual

Page 6

WARNING:

Use caution when lifting or
moving smoker to prevent
strains and back injuries.
Moving smoker may require the
help of an additional person.

NOTE:

With the help of a friend, turn the
smoker box with locking casters to an
upright position.

Step 3

Place the ash pan on support bar between
legs of smoker box.

Step 4

Place the charcoal pan into the charcoal
pan bracket. Place the charcoal pan
bracket onto the bottom shelves of the
smoker box.

NOTE:

Charcoal pan has a small hole in the
center of the pan.

Step 5

Place the water pan into the water pan
bracket. Place the water pan bracket onto
the shelves above the charcoal pan.

Step 6

Place the cooking grills onto the three
upper smoker box shelves.

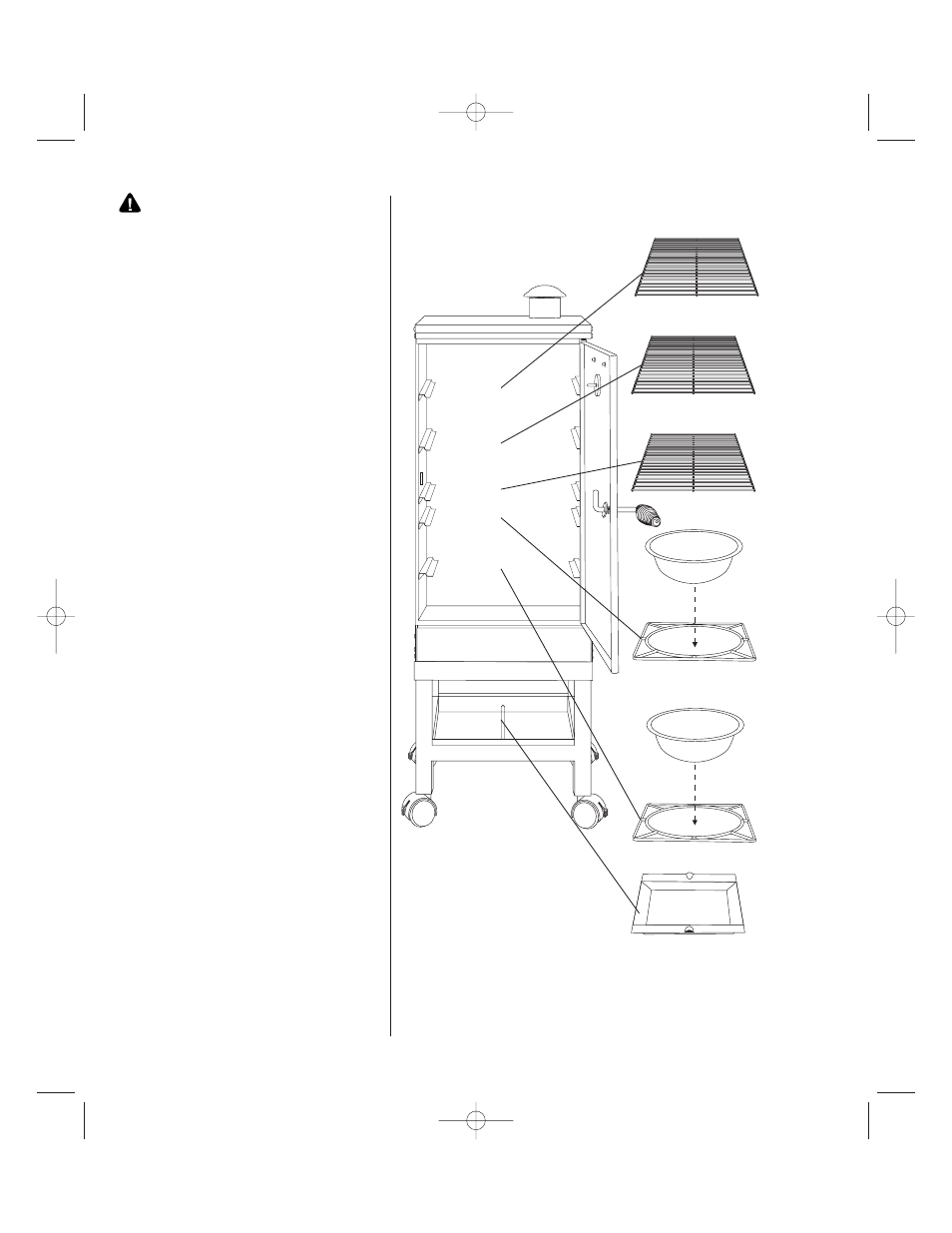

Cooking Grill

Water Pan

Water Pan Bracket

Charcoal Pan

Charcoal Pan Bracket

Ash Pan
