Black Box CAT5 Shielded Twisted Pair (STP) Patch Cable - Manual (Page 3)

3 of 3 3/5/2008
#18045 724-746-5500 blackbox.com
Item Code
CAT5 Shielded Twisted-Pair (STP) Cable, 4-Pair, 568B, RJ-45–
RJ-45
Stranded, PVC, CMR, Riser
Blue
3-ft. (0.9-m) EVNSL61T-0003
6-ft. (1.8-m) EVNSL61T-0006
10-ft. (3.0-m) EVNSL61T-0010
20-ft. (6.1-m) EVNSL60BL-0020
Custom Lengths EVNSL60BL
Green
3-ft. (0.9-m) EVNSL62T-0003
6-ft. (1.8-m) EVNSL62T-0006
10-ft. (3.0-m) EVNSL62T-0010
20-ft. (6.1-m) EVNSL62T-0020
Custom Lengths EVNSL60GR
Red
3-ft. (0.9-m) EVNSL63T-0003
6-ft. (1.8-m) EVNSL63T-0006
10-ft. (3.0-m) EVNSL63T-0010
20-ft. (6.1-m) EVNSL63T-0020
Custom Lengths EVNSL60RD
Yellow
3-ft. (0.9-m) EVNSL64T-0003
6-ft. (1.8-m) EVNSL64T-0006
10-ft. (3.0-m) EVNSL64T-0010
20-ft. (6.1-m) EVNSL64T-0020
Custom Lengths EVNSL60YL
Gray
3-ft. (0.9-m) EVNSL60T-0003
6-ft. (1.8-m) EVNSL60T-0006
10-ft. (3.0-m) EVNSL60T-0010
20-ft. (6.1-m) EVNSL60T-0020
Custom Lengths EVNSL60
Solid, Plenum-Rated, NEC CMP
Gray
2-ft. (0.6-m) EVNSL171GY-0002
5-ft. (1.5-m) EVNSL171GY-0005
10-ft. (3.0-m) EVNSL171GY-0010
15-ft. (4.6-m) EVNSL171GY-0015
20-ft. (6.1-m) EVNSL171GY-0020
25-ft. (7.6-m) EVNSL171GY-0025
50-ft. (15.2-m) EVNSL171GY-0050
100-ft. (30.5-m) EVNSL171GY-0100
Blue
2-ft. (0.6-m) EVNSL171BL-0002
5-ft. (1.5-m) EVNSL171BL-0005
10-ft. (3.0-m) EVNSL171BL-0010
15-ft. (4.6-m) EVNSL171BL-0015
20-ft. (6.1-m) EVNSL171BL-0020
25-ft. (7.6-m) EVNSL171BL-0025
50-ft. (15.2-m) EVNSL171BL-0050
100-ft. (30.5-m) EVNSL171BL-0100

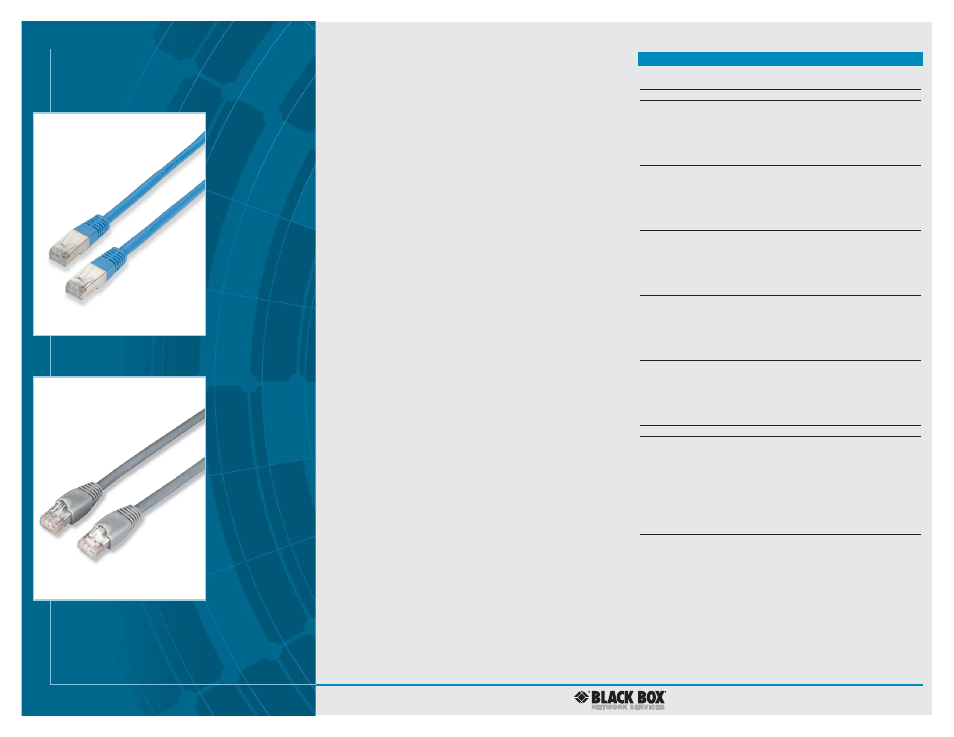

Snagless boots
Molded boots
TECH SPECS
Attenuation — Maximum worst pair, per 328 ft. (100 m): 22 dB at
100 MHz
Cable Type — PVC: 4-pair stranded STP;
Plenum: 4-pair solid STP
Compliance — UL ® /ETL Verified for Category 5
Conductor Gauge — PVC: 26 AWG;
Plenum: 24 AWG
Conductor Material — PVC: Stranded copper (7 x 34);
Plenum: Solid copper
Frequency — Up to 100 MHz
Impedance — 100 ±15 ohms from 1 to 100 MHz
Jacket — PVC: 0.022" (0.5 mm) thick;
Plenum: 0.033" (0.43 mm) thick
Mutual Capacitance — 56 pF/ft. maximum
Near-End Crosstalk — Minimum, worst pair, per minute:
35.3 dB at 100 MHz
Number of Conductors — Eight (four pairs)
Outer Diameter — PVC: 0.22" (5.7 mm);
Plenum: 0.23" (5.8 mm)
Pairing — As per EIA/TIA-568: 1 & 2, 3 & 6, 4 & 5, 7 & 8
Pinning — Straight-through (1 to 1, 2 to 2, etc.)
Shielding — Aluminum Mylar
® tape;
PVC: With tinned plated 26 AWG stranded drain wire;
Plenum: With tinned plated 24 AWG drain wire
Wiring Type — TIA/EIA-568-B
Connectors — EVNSL60T–EVNSL64T, EVNSL171GY, EVNSL171BL:
(2) RJ-45 M (plastic) with molded boots;
EVNSL60BL, EVNSL60GR, EVNSL60RD, EVNSL60YL, EVNSL60:
(2) RJ-45 M (plastic) with snagless boots
NOTE: Only custom-length PVC cables have snagless boots. All
other cables listed in this data sheet have molded boots.
