SERVICE (cont.)
BREW SWITCH (Start) - Model CEZ-APS/TS/TSR
Location:
The BREW switch is located in the center front of
the hood.
Test Procedure:
1. Disconnect the brewer from the power source.
2. Disconnect the white/yellow wire from the top
switch terminal and the white/orange from the
bottom switch terminal.
3. Check for continuity across the two terminals on
the switch when it is held in the lower position.
Continuity must not be present across these ter-
minals when the switch is released.
P1851
P1917

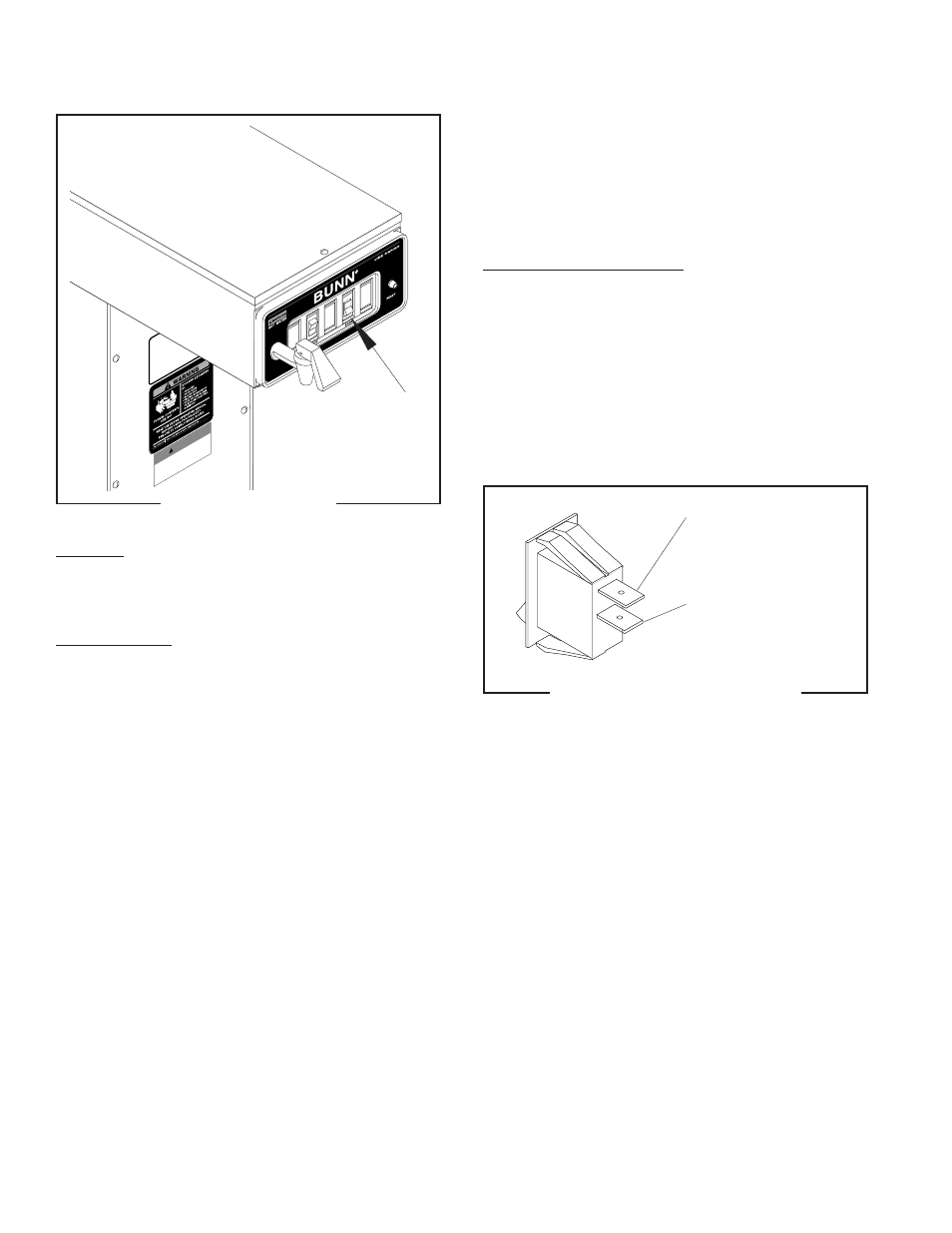

FIG. 7 BREW SWITCH
FIG. 8 BREW SWITCH WIRING
WHI/YEL from
Control Board J5-1
WHI/ORA from
Control Board J5-6
If continuity is present as described, reconnect the
white/yellow wire to the top terminal and the white/
orange to the bottom terminal.
If continuity is not present as described, replace the
switch.
Removal and Replacement:
1. Remove the white/yellow wire and white/orange
from the BREW switch.
2. Compress the clips inside the hood and gently
push the switch through the opening.
3. Push new switch into the opening and spread the
clips to hold the BREW switch in the hood.
4. Refer to FIG. 8 when reconnecting the wires.
29253 091603
