LTM 11200-9.1 10

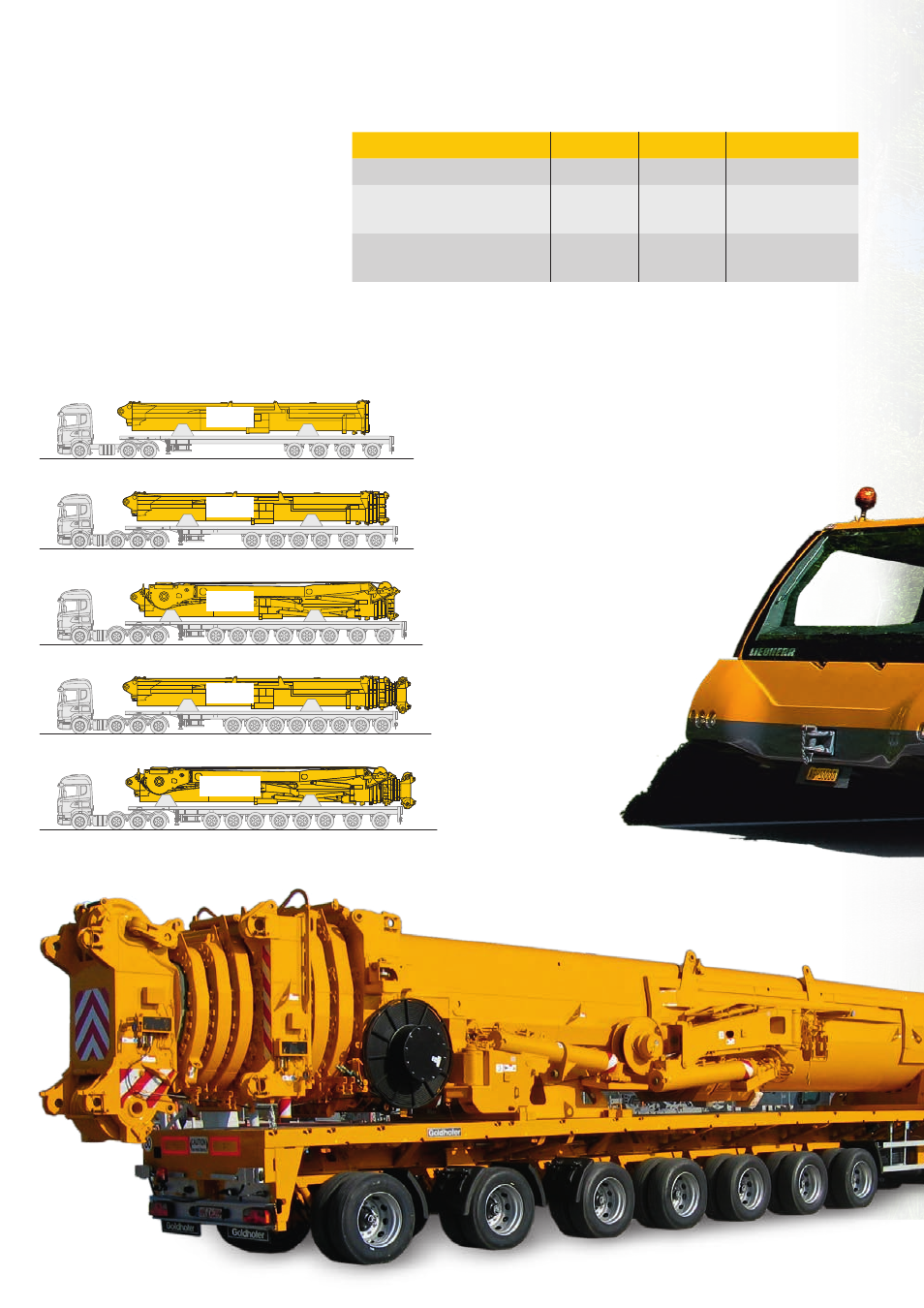

Economical transportation
The chassis drives on the road with
slewing platform, luffing cylinder and all
four folding beams.
The chassis weight and the axle loads
can further be reduced by dismantling
of equipment components.
Axle 1-2 Axle 3-9 Total weight
Vehicle without telescopic boom 12 t 12 t 108 t
Vehicle without telescopic boom,
without winches
< 10 t < 12 t < 100 t
Vehicle without telescopic boom,
without winches, without swing-
out beams
< 9 t < 9 t < 76 t
The boom is transported separately on a low bed trailer. For this different variations are possible.
Variable boom transportation concept (examples)
100 m telescopic boom + Y-suspension
Stated weights without boom lifting unit
Heel section + telescope 1
52 m telescopic boom
52 m telescopic boom + Y-suspension
100 m telescopic boom
34 t
52 t
77 t
75 t
100 t
