LB 36 3

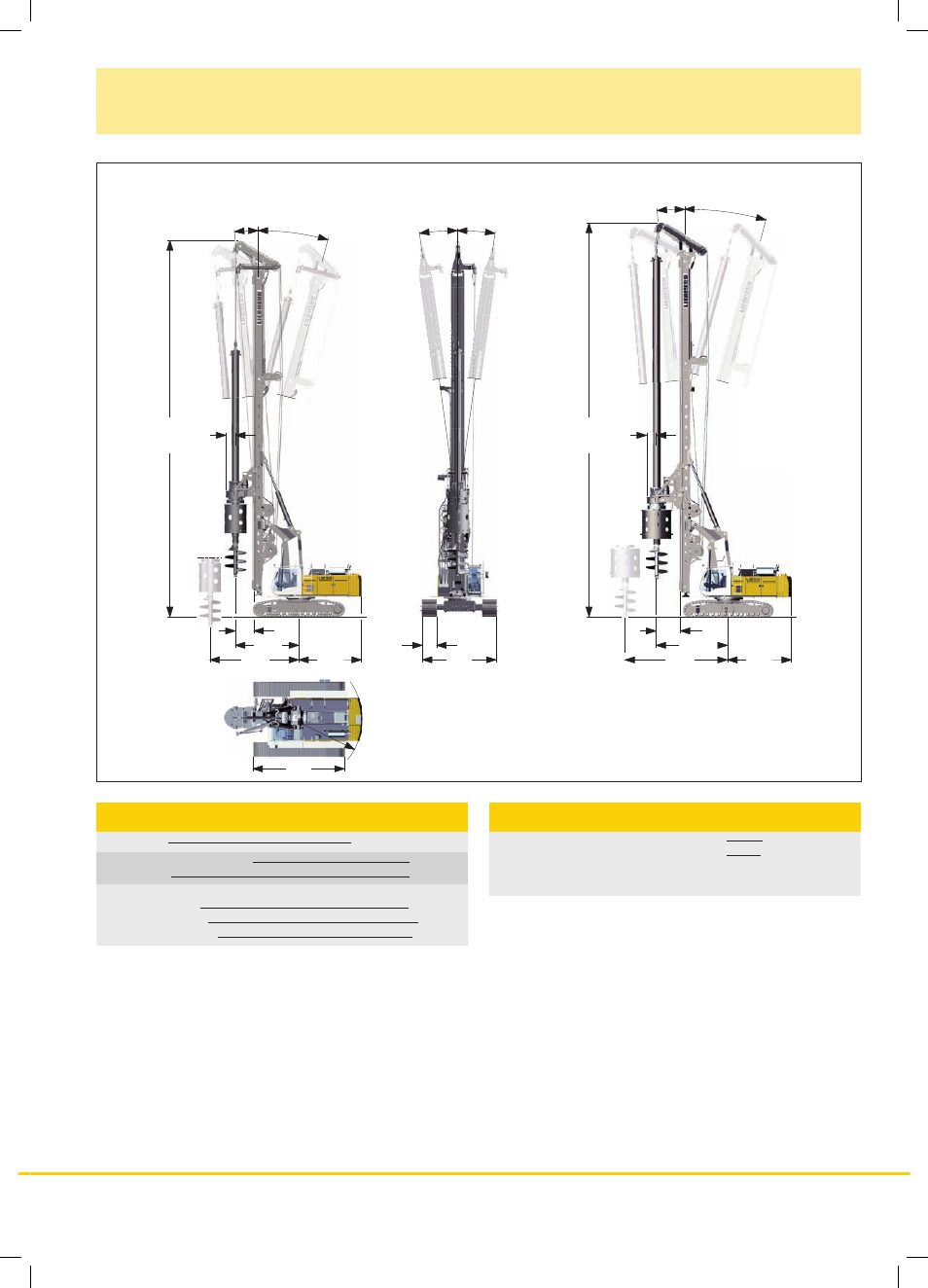

Dimensions
Basic machine LB 36
Operating weight
Total weight with 900 mm 3–web shoes (119.5 t*) 114.3 t
with 1000 mm 3–web shoes (120.2 t*) 115.0 t
The operating weight includes the basic machine (with rotary and
Kelly bar MD 36/3/30) and 20.5 t (22.5 t*) counterweight.
15° 5°
1300
5665
4415
4370
26200
665
1000
5° 5°
5150
R 4440
6410
1700
6065
4815
4480
27550
665
5° 15°
Technical data
Total height (27.55 m*) 26.2 m
Max. pull, leader on ground 400 kN
Max. torque 366 kNm
Stepless leader inclination
Lateral inclination
± 5°
Forward inclination 5°
Backward inclination 15°
*) With optional equipment.
LB 36 with optional equipment LB 36 standard
