2 LB 36

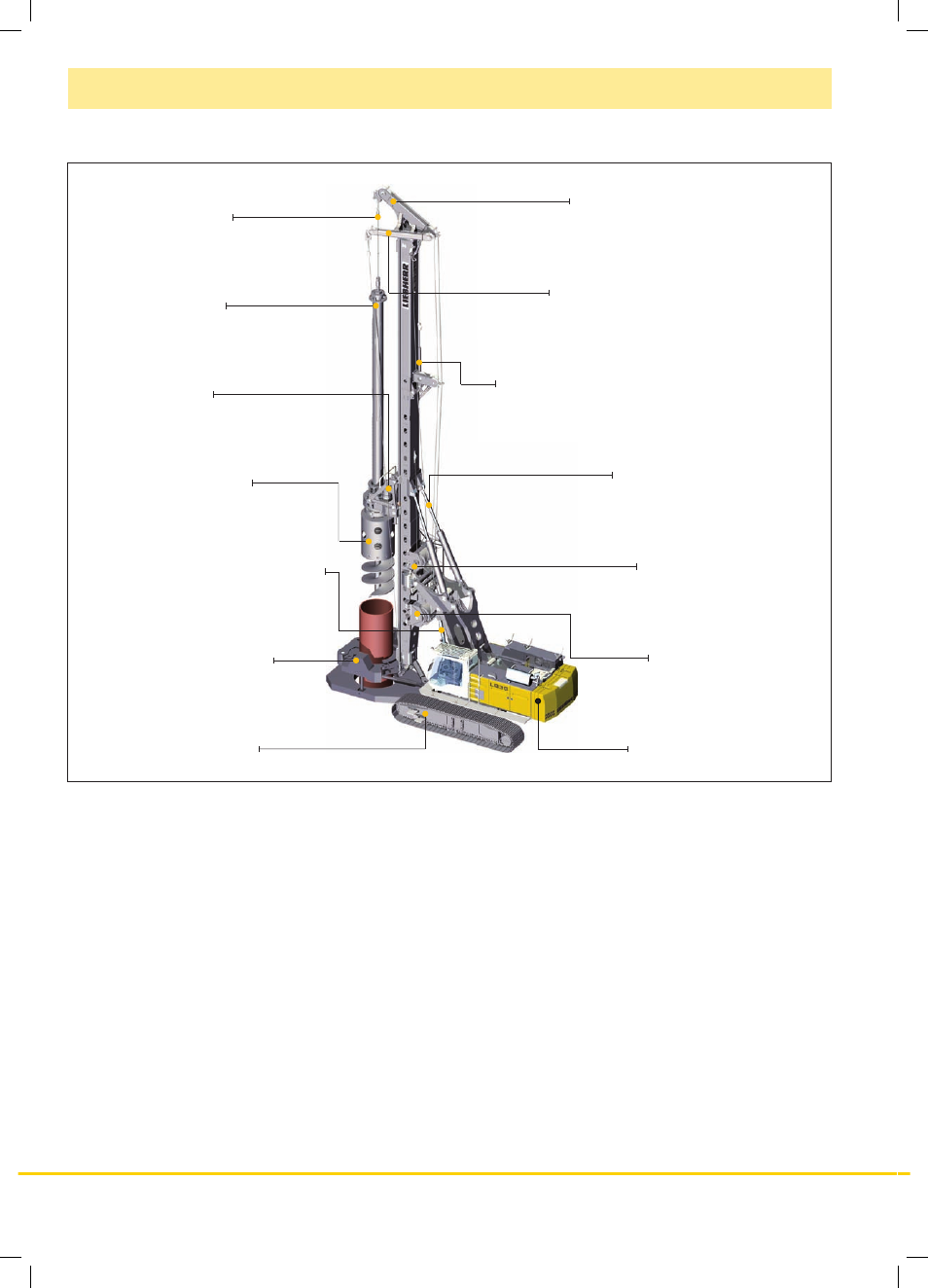

Concept and characteristics
Kelly rope
Leader top for Kelly rope
Kelly bar
Inclination device
Leader top for auxiliary rope
Tensioning cylinder for crowd system
Rotary
Kelly winch Casing oscillator
Undercarriage
Radius adjustment device
Uppercarriage
Crowd winch
Casing driver
• High engine output with automatic engine speed
control
• Controlled entirely from cab
• Sturdy and solid rig design
• Solid parallel kinematics on the basic machine
• High pull and push forces
• High torque
• Completely self-rigging (no auxiliary machines
required)
• Large range of working tools (all common
drilling works can be performed)
• Stepless leader inclination 5° forward - 15° backward
depending on type of equipment
• Automatic vertical alignment
• High alignment forces
• Simultaneous control of several movements via
Load-sensing multi-circuit hydraulics
• Quick assembly of rotary possible through
quick connection
• Equipment design according to latest European
regulations and standards
• All components designed to fulfill the special
requirements of a drilling rig
• High manufacturing quality through quality control
by PDE ® -system
