L 586 13
L0046.01 L0046.02
L0046.03

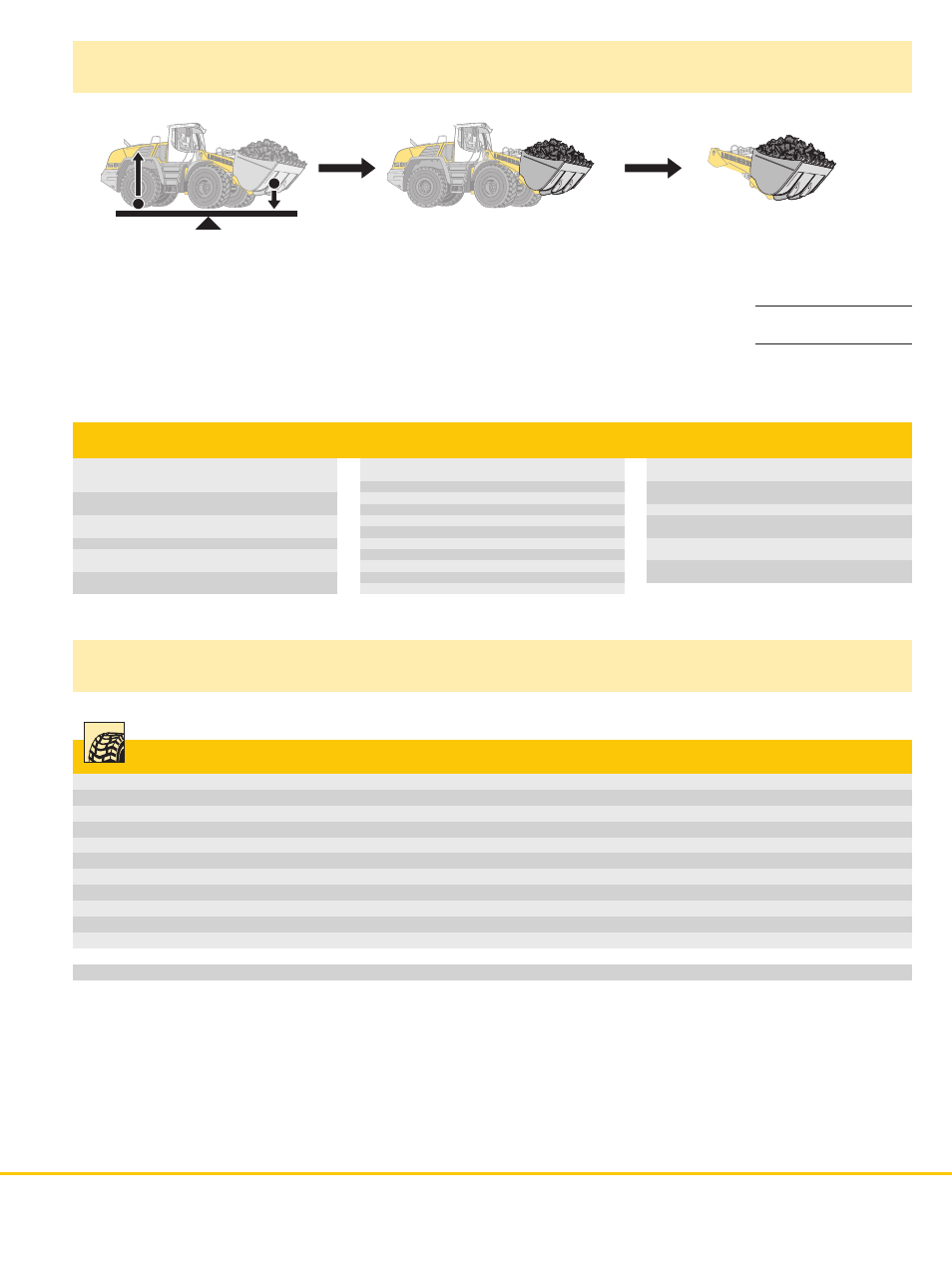

Tipping Load
ISO 14397-1
What is tipping load?
Load at center of gravity of working equip-
ment, so that the wheel loader just begins
to tip over the front axle.
This is the most unfavorable static-load
position for the wheel loader.
Lifting arms horizontal, wheel loader fully
articulated at center pivot. Pay load.
The pay load must not exceed 50% of the
tipping load when articulated.
This is equivalent to a static stability-margin
factor of 2.0. Bucket capacity.
The bucket volume is determined from the
pay load.
Tipping load, articulated
2
Pay load =
Pay load (lb)
Specific bulk weight of
material (lb/yd 3 )
Bucket capacity =
Bulk Material Densities and Bucket Filling Factors
lb/yd 3 %
Gravel, moist 3,203 105
dry 2,697 105
crushed stone 2,528 100
Sand, dry 2,528 105
wet 3,203 110
Gravel and sand, dry 2,865 105
wet 3,371 100
Sand / clay 2,697 110
Clay, natural 2,697 110
dry 2,360 110
Clay / gravel, dry 2,360 110
wet 2,697 100
lb/yd 3 %
Earth, dry 2,191 115
wet excavated 2,697 110
Topsoil 1,854 110
Basalt 3,287 100
Granite 3,034 95
Sandstone 2,697 100
Slate 2,950 100
Bauxite 2,360 100
Limestone 2,697 100
Gypsum, broken 3,034 100
Coke 843 110
Slag, broken 3,034 100
lb/yd 3 %
Glass waste, broken 2,360 100
solid 1,686 100
Compost, dry 1,348 105
wet 1,686 110
Wood chips / saw dust 843 110
Paper, shredded / loose 1,011 110
recovered paper / cardboard 1,686 110
Coal, heavy material density 2,023 110
light material density 1,517 110
Waste, domestic waste 843 100
bulky waste 1,686 100
Tires
Size and Change of Width over Change in vertical
tread code operating weight tires dimensions Use
lb ft in in
L 586
Bridgestone 29.5R25 VJT
L3 + 322 10’8” + 1.77 Bulk material (firm ground conditions)
Bridgestone 29.5R25 VSDT L5 + 3,020 10’9” + 1.97 Stone, Mining spoil (firm ground conditions)
Bridgestone 29.5R25 VSDL L5 + 3,814 10’9” + 2.36 Stone, Scrap, Recycling (firm ground conditions)
Goodyear 29.5R25 TL-3A+ L3 + 1,173 10’10” + 1.42 Sand, Gravel, Earthworks, Clay (all ground conditions)
Goodyear 29.5R25 GP-4D L4 + 1,111 10’8” + 0.95 Gravel, Industry, Wood (firm ground conditions)
Goodyear 29.5R25 RL-4K L4 + 2,478 10’9” + 1.73 Gravel, Industry, Stone (firm ground conditions)
Goodyear 29.5R25 RL-5K L5 + 3,527 10’10” + 2.60 Stone, Scrap, Recycling (firm ground conditions)
Michelin 29.5R25 XHA2 L3 0 10’8” 0 Sand, Gravel, Earthworks, Clay (all ground conditions)
Michelin 29.5R25 XLD D2A L5 + 2,064 10’8” + 1.02 Stone, Mining spoil (firm ground conditions)
Michelin 29.5R25 XMINE L5 + 2,901 10’10” + 2.17 Stone, Scrap, Recycling (firm ground conditions)
Before operating the vehicle with tire foam filling or tire protection chains, please discuss this with the factory.
