4 LH 80 C Litronic Machine for Industrial Applications

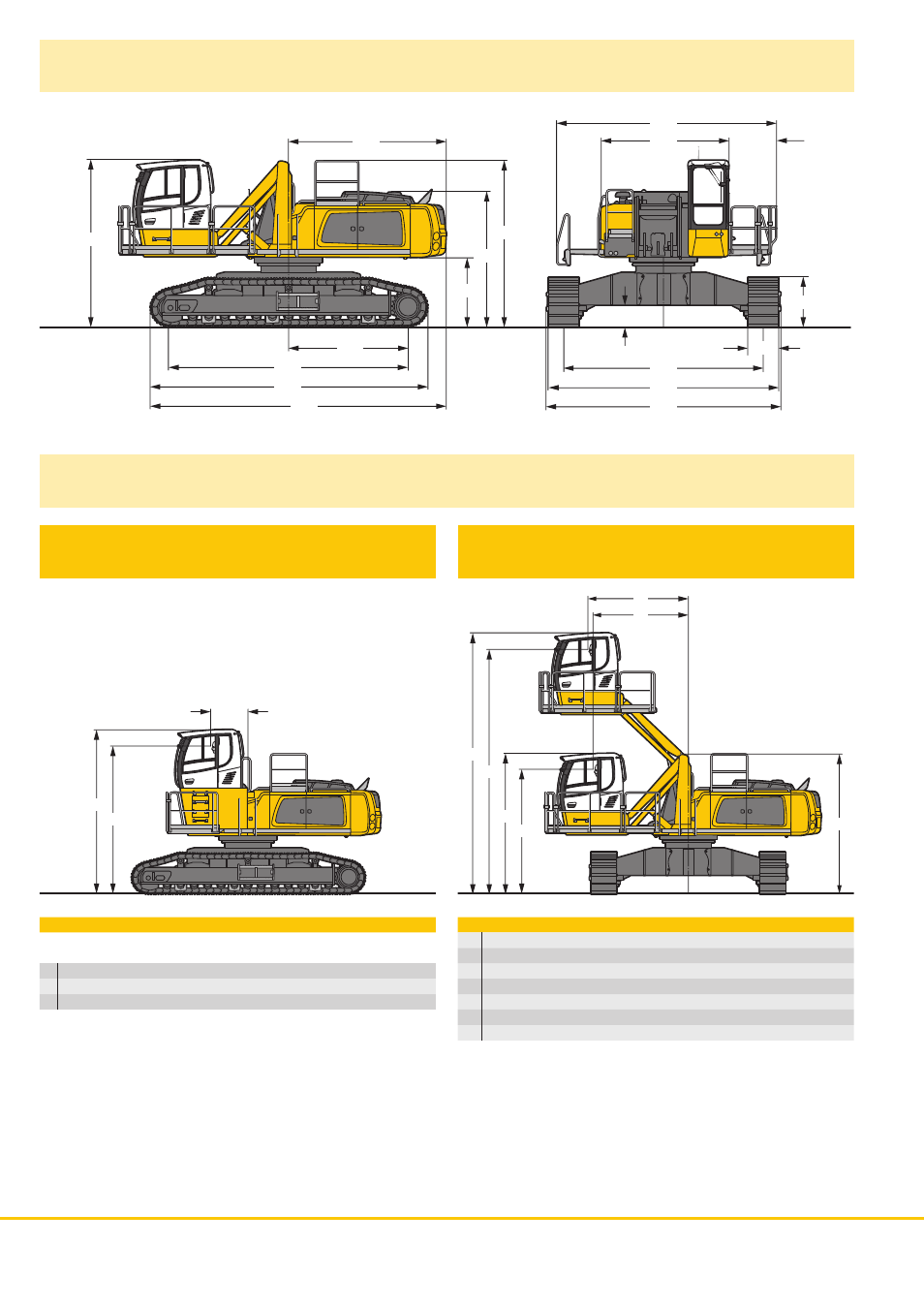

Choice of Cab Elevation SW
B
C
D
D1
C2
B2
C1
B1
E
D2
Cab Elevation LFC
(Rigid Elevation)
Cab Elevation LHC
(Hydraulic Elevation)
Dimensions SW
3951
5525
3190
5000
5750
5860
6000
3000
4193
4195
3386
1758
6962
7416
1216
1250
750
544
H0008
Increase Type LFC 120 LFC 150 LFC 200
Height mm 1,200 1,500 2,000
B mm 4,413 4,713 5,213
C mm 4,893 5,193 5,693
D mm 1,109 1,109 1,109
A rigid cab elevation has a fixed eye level height. For a lower transport
height, the shell of the cab can be removed and replaced by a transport
device. The dimension C is in this machine design for all rigid cab
elevations 3,997 mm.
Increase Type LHC 360-50 LHC 340-35 LHC 255
B1 mm 3,714 3,575 3,160
B2 mm 7,284 6,990 5,707
C1 mm 4,193 4,054 3,703
C2 mm 7,764 7,469 6,250
D1 mm 2,835 2,778 1,711
D2 mm 2,985 2,777 1,837
E mm 4,173 4,034 3,643
The hydraulically adjustable cab allows the driver, that he can choose
his field of view freely and at any time within the stroke.
