LH 80 C Litronic Machine for Industrial Applications 17

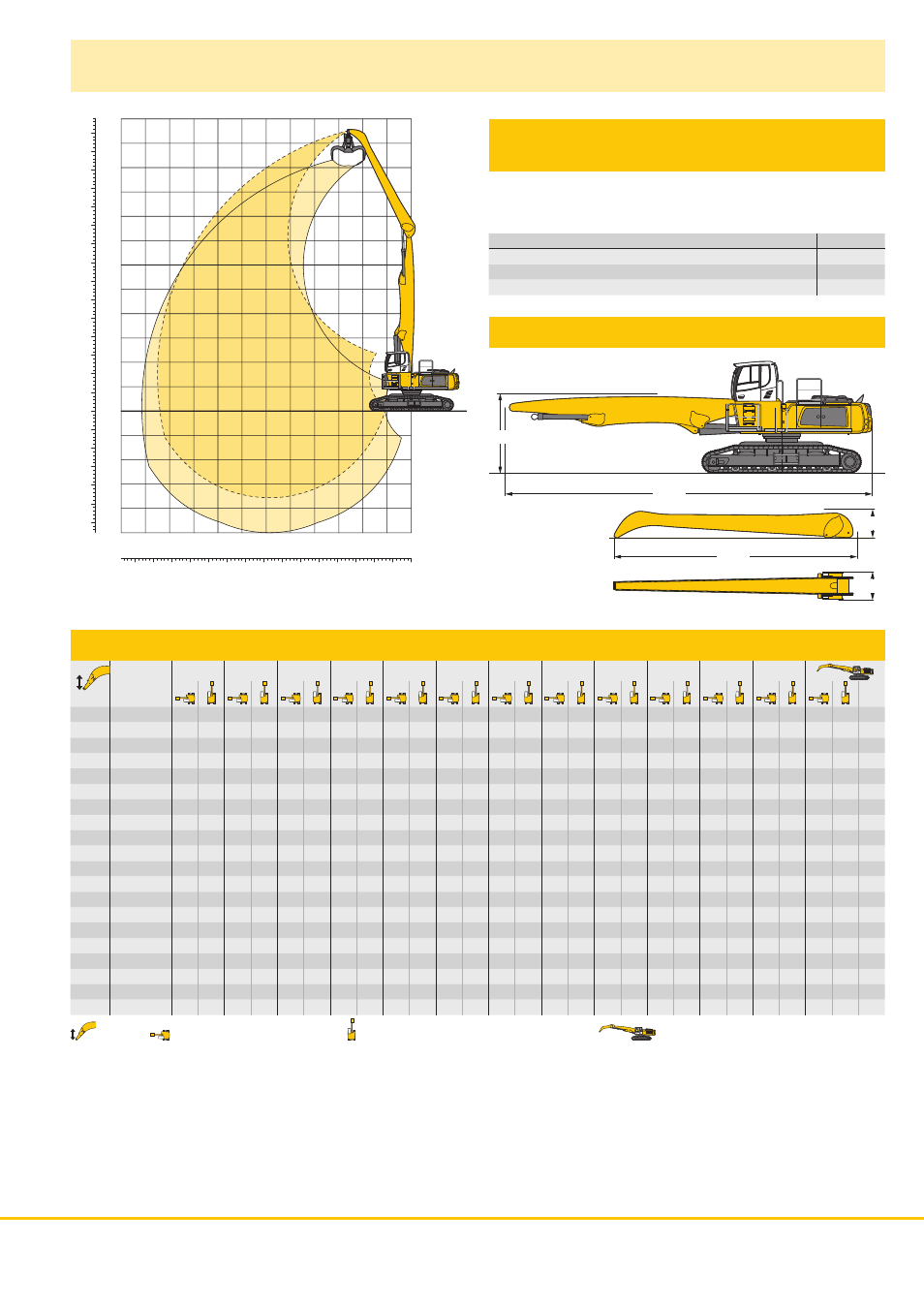

Attachment GA21
(Kinematic 2A)
Dimensions
ft
m
70
75
22
24
20
18
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
-10
65
60
55
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
-20
-25
-30
0 2 4 6 8 10 12 14 16 18 20 22 24
65 70 75 60 55 50 45 40 35 30 25 20 15 10 5 0
ft m
H0006
3550
H0203
16050
10450
1250
1250
Operating Weight
and Ground Pressure
The operating weight includes basic machine with rigid cab elevation,
industrial-type straight mono boom 11.50 m, industrial-type angled
stick 10.00 m and grapple model GMM 80-5/1.40 m
3 semi-closed tines.
Undercarriage SW
Pad width mm 750
Weight kg 75,900
Ground pressure
on request
Industrial Stick 10.00 m
m
Under-
carriage
4.5 m 6.0 m 7.5 m 9.0 m 10.5 m 12.0 m 13.5 m 15.0 m 16.5 m 18.0 m 19.5 m 21.0 m
m
22.5 SW 11.0* 11.0* 7.0
21.0 SW 10.5* 10.5* 8.6* 8.6* 10.3
19.5 SW 11.6* 11.6* 10.4* 10.4* 8.7* 8.7* 7.5* 7.5* 12.7
18.0 SW 11.3* 11.3* 10.2* 10.2* 8.5* 8.5* 6.9* 6.9* 14.4
16.5 SW 11.7* 11.7* 11.0* 11.0* 9.9* 9.9* 8.1* 8.1* 6.4* 6.4* 15.9
15.0 SW 12.0* 12.0* 11.0* 11.0* 10.0* 10.0* 9.3* 9.3* 7.4* 7.4* 6.1* 6.1* 17.1
13.5 SW 12.2* 12.2* 11.0* 11.0* 10.0* 10.0* 9.2* 9.2* 8.5* 8.5* 6.1* 6.1* 5.9* 5.9* 18.1
12.0 SW 12.3* 12.3* 11.0* 11.0* 10.0* 10.0* 9.2* 9.2* 8.5* 8.5* 7.7 7.8* 5.8* 5.8* 18.9
10.5 SW 12.4* 12.4* 11.2* 11.2* 10.1* 10.1* 9.3* 9.3* 8.5* 8.5* 7.7 7.9* 5.8* 5.8* 5.7* 5.7* 19.5
9.0 SW 13.2* 13.2* 12.7* 12.7* 11.3* 11.3* 10.2* 10.2* 9.3* 9.3* 8.6* 8.6* 7.6 7.9* 6.4 7.2* 5.6* 5.6* 20.1
7.5 SW 12.9* 12.9* 14.5* 14.5* 13.0* 13.0* 11.6* 11.6* 10.4* 10.4* 9.4* 9.4* 8.6* 8.6* 7.5 7.9* 6.3 7.3* 5.6* 5.6* 20.5
6.0 SW 12.7* 12.7* 15.5* 15.5* 15.5* 15.5* 13.4* 13.4* 11.8* 11.8* 10.6* 10.6* 9.6* 9.6* 8.6 8.7* 7.3 7.9* 6.2 7.2* 5.4 5.7* 20.8
4.5 SW 17.2* 17.2* 21.2* 21.2* 19.3* 19.3* 16.1* 16.1* 13.8* 13.8* 12.1* 12.1* 10.8* 10.8* 9.7* 9.7* 8.3 8.8* 7.1 8.0* 6.1 7.2* 5.3 5.7* 20.9
3.0 SW 14.1* 14.1* 25.8* 25.8* 20.3* 20.3* 16.7* 16.7* 14.2* 14.2* 12.4* 12.4* 10.9* 10.9* 9.5 9.8* 8.0 8.8* 6.9 7.9* 6.0 7.1* 5.2 5.9* 5.2 5.8* 21.0
1.5 SW 3.7* 3.7* 14.8* 14.8* 21.0* 21.0* 17.2* 17.2* 14.5* 14.5* 12.6* 12.6* 10.7 11.0* 9.1 9.8* 7.8 8.8* 6.7 7.8* 5.8 6.9* 5.1 5.6* 21.0
0 SW 3.1* 3.1* 8.3* 8.3* 21.3* 21.3* 17.4* 17.4* 14.7* 14.7* 12.3 12.6* 10.3 11.0* 8.7 9.7* 7.5 8.6* 6.5 7.6* 5.7 6.5* 5.2 5.2* 20.8
– 1.5 SW 3.6* 3.6* 7.2* 7.2* 15.0* 15.0* 17.3* 17.3* 14.3 14.6* 11.8 12.5* 9.9 10.9* 8.5 9.5* 7.3 8.4* 6.4 7.2* 5.6 6.0* 4.8* 4.8* 20.5
– 3.0 SW 4.4* 4.4* 7.4* 7.4* 13.0* 13.0* 16.6* 16.6* 13.8 14.1* 11.4 12.1* 9.6 10.5* 8.2 9.1* 7.2 7.9* 6.3 6.6* 5.1* 5.1* 4.7* 4.7* 19.8
– 4.5 SW 8.0* 8.0* 12.6* 12.6* 15.3* 15.3* 13.1* 13.1* 11.1 11.3* 9.4 9.8* 8.1 8.4* 7.1* 7.1* 5.7* 5.7* 5.1* 5.1* 18.5
– 6.0 SW 13.0* 13.0* 13.4* 13.4* 11.6* 11.6* 10.0* 10.0* 8.6* 8.6* 7.2* 7.2* 5.9* 5.9* 16.4
Height Can be slewed through 360° In longitudinal position of undercarriage Max. reach * Limited by hydr. capacity
The lift capacities on the stick end without attachment are stated in metric tons (t) and can be slewed through 360° on a firm, level supporting surface.
Capacities are valid for 750 mm wide triple grouser pads (resp. flat pads). Indicated loads comply with the ISO 10567 standard and do not exceed
75 % of tipping or 87 % of hydraulic capacity. The lift capacity values indicated are attained at the corresponding operating temperature. This operating
temperature is ensured by continuous movement of the boom. Weights of fitted working tools (grabs, load hooks, etc.) and load accommodation
equipment are to be deducted from the lift capacity values. The lift capacity of the unit is limited by its stability, the lifting capability of the hydraulic
elements, or the maximum permissible lifting capacity of the load hook.
In accordance with the harmonised European Standard EN 474-5, hydraulic excavators used for lifting operations must be equipped with pipe
fracture safety valves, an overload warning device, a load hook and a lift capacity chart.
