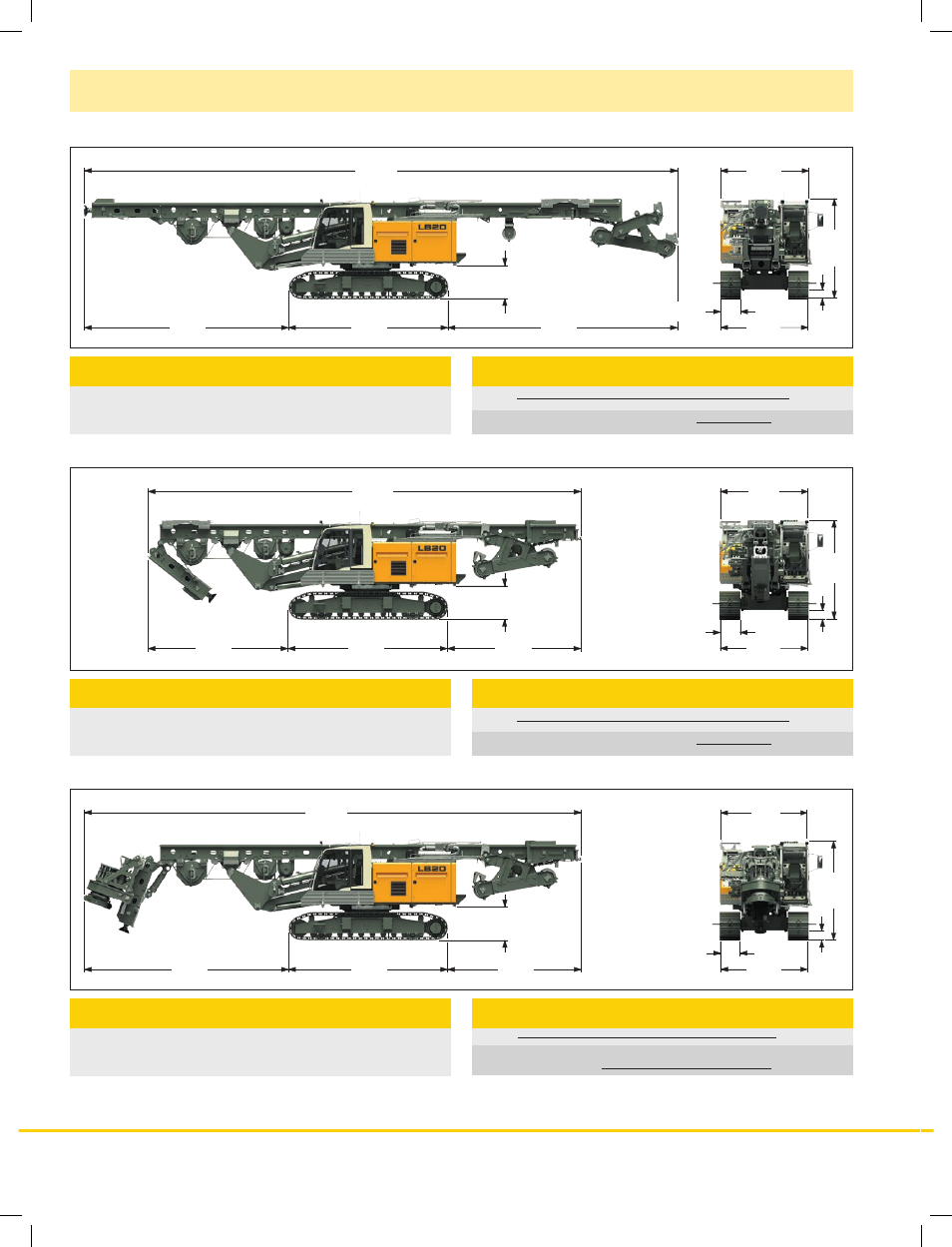

Transport dimensions and weights
22´9´´ 17´10´´ 25´ 8´´
66´3´´
44.1´´
27.55´´
9´10´´
9´10´´
12.2´´
11´3´´
Transport
- Standard
includes the basic machine (ready for operation) with leader, without
working tools (such as rotary, Kelly bar etc.) and without counter-
weight.
Dimensions and weights
Length 66.2 ft
Weight complete without counterweight 112,660 lbs
22´10´´ 17´10´´ 14´11
55´ 7´´
44.1´´
27.55´´
9´10´´
12.2´´
11´3´´
9´10´´
*) Folding cylinder for leader top recommended
**) Folding cylinder for leader top and leader bottom required
Transport
- Leader folded with rotary**
includes the basic machine (ready for operation) with leader and
rotary, without other working tools (such as Kelly bar etc.) and
without counterweight.
Dimensions and weights
Length 55,450 ft
Weight complete, with rotary and
without counterweight
124,785 lbs
44.1´´
15´ 7´´ 17´10´´ 14´11´´
48´4´´
27.55´´
9´10´´
12.2´´
11´3´´
9´10´´
Transport
- Leader folded*
includes the basic machine (ready for operation) with leader, without
working tools (such as rotary, Kelly bar etc.) and without counter-
weight.
Dimensions and weights
Length 48.2 ft
Weight complete without counterweight 112,880 lbs
