2 LB 20

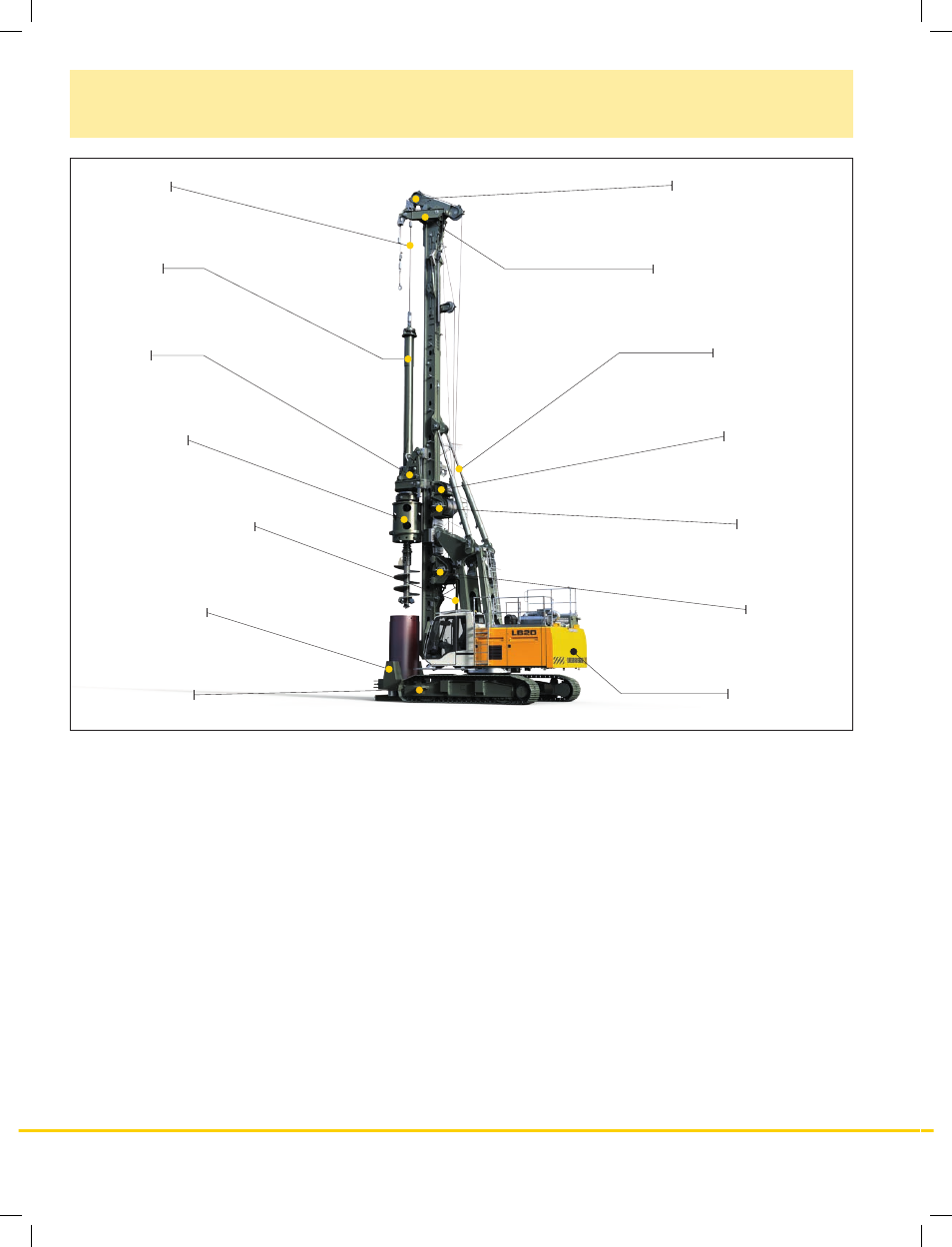

Kelly bar
Casing oscillator
Kelly rope
Rotary
Casing driver
Radius adjustment device
Undercarriage
Kelly winch
Auxiliary winch
Crowd winch
Leader top for auxiliary rope
Leader top for Kelly rope
Inclination device
Counterweight
Concept and characteristics
LB 20
The robust universal machine for a wide variety of applications:
The Litronic control with assistance systems supports the operator:
• Cruise Control for the drilling process
• Joystick control for all machine functions
• Automatic shake-off function for working tools
• Leader inclination memory etc.
Sophisticated solutions provide safe operation and maintenance of the
machine:
• Cab design for optimum visibility
• Acoustic and optic warning
• Walkways on the uppercarriage
• Safety rails on top of the uppercarriage
• Rear and side view cameras etc.
Liebherr Kelly bars feature strongly overlapping elements resulting in
less wear.
Precise and robust Liebherr casings and drilling tools provide excellent
drilling performance.
• Kelly drilling
• Auger drilling
• Full displacement drilling
• Double rotary drilling
The solid undercarriage offers excellent stability and low ground bearing
pressure.
The uppercarriage with its small swing radius enables operation in
restricted space.
Parallel kinematics with a large working area allow to fold back the
leader.
The rigid leader absorbs high torque and is fitted with a rope crowd
system for high pull forces.
All winches are mounted on the leader, which provides a direct view of
the main winch from the operator’s cab.
The rotary drive of the BAT series combines exceptional torque with
optimum operating comfort.
The powerful Liebherr diesel engine is low in emission and economical
through SCR technology.
