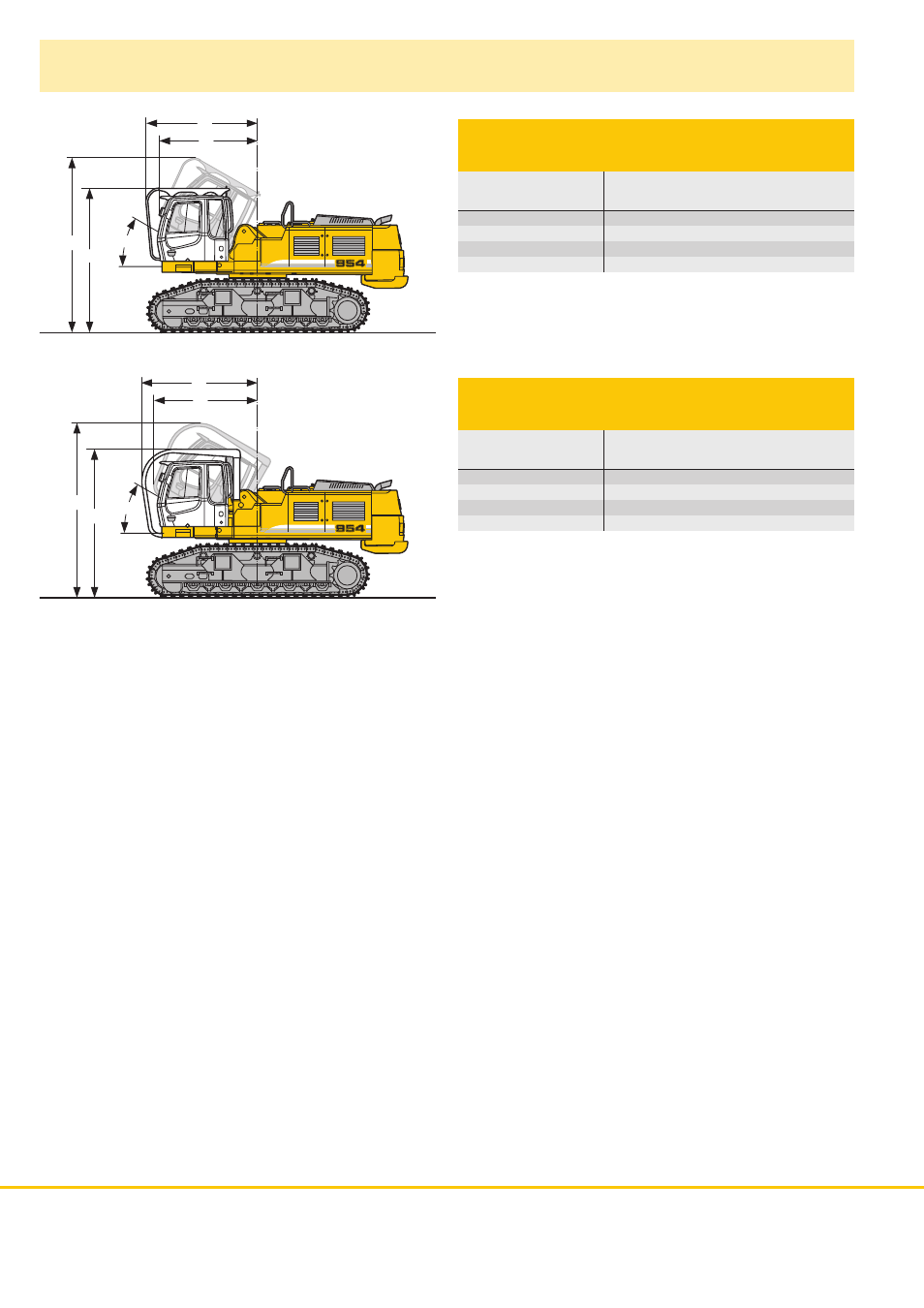

Choice of Cab Elevations
F1
C
30º
F2
C1
F1
F2
C
C1
30º
Version tiltable 30° with integral
protection grid
Undercarriage HD V S-HD HD-EW V-HDW VH-HD
C mm 3600 3652 3712 3770 3870 3765
C1 mm 4435 4490 4550 4600 4610 4710
F1 mm 2550 2550 2550 2550 2550 2550
F2 mm 2900 2900 2900 2900 2900 2900
Version tiltable 30° with integral
protection grid on tilting device
Undercarriage HD V S-HD HD-EW V-HDW VH-HD
C mm 3715 3770 3830 3882 3890 3990
C1 mm 4408 4462 4522 4575 4580 4680
F1 mm 2727 2727 2727 2727 2727 2727
F2 mm 3014 3014 3014 3014 3014 3014
