10 R 954 C Litronic Demolition Attachment

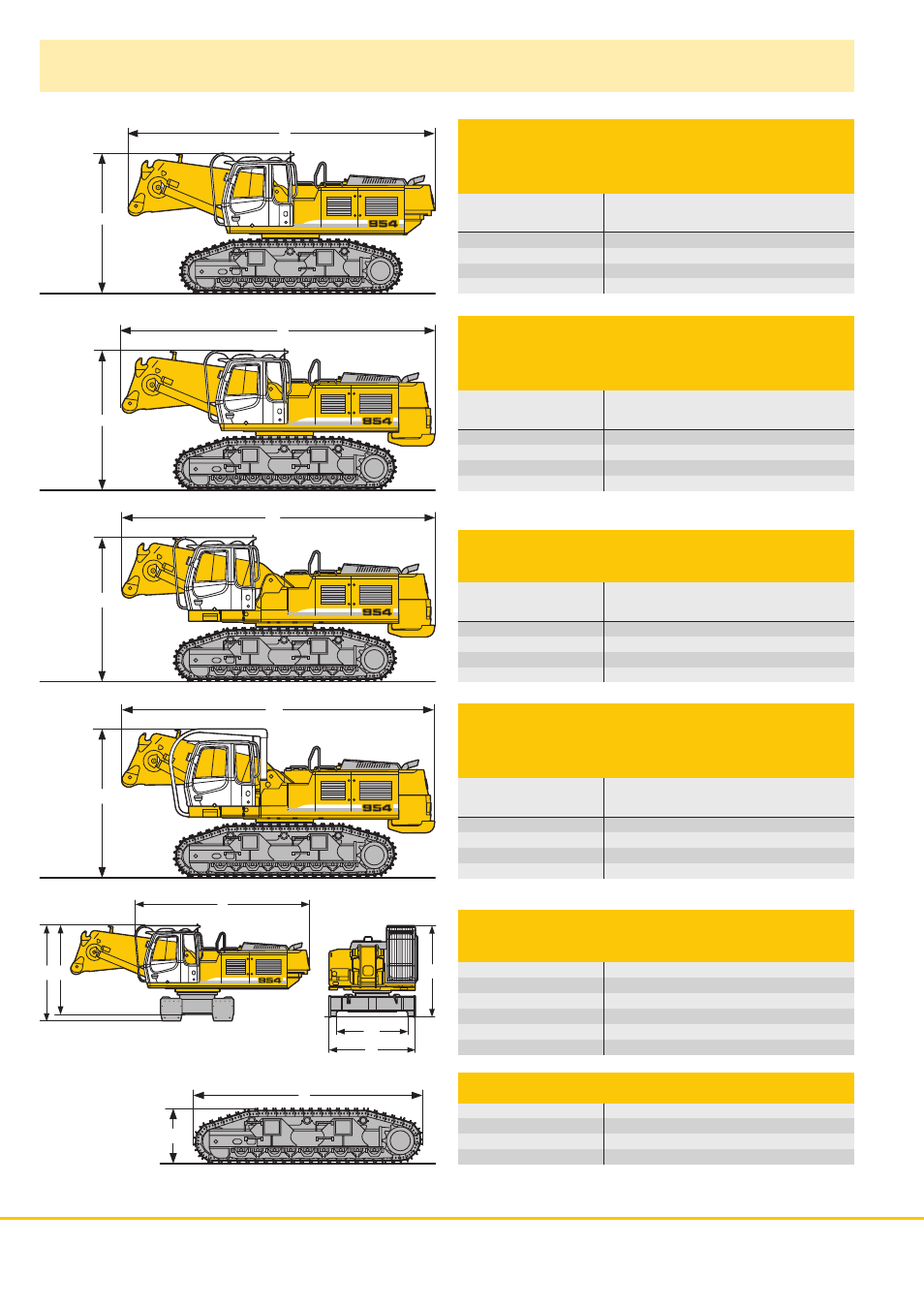

Dimensions and Weights
L
H
L
H
H
L
H
L
L
B1
H H
B
H1
L
H
Basic machine with fixed cab and
integral protection grid without
counterweight
Undercarriage HD V S-HD HD-EW V-HDW VH-HD
Pad width mm 600 600 600 600 600 600
L mm 8050 8050 8050 8050 8050 8050
H mm 3465 3517 3577 3635 3735 3630
Weight kg 36500 39500 41300 44900 48100 50600
Basic machine with fixed cab and
integral protection grid with
counterweight
Undercarriage HD V S-HD HD-EW V-HDW VH-HD
Pad width mm 600 600 600 600 600 600
L mm 8200 8200 8200 8200 8200 8200
H mm 3465 3517 3577 3635 3735 3630
Weight kg 47300 50300 52100 55700 58900 61400
Basic machine with cab tiltable 30°
and integral protection grid
Undercarriage HD V S-HD HD-EW V-HDW VH-HD
Pad width mm 600 600 600 600 600 600
L mm 8200 8200 8200 8200 8200 8200
H mm 3600 3652 3712 3770 3870 3765
Weight kg 48300 51300 53100 56700 59900 62400
Basic machine with cab tiltable 30°
and integral protection grid on
tilting device
Pad width HD V S-HD HD-EW V-HDW VH-HD
Bodenplattenbreite mm 600 600 600 600 600 600
L mm 8200 8200 8200 8200 8200 8200
H mm 3715 3770 3830 3887 3987 3882
Weight kg 48700 51700 53500 57100 60300 62800
Basic Machine without Side Frames
for HD-EW-Undercarriage
L Length mm 5650
H Height mm 3200
H1 Height mm 2980
B Width mm 3000
B1 Width mm 2500
Weight kg 19900
Side Frame for HD-EW Undercarriage
L Length mm 5670
H Height mm 1385
Width mm 1100
Weight kg 2 x 9800
