R 954 C Litronic Demolition Attachment 11

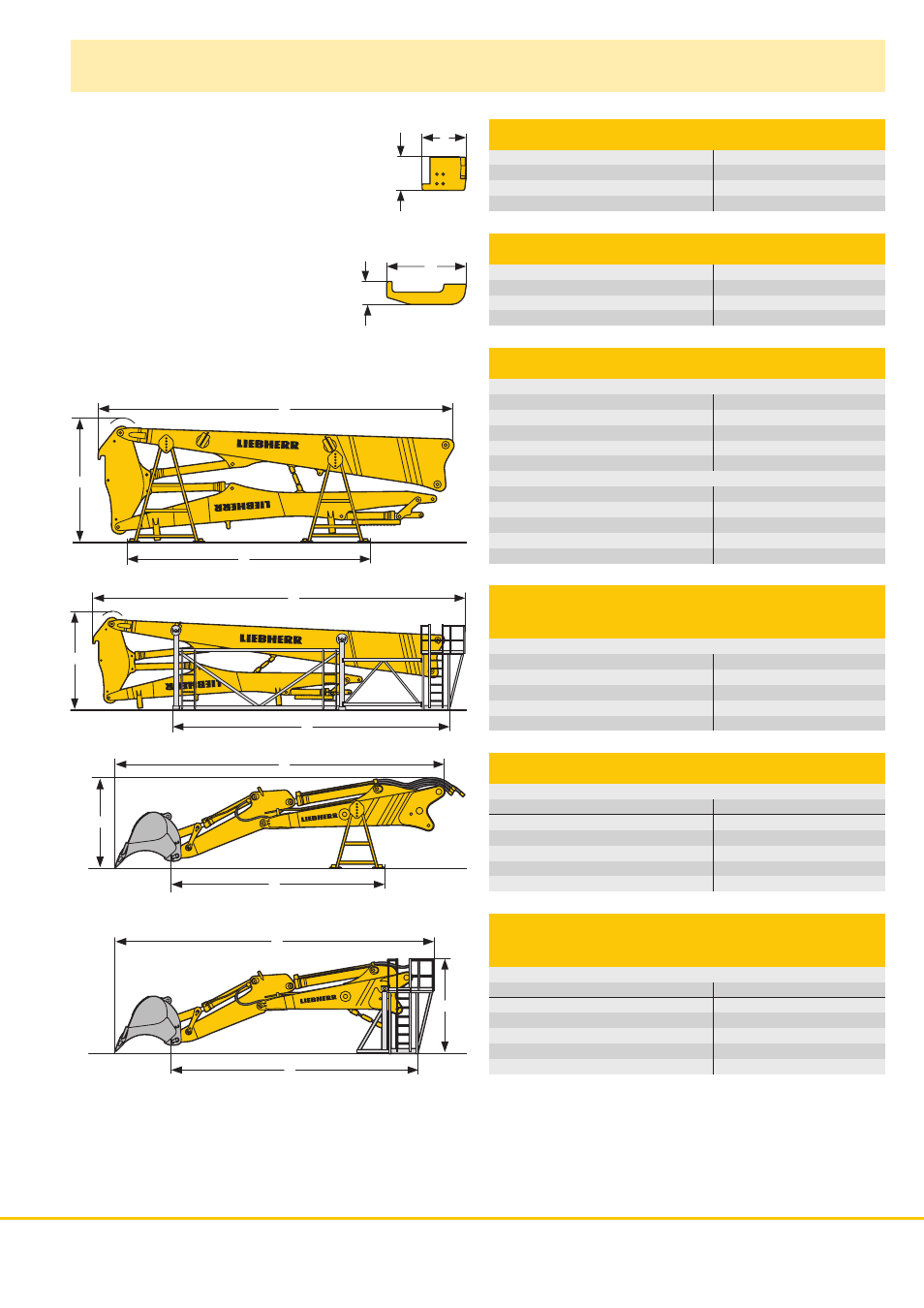

Dimensions and Weights
L
H
L
H
Counterweight
L Length mm 1050
H Height mm 800
Width mm 3000
Weight kg 7800
Additional Counterweight
L Length mm 1250
H Height mm 340
Width mm 3000
Weight kg 3000
Demolition Attachment with Support
Demolition Boom 11,30 m
L Length
mm 12140
H Height mm 3400
V mm 8300
Width mm 2400
Weight without working tool kg 12400
Demolition Boom 8,80 m
L Length
mm 9650
H Height mm 3400
V mm 6550
Width mm 2400
Weight without working tool kg 11400
Demolition Attachment
with Storage Rack with Catwalks
Demolition Boom 11,30 m
L Length
mm 12730
H Height mm 3400
V mm 9500
Width mm 2500
Weight without working tool kg 14400
Backhoe Attachment with Supports
Main Boom 4,60 m 5,50 m
Stick lengths m 2,35 2,90 2,35 2,90
L Length mm 8850 9300 9800 10300
H Height mm 3000 3000 2800 2800
V mm 7050 7650 6050 6650
Width mm 2400 2400 2400 2400
Weight without bucket kg 7850 8000 8350 8500
Backhoe Attachment
with Storage Rack with Catwalks
Main Boom 4,60 m 5,50 m
Stick lengths m 2,35 2,90 2,35 2,90
L Length mm 9400 9950 10300 10900
H Height mm 2950 2950 2950 2950
V mm 7200 7800 8100 8700
Width mm 2500 2500 2500 2500
Weight without bucket kg 8650 8800 9150 9300
L
H
V
L
H
V
L
H
V
L
H
V
