A 954 C HD Litronic High Rise 7
Industrial Attachment
with Industrial-Type Gooseneck Boom 12.50 m

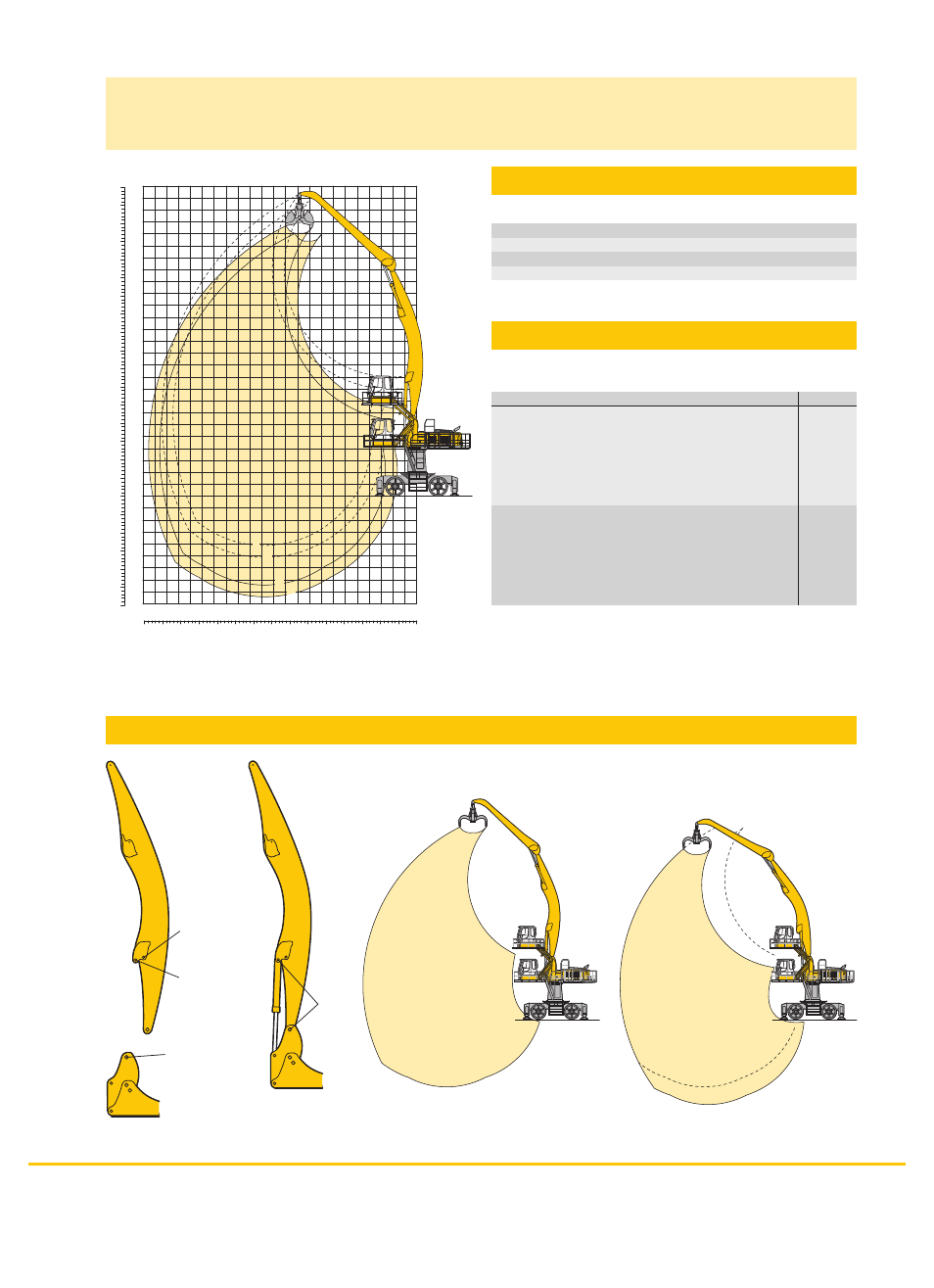

Attachment Envelope
Kinematic variant 3D
1 with industrial stick 9,00 m
2 with industrial stick 10,00 m
3 with industrial stick 9,00 m and grapple model 72 C
4 with industrial stick 10,00 m and grapple model 72 C
Operating Weight
Operating weight includes basic machine and industrial attachment
with:
Weight
Industrial-type gooseneck boom 12.50 m
Industrial stick 9.00 m
Grapple model 72 C/1.40 m
3
with 5 semi-closed tines
Turret 2.00 m
Adapter 1.20 m
Yellow Cab
88,020 kg
Industrial-type gooseneck boom 12.50 m
Industrial stick 10.00 m
Grapple model 72 C/1.40 m
3
with 5 semi-closed tines
Turret 2.00 m
Adapter 1.20 m
Yellow Cab
88,420 kg
Kinematic Variant 3D:
Increased lift capacities below ground level
and when working at large outreach Kinematic Variant 3C:
Altered range curve with additional reach
depth, e.g. for unloading from ships
3D
3C
3D
Hole D
Hole C
Hole 3
Version 3D
3D
Bohrung D
Bohrung C
Bohrung 3
Darstellung 3D
3C
Bohrung D
Bohrung C
Bohrung 3
Darstellung 3D
Perforazione D
Perforazione C
Perforazione 3
Immagine 3D
Brochage D
Brochage C
Brochage 3
Configuration 3D
Taladro D
Taladro C
Taladro 3
Versión 3D
Hole D
Hole C
Hole 3
Version 3D
VarioLift
Plus
: Variable boom mounting positions for optimized lift capacities
with a different working range
VarioLift
Plus
1
2
3
4
