A 954 C HD Litronic High Rise 3

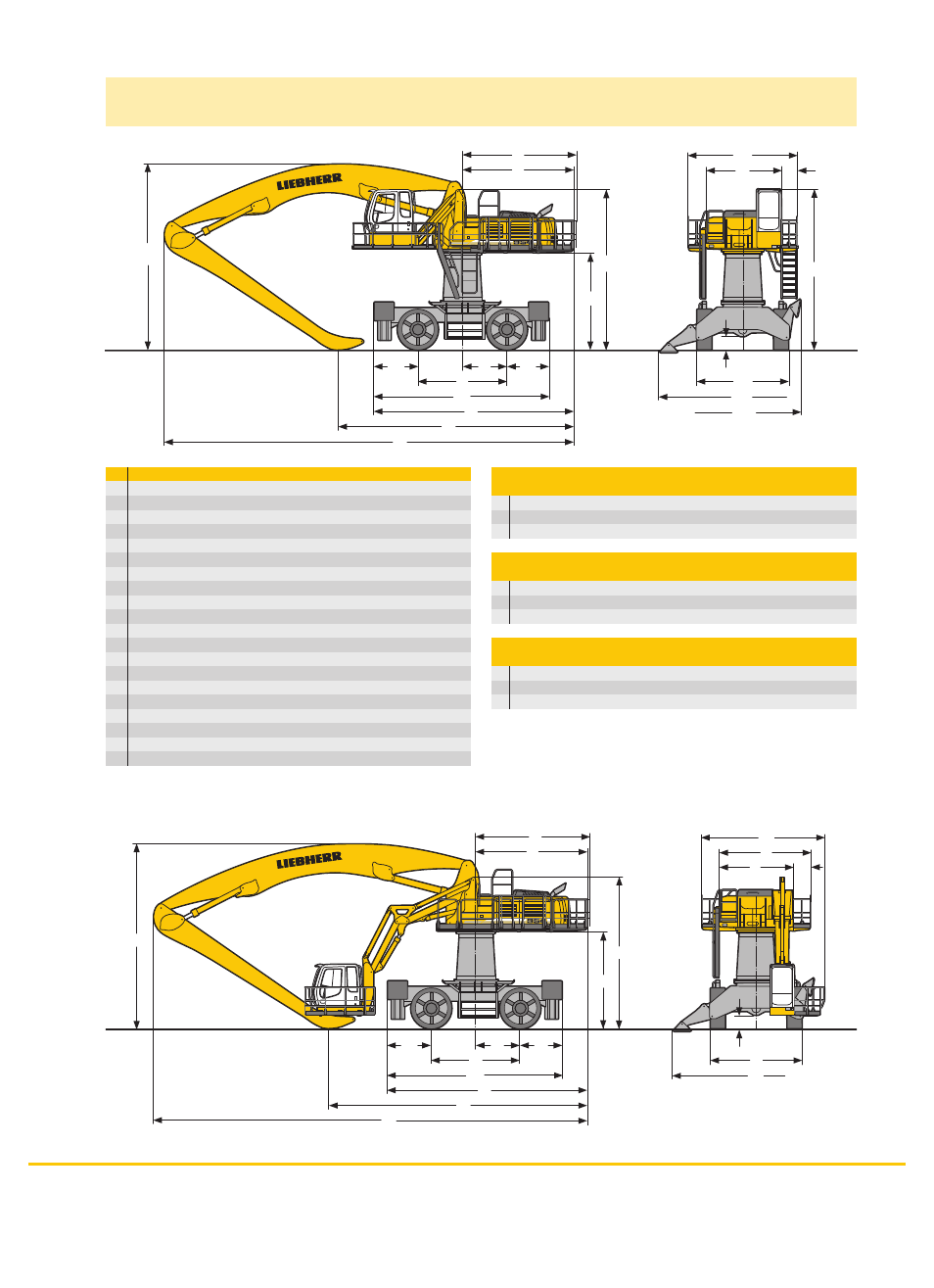

Dimensions
mm
A 3,060
A1 4,440
A2 660
A3 5,000
B 3,800
B1 6,750
B2 4,700
C 6,530
D 4,510
E 4,590
H with Yellow Cab 6,500
H with hydraulic double parallelogram 6,120
K 3,940
L 3,600
M 1,800
Q 540
T1 1,700
T4 1,775
U4 7,075
Z 8,045
E = Tail radius
Tires Ø 1,660 mm, width 600 mm
Industrial-Type Straight Boom 11.50 m
and Industrial Stick m 9.00 10.00
V mm 9,870 8,750
W mm 6,000 6,000
X mm 16,850 16,800
Industrial-Type Gooseneck Boom 12.50 m
and Industrial Stick m 9.00 10.00
V mm 10,460 9,350
W mm 7,600 7,600
X mm 17,700 17,650
Industrial-Type Gooseneck Boom 11.50 m
and Industrial Stick m 9.00 10.00
V mm 9,550 8,420
W mm 7,650 7,650
X mm 16,700 16,700
Dimensions are with attachment over steering axle
Z
L
T4
W
M T1
K
H
E A1
A A2
C
D
Q
B
B1
B2
U4
X
V
Z
L
T4
W
M T1
K
H
E A3
A1
A A2
D
Q
B
B1 U4
X
V
