4 A 954 C HD Litronic High Rise
Industrial Attachment
with Industrial-Type Straight Boom 11.50 m

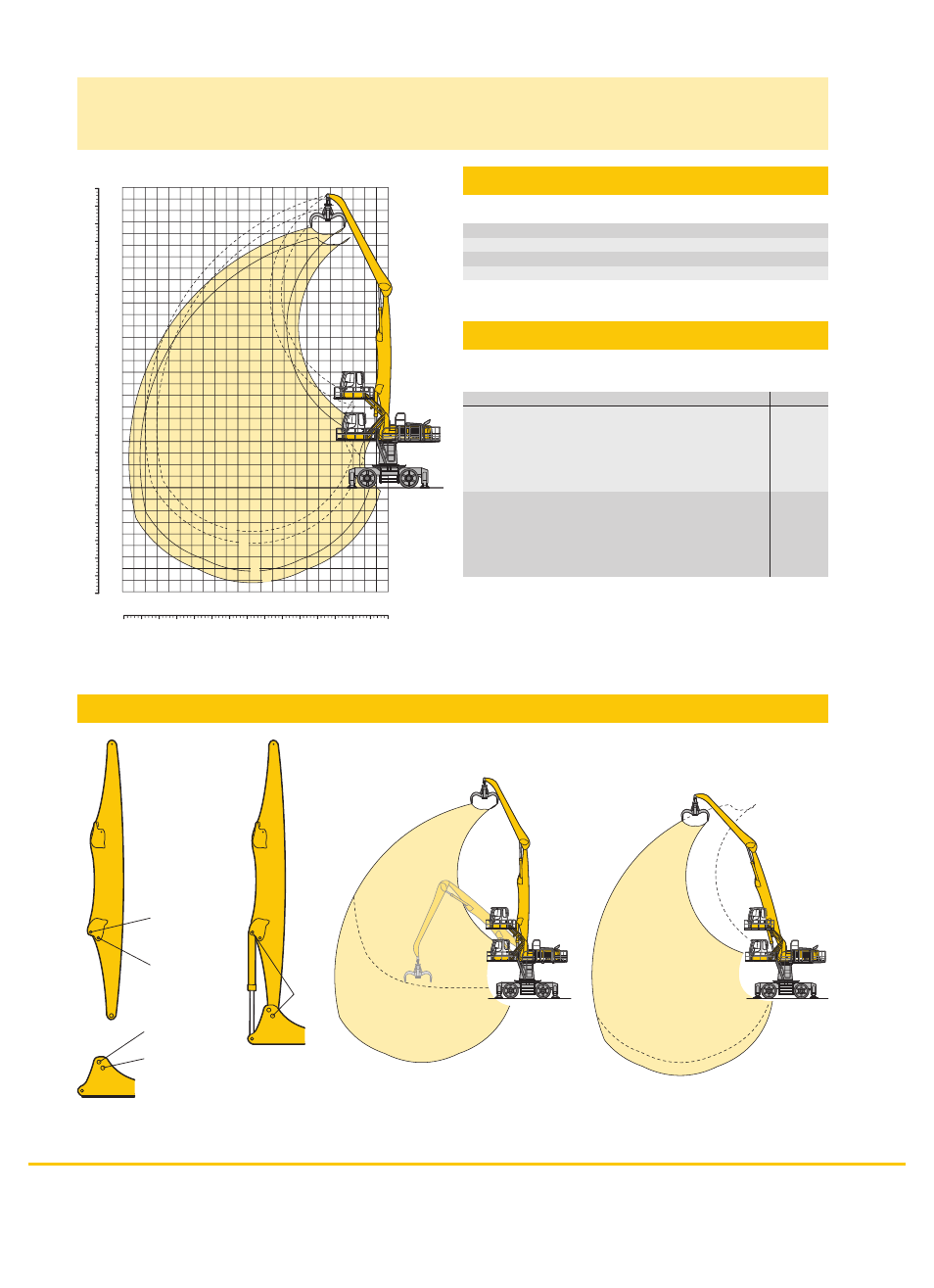

Attachment Envelope
Kinematic variants 2A/3B
1 with industrial stick 9,00 m
2 with industrial stick 10,00 m
3 with industrial stick 9,00 m and grapple model 72 C
4 with industrial stick 10,00 m and grapple model 72 C
Operating Weight
Operating weight includes basic machine and industrial attachment
with:
Weight
Industrial-type straight boom 11.50 m
Industrial stick 9.00 m
Grapple model 72 C/1.40 m
3
with 5 semi-closed tines
Turret 2.00 m
Yellow Cab
83,220 kg
Industrial-type straight boom 11.50 m
Industrial stick 10.00 m
Grapple model 72 C/1.40 m
3
with 5 semi-closed tines
Turret 2.00 m
Yellow Cab
83,620 kg
2A
3B
3A
2A
Hole B
Hole A
Hole 3
Hole 2
Version 2A
VarioLift
Plus
: Variable boom mounting positions for optimized lift capacities
with the same working range with a different working range
Kinematic Variant 2A:
Increased lift capacities above ground level
Kinematic Variant 3B:
Increased lift capacities below ground level
and when working at large outreach Kinematic Variant 3A:
Altered range curve with additional reach
depth, e.g. for unloading from ships
VarioLift
Plus
22 20 18 16 14 12 10 8 6 4 2 0
22
24
26
20
18
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
55
60
65
70
75
80
85
m ft
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
-20
-25
-30
55 50 45 40 75 70 65 60 35 30 25 20 15 10 5 0
m
ft
1
2
3
4
2A
3B
3A
2A
Bohrung B
Bohrung A
Bohrung 3
Bohrung 2
Darstellung 2A
3A
Bohrung B
Bohrung A
Bohrung 3
Bohrung 2
Darstellung 2A
Perforazione B
Perforazione A
Perforazione 3
Perforazione 2
Immagine 2A
Brochage B
Brochage A
Brochage 3
Brochage 2
Configuration 2A
Taladro B
Taladro A
Taladro 3
Taladro 2
Versión 2A
Hole B
Hole A
Hole 3
Hole 2
Version 2A
