LH 120 C Litronic Machine for Industrial Applications 3

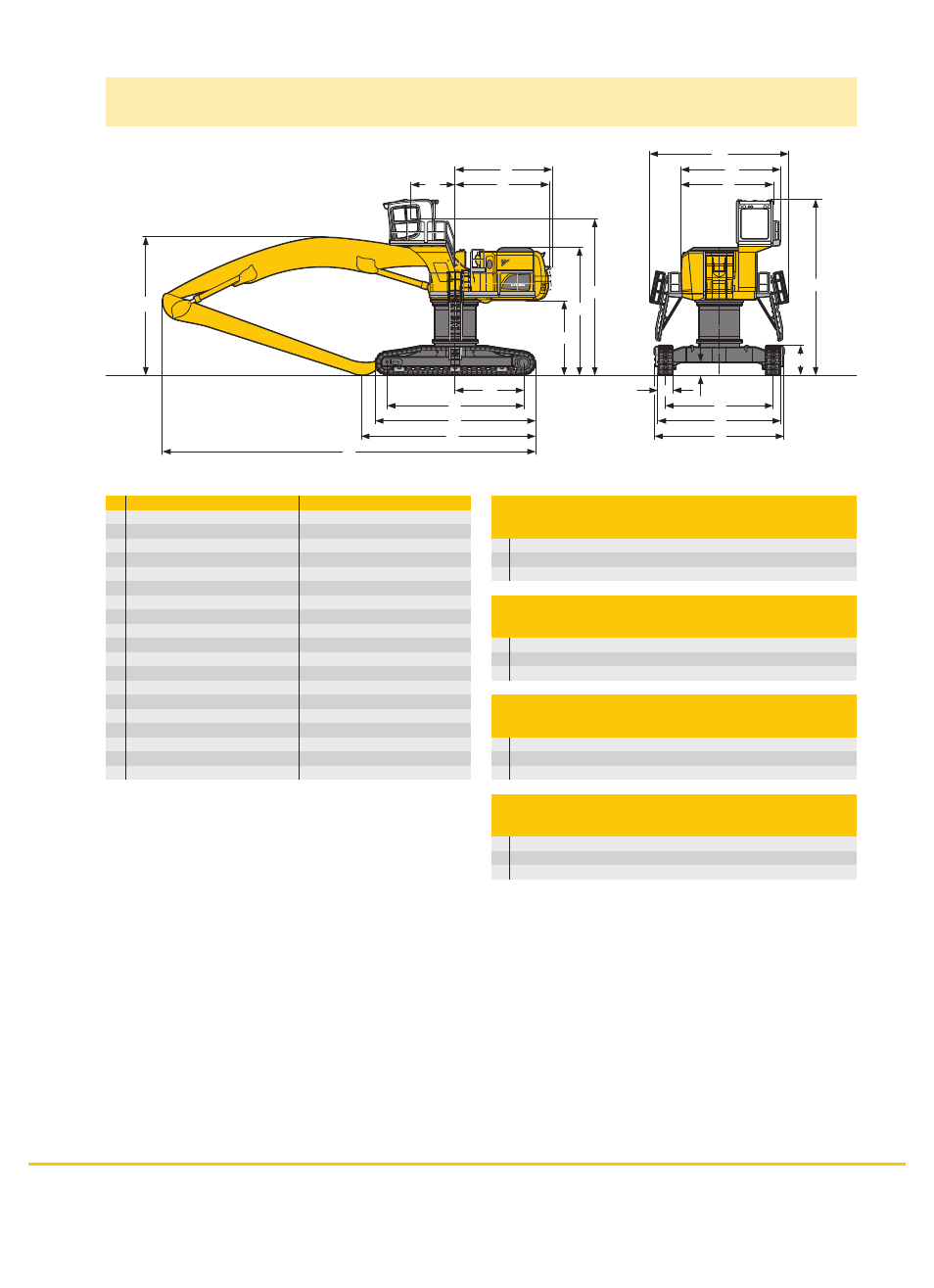

Dimensions
W
M
L
N
Q
F D
K
E
A
A1
A2
C
P
U
V
S
B
G
H
T
X
without turret mm with turret 2.00 m mm
A 4,815 4,815
A1 5,200 5,200
A2 6,180 7,310
B 6,450 6,450
C 7,290 9,290
D 4,970 4,970
E 5,020 5,020
F 2,340 2,340
G 6,860 6,860
H 4,725 6,725
K 1,970 3,970
L 7,270 7,270
M 3,635 3,635
N 750 750
P 1,545 1,545
Q 670 670
S 5,700 5,700
T 6,260 8,260
U 8,480 8,480
E = Tail radius
without turret
Industrial-Type Gooseneck Boom 15.00 m
and Industrial Stick m 12.00 13.50
V mm 9,550 8,050
W mm 5,500 5,500
X mm 20,800 20,800
without turret
Industrial-Type Gooseneck Boom 13.50 m
and Industrial Stick m 10.50 12.00
V mm 9,600 8,100
W mm 5,450 5,450
X mm 19,300 19,300
with turret 2,00 m
Industrial-Type Gooseneck Boom 15.00 m
and Industrial Stick m 12.00 13.50
V mm 9,950 8,350
W mm 7,500 7,500
X mm 20,850 20,850
with turret 2.00 m
Industrial-Type Gooseneck Boom 13.50 m
and Industrial Stick m 10.50 12.00
V mm 10,100 8,500
W mm 7,450 7,450
X mm 19,350 19,350
