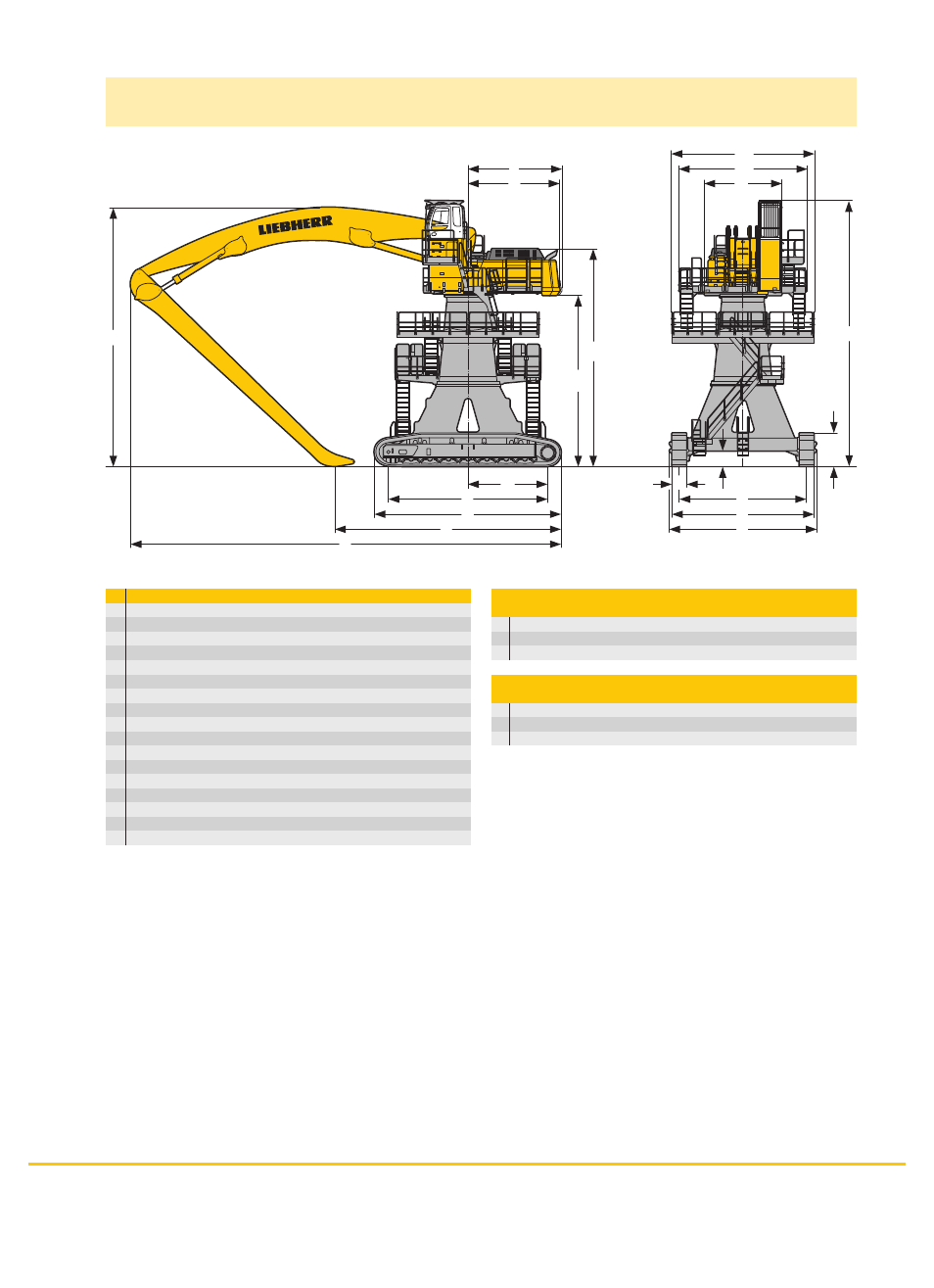

Dimensions
R 984 C Litronic High Rise
3
E
M
L
S
Q
N
B
G
P
C
H
W
K
D
A1
A2
A
U
V
X
mm
A
4080
A1
6575
A2
7305
B
7250
C
13560
D
4680
E
4795
G
7520
H
11105
K
8715
L
8130
M
4065
N
750
P
1710
Q
790
S
6500
U
9530
E = Tail radius
Industrial-Type Gooseneck Boom 14,50 m
and Industrial Stick 12,50 m
mm
V
12000
W
13500
X
20500
Industrial-Type Gooseneck Boom 16,50 m
and Industrial Stick 14,50 m
mm
V
11700
W
13500
X
22500
