R 9800 19
Backhoe Attachment
with Gooseneck Boom 11,75 m/38’6”
m
ft
60
50
40
30
20
10
0
-10
-20
-30
ft
m
20
18
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
-10
70 60 50 40 30 20 10 0
0 2 4 6 8 10 12 14 16 18 20 22
R4315

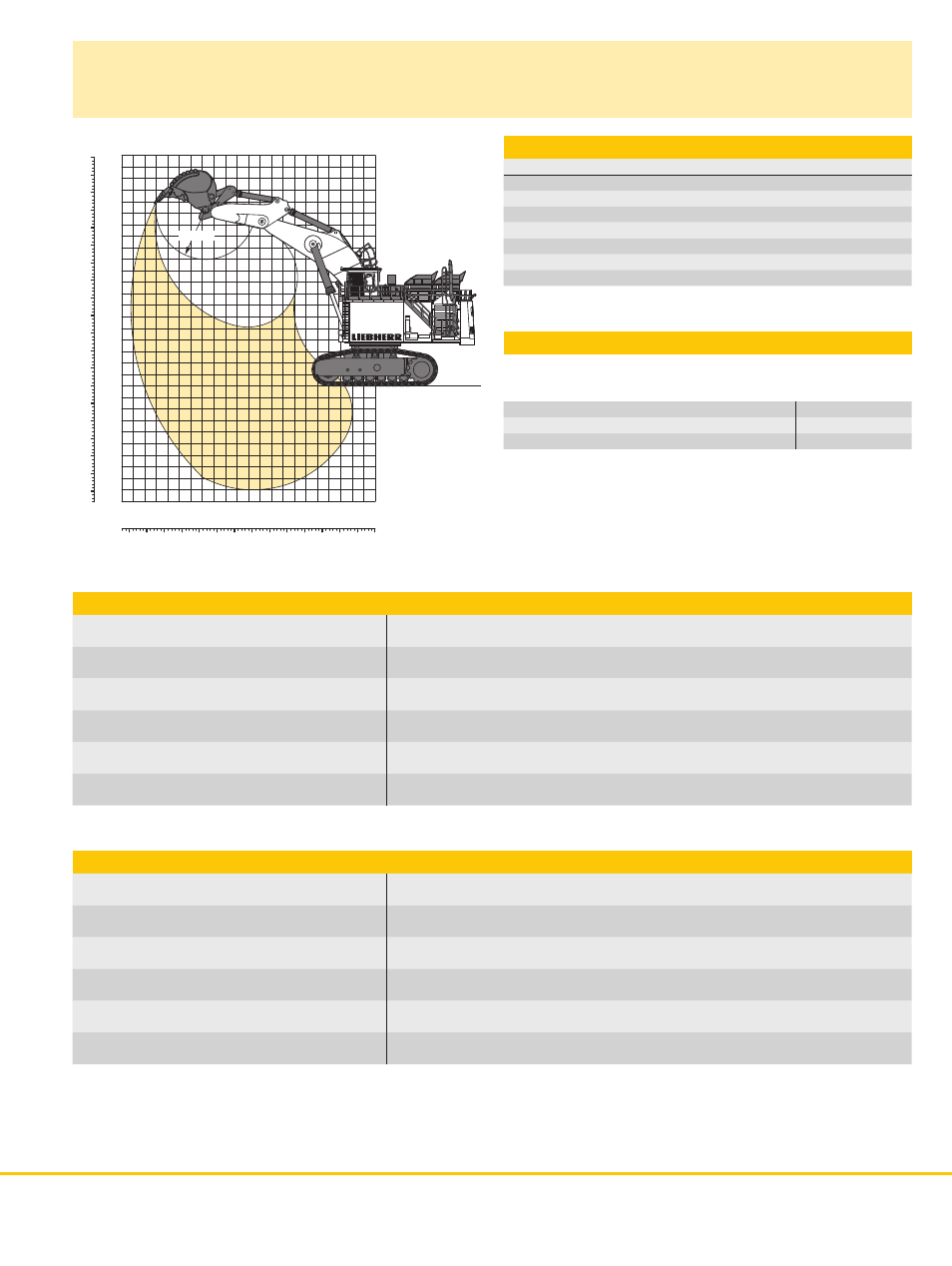

Digging Envelope
Stick length 5,00 m/16’ 4”
Max. reach at ground level 20,10 m/65’11”
Max. teeth height 16,20 m/53’ 1”
Max. dump height 10,90 m/35’ 9”
Max. digging depth 9,00 m/29’ 6”
Max. digging force (ISO 6015) 1.760 kN/395,664 lbf
Max. breakout force (ISO 6015) 1.980 kN/445,121 lbf
Operating Weight and Ground Pressure
The operating weight includes the basic machine with standard
backhoe attachment and a 42,00 m
3 /54.9 yd 3 bucket.
Pad width mm/ft in 1.630/5’4”
Weight kg/lb 800.000/1,763,700
Ground pressure *
kg/cm 2 / psi 2,71/38.45
* according to ISO 16754
Buckets for Machine in Standard Configuration
For materials classe
according to VOB, Section C, DIN 18300
5 – 6 5 – 6 5 – 6 5 – 6
Typical operation
according to VOB, Section C, DIN 18300
HD HD HD HD
Capacity ISO 7451 m 3 40,00 42,00 45,00 47,50
yd 3 52.3 54.9 58.9 62.1
Suitable for material up to a specific weight of t/m 3 1,9 1,8 1,7 1,6
lb/yd 3 3,204 3,035 2,867 2,698
Cutting width mm 4.800 4.800 4.800 4.800
ft in 15’8” 15’8” 15’8” 15’8”
Weight kg 45.000 45.150 42.550 43.650
lb 99,208 99,539 93,807 96,232
Buckets for Machine with High Performance Option
For materials classe
according to VOB, Section C, DIN 18300
5 – 6 5 – 6 5 – 6 5 – 6
Typical operation
according to VOB, Section C, DIN 18300
HD HD HD HD
Capacity ISO 7451 m 3 45,00 47,50 50,00 52,00
yd 3 58.9 62.1 65.4 68.0
Suitable for material up to a specific weight of t/m 3 1,9 1,8 1,7 1,6
lb/yd 3 3,204 3,035 2,867 2,698
Cutting width mm 4.800 4.800 4.800 4.800
ft in 15’8” 15’8” 15’8” 15’8”
Weight kg 39.100 39.630 40.300 41.000
lb 86,201 87,369 88,846 90,389
HD: Heavy-duty bucket
Other buckets for other densities and/or material class on request
