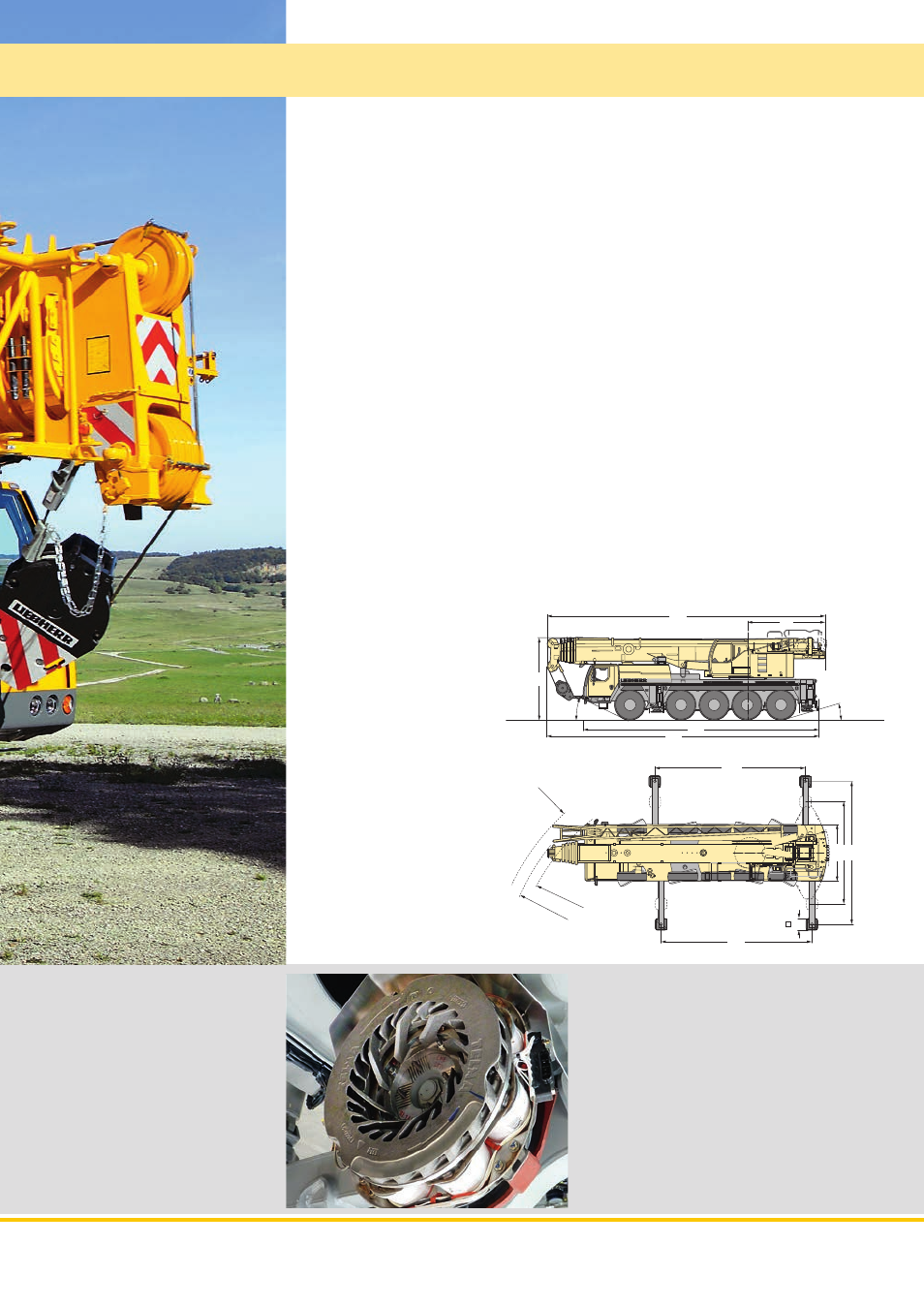

LTM 1100-5. 2
5
4000
12 t 12 t 12 t 12 t 12 t 445/95 R 25
(16.00 R 25)
13340
S2471.01
16°
24°
550
7386
2750 5000
R = 10175
R = 10690
R = 11270
R = 3972
3840
13641
7000
R = 3840
LTM 1100-5.2 SA/DS
(10.03.2010) 11.09.2012
S2471.01
9881 913 08
7361
11599
Most modern chassis and drive technology
Hydro-pneumatic suspension
“Niveaumatik”
• Maintenance-free suspension cylin-
ders
• Large dimensions to cope with high
axle loads
• Suspension travel +150/-100 mm
• High lateral stability when cornering
• Choice of driving states using fixed
programmes
Telma eddy current brake (option)
• No wear, low maintenance system
• Increased safety due to fast activation in mil-
liseconds
• Reduction of operation costs
• High comfort due to braking absolutely with-
out jolts
• Environmentally friendly brake system, no
emission and respirable dust
High mobility and efficiency
A powerful 6-cylinder Liebherr turbo-diesel engine with 370 kW/503 HP ensures
swift driving performance. The automatic 12-speed power shift system ZF-AS-
TRONIC with intarder provides a high level of cost effectiveness and excellent
comfort.
• Reduced fuel consumption due to the large number of gears and the high
efficiency of the dry clutch
• Best manoeuvrability and minimum crawling speed due to 2-speed distribu-
tion gearbox
• Wear free braking with ZF-intarder
• Telma eddy current brake optional, wear free and comfortable
Compact, mobile and weight-optimised
Thanks to its extremely compact design, the LTM 1100-5.2 can also operate on
the smallest of construction sites.
• Chassis length only 11.60 m
• Smallest turning radius only 10.18 m
• Vehicle width only 2.75 m, even with tyres 445/95 R 25 (16.00 R 25)
• Tail swing radius only 3.84 m
