LTM 1100-5. 2
11

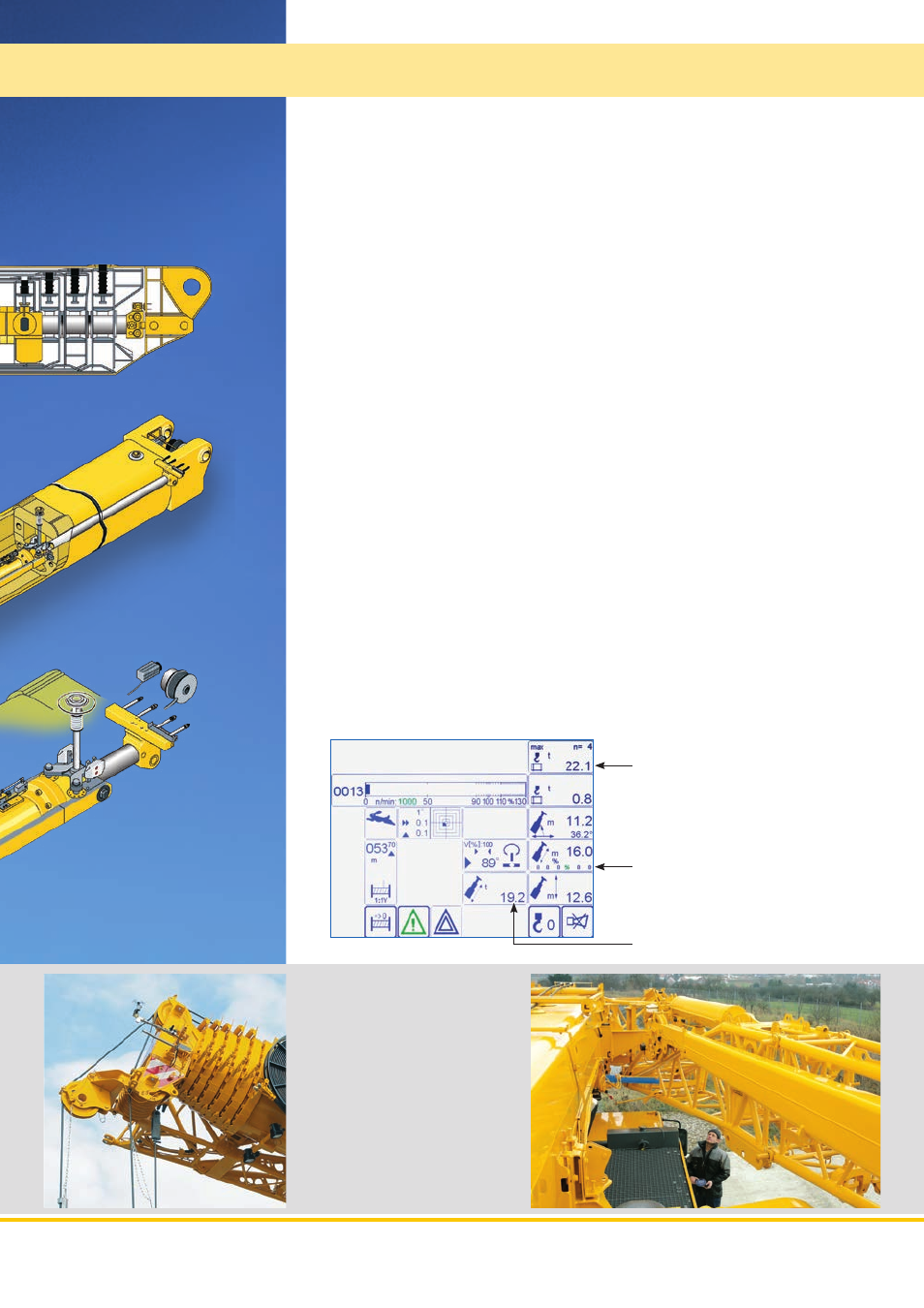

High-capacity, long telescopic boom and
functional lattice extensions
The telescopic boom comprises of the base section and 5 telescopic sections,
which can be comfortably and automatically extended and pinned to the re-
quested lengths by the thousand fold proven single cylinder telescoping system
TELEMATIK.
• 52 m long telescopic boom
• 10.8 m – 19 m long double swing away jib, attachable at 0°, 20° and 40°
• Hydraulic adjustment of the swing away jib under full load from 0° – 40°
(option), interpolation of the load charts
• Hydraulic assembly assistance for attaching of the swing away jib with the BTT
• 2 sections 7 m each for extending the telescopic boom for operation with
swing away jib
High lifting capacities both with full and partial
counterweight offer a wide operational range
• High lateral stability due to the oval boom profile
• Optimised load charts due to multitude of extension versions
• Load 11.5 t at 52 m long telescopic boom
High capacities at unpinned telescopic lengths
• High telescopable loads due to interpolation
• Separate load charts for holding the loads at unpinned telescopic lengths
• Display at LICCON-monitor
High lifting capacities and flexible boom system
Boom nose, sidewise folding
Hydraulic assembly support
for attaching the
swing away jib by BTT
Holding capacity
Unpinned telescope length
Telescopable load
