Liebherr LR 1160 - Manual (Page 24)

24 LR 1160 ANSI/ASME B 30.5

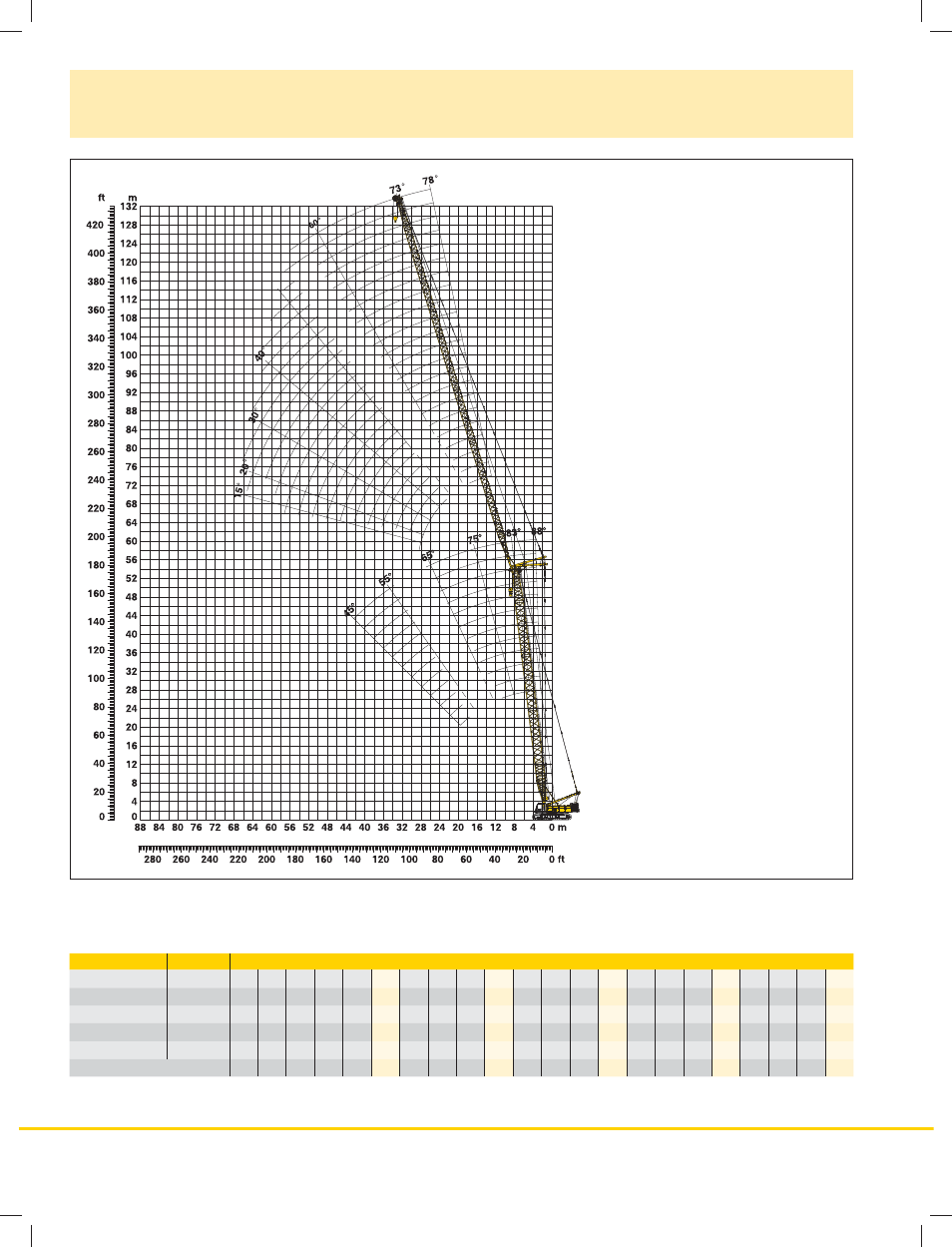

Working range - luffing jib
(No. 1713.xx)
78° – 15°
Main boom 88° - 45°
Boom configuration for main boom lengths (84 ft - 191 ft)
- see table 1 on page 12
Jib configuration for jib lengths (66 ft - 272 ft)
Length* Amount of jib extensions
Luffing jib foot 23 ft 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Luffing jib insert 10 ft 1 1 1 1 1 1 1 1 1 1 1
Luffing jib insert 20 ft 1 1 1 1 1 1 1 1 1 1 1 1
Luffing jib insert 40 ft 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5
Luffing jib head 23 ft 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Luffing jib length (ft) 66 76 85 95 105 115 125 134 144 154 164 174 184 194 203 213 223 233 243 253 262 272
262 ft
272 ft
253 ft
243 ft
233 ft
223 ft
213 ft
203 ft
194 ft
184 ft
174 ft
164 ft
154 ft
144 ft
134 ft
125 ft
115 ft
105 ft
95 ft
85 ft
76 ft
66 ft
191 ft
181 ft
171 ft
161 ft
152 ft
142 ft
132 ft
123 ft
114 ft
104 ft
94 ft
84 ft
*Actual lengths of boom sections are metric (e.g. 3 m, 6 m, 7 m, 12 m). The figures shown above are approximate conversions to feet.
