16 LR 1160 ANSI/ASME B 30.5

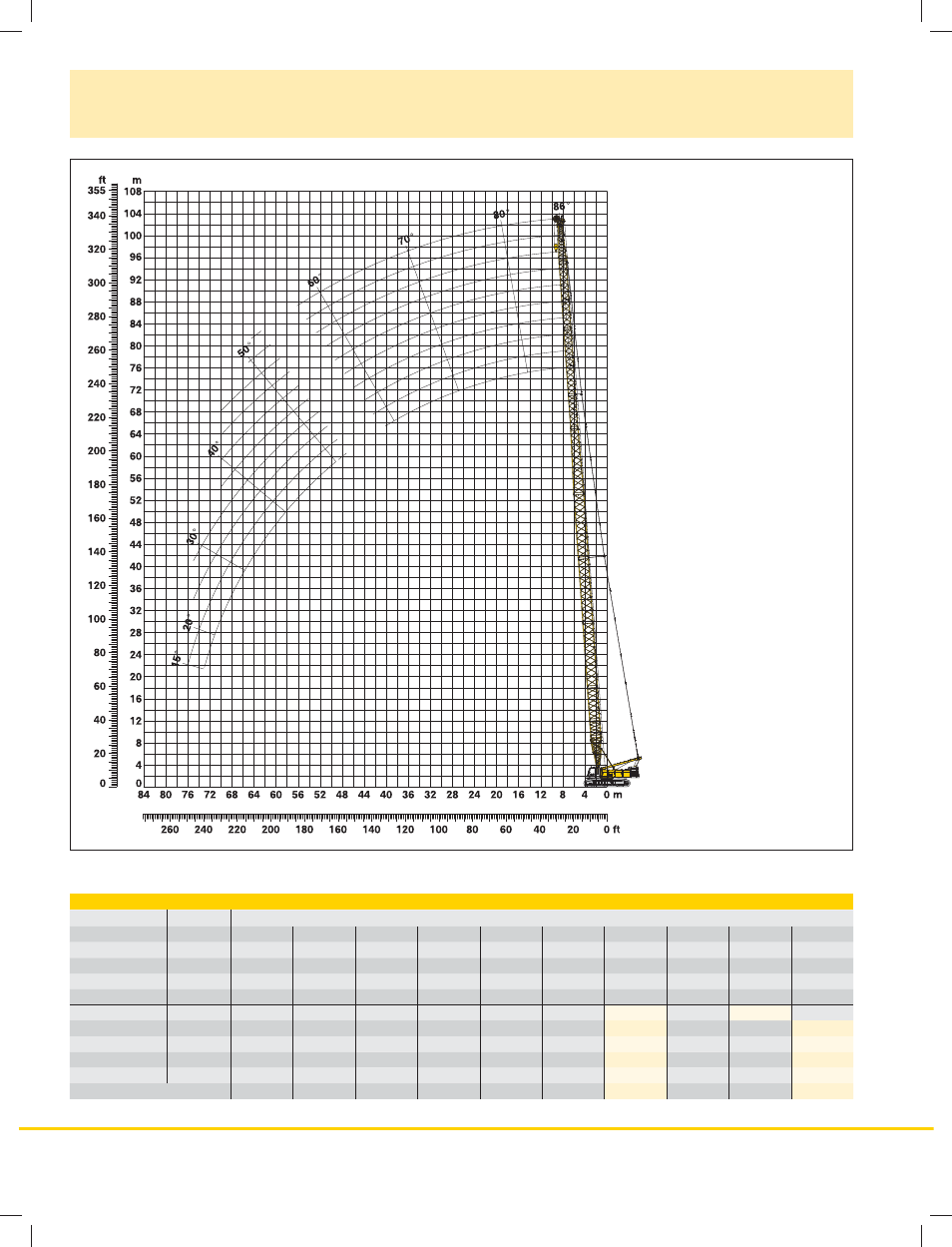

L-boom high reach
(No. 2018/1713.xx)
243 ft – 332 ft
Working range 86° – 15°
332 ft
322 ft
312 ft
302 ft
292 ft
282 ft
273 ft
263 ft
253 ft
243 ft
L-boom configuration with 168 ft main boom
(No. 2018.xx/1713.xx)
Configuration for L-boom lengths (243 ft - 332 ft)
Length* Amount of boom and luffing jib extensions
Boom foot 23 ft 1 1 1 1 1 1 1 1 1 1
Boom insert 10 ft 1 1 1 1 1 1 1 1 1 1
Boom insert 20 ft 1 1 1 1 1 1 1 1 1 1
Boom insert 38 ft 3 3 3 3 3 3 3 3 3 3
Tapered 40 ft 1 1 1 1 1 1 1 1 1 1
Luffing insert 10 ft 1 1 1 1 1
Luffing insert 20 ft 1 1 1 1 1
Luffing insert 40 ft 1 1 1 1 2 2 2
Luffing insert 3 ft 1 1 1 1 1 1 1 1 1 1
Luffing jib head 23 ft 1 1 1 1 1 1 1 1 1 1
Max. L-boom length (ft) 243 253 263 273 282 292 302 312 322 332
*Actual lengths of boom sections are metric (e.g. 1 m, 3 m, 6 m, 7 m, 11.7 m, 12 m). The figures shown above are approximate conversions to feet.
