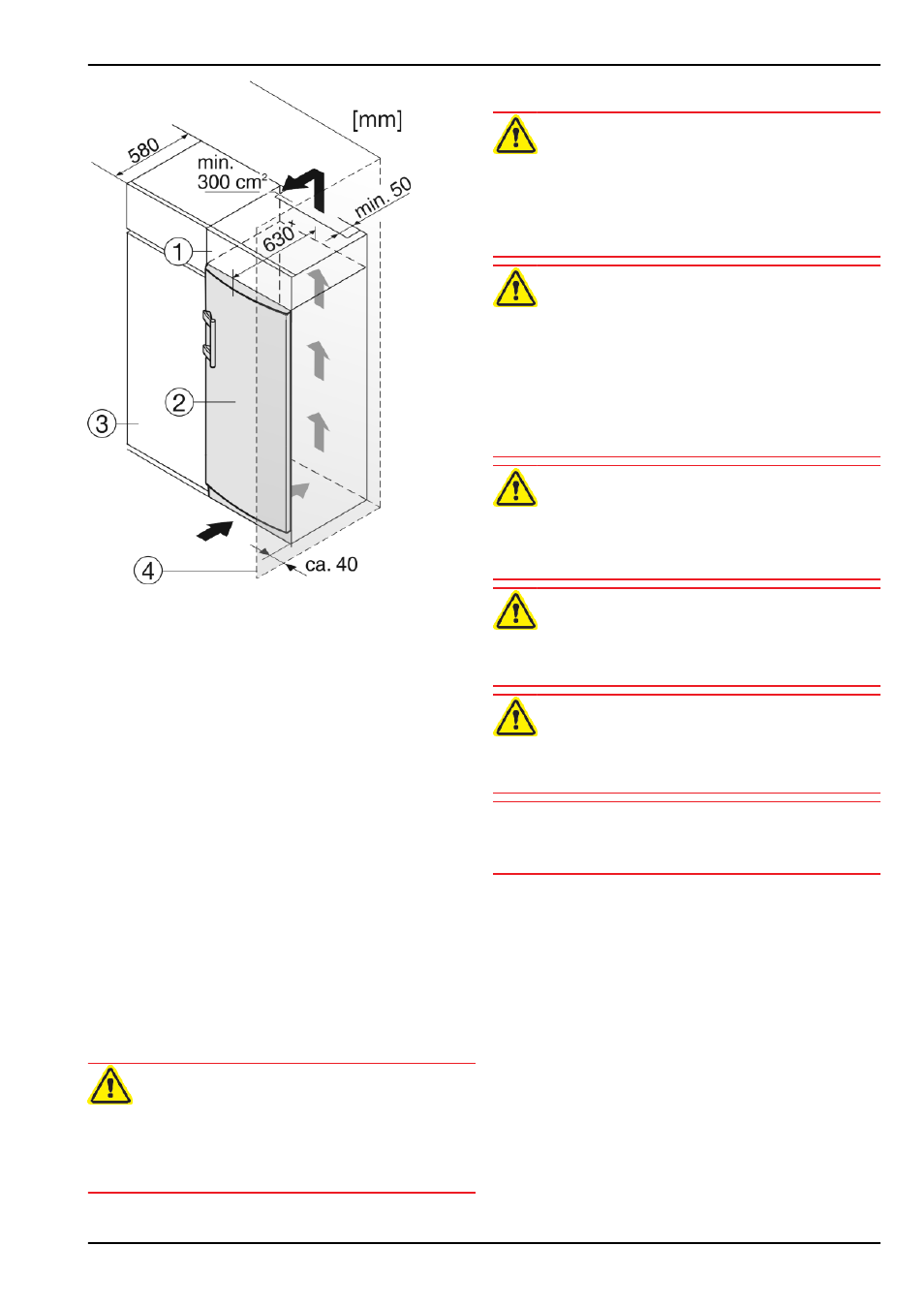

Fig. 10
(1) Stack cabinet (3) Kitchen cabinet
(2) Appliance (4) Wall
x For appliances supplied with wall spacers, the measurement
increases by 35 mm (see 4.4) .
The appliance can be inserted into a row of kitchen units. To
match the appliance Fig. 10 (2) to the height of the row of units,
a suitable stack cabinet Fig. 10 (1) can be fitted above the
appliance.
When installing with kitchen units (max. depth 580 mm), the
appliance can be positioned directly next to the kitchen cabinet
Fig. 10 (3) . The appliance will project by 34 mm x at the sides
and 50 mm x in the centre of the appliance in relation to the
kitchen cabinet front.
Important for the ventilation:
- At the back of the stack cabinet there has to be a ventilation
duct of at least 50 mm depth throughout the width of the
stack cabinet.
- The ventilation space under the ceiling has to be at least
300 cm 2 .
- the larger the ventilation space, the more energy-saving the
appliance is in operation.
If the appliance is installed with the hinges next to a wall
Fig. 10 (4) , the distance between appliance and wall has to be
at least 40 mm. This corresponds to the projection of the
handle when the door is open.
4.3 Transporting the appliance
CAUTION
Risk of injury and danger of damage as a result of incorrect
transport!
u Transport the appliance in a packed condition.
u Transport the appliance upright.
u Do not transport the appliance without assistance.
4.4 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u The appliance is designed for use in enclosed areas. Do not
operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Risk of fire due to short circuit!
If the mains cable/connector of the appliance or of another
appliance touch the rear of the appliance, the mains cable/
connector may be damaged by the appliance vibrations,
leading to a short circuit.
u Stand the appliance so that it is not touched by connectors
or main cables.
u Do not plug the appliance or any others into sockets located
near the rear of the appliance.
WARNING
Fire hazard due to refrigerant!
The refrigerant R 600a is environmentally friendly but flam-
mable. Escaping refrigerant may ignite.
u Do not damage the piping of the refrigeration circuit.
WARNING
Fire hazard and danger of damage!
u Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Blocked ventilation openings pose a risk of fire and damage!
u Always keep the ventilation openings clear. Always ensure
that the appliance is properly ventilated!
NOTICE
Risk of damage due to condensate!
u Do not install the appliance directly alongside a further
refrigerator/freezer.
q In the event that the appliance is damaged, contact the
supplier immediately before connecting to the mains.
q The floor at the site must be flat and level.
q
Do not install the appliance in a location where it is exposed
to direct radiation of the sun, next to a cooker, heater and
similar.
q
The ideal installation site is a dry, well ventilated room.
q Always stand the appliance backed directly to the wall using
the enclosed wall spacers (see below).
q The appliance may be moved only when it is empty.
q Do not install the appliance without assistance.
q Standard EN 378 specifies that the room in which you install
your appliance must have a volume of 1 m 2 per 8 g of R
600a refrigerant used in the appliance. If the room in which
the appliance is installed is too small, a flammable gas-air
mixture may form in the event of a leakage in the refrigera-
tion circuit. The quantity of refrigerant used in your appliance
is indicated on the type plate on the inside of the appliance.
u Detach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because other-
wise there will be vibratory noise!
