LR 1200 ANSI/ASME B 30.5 5

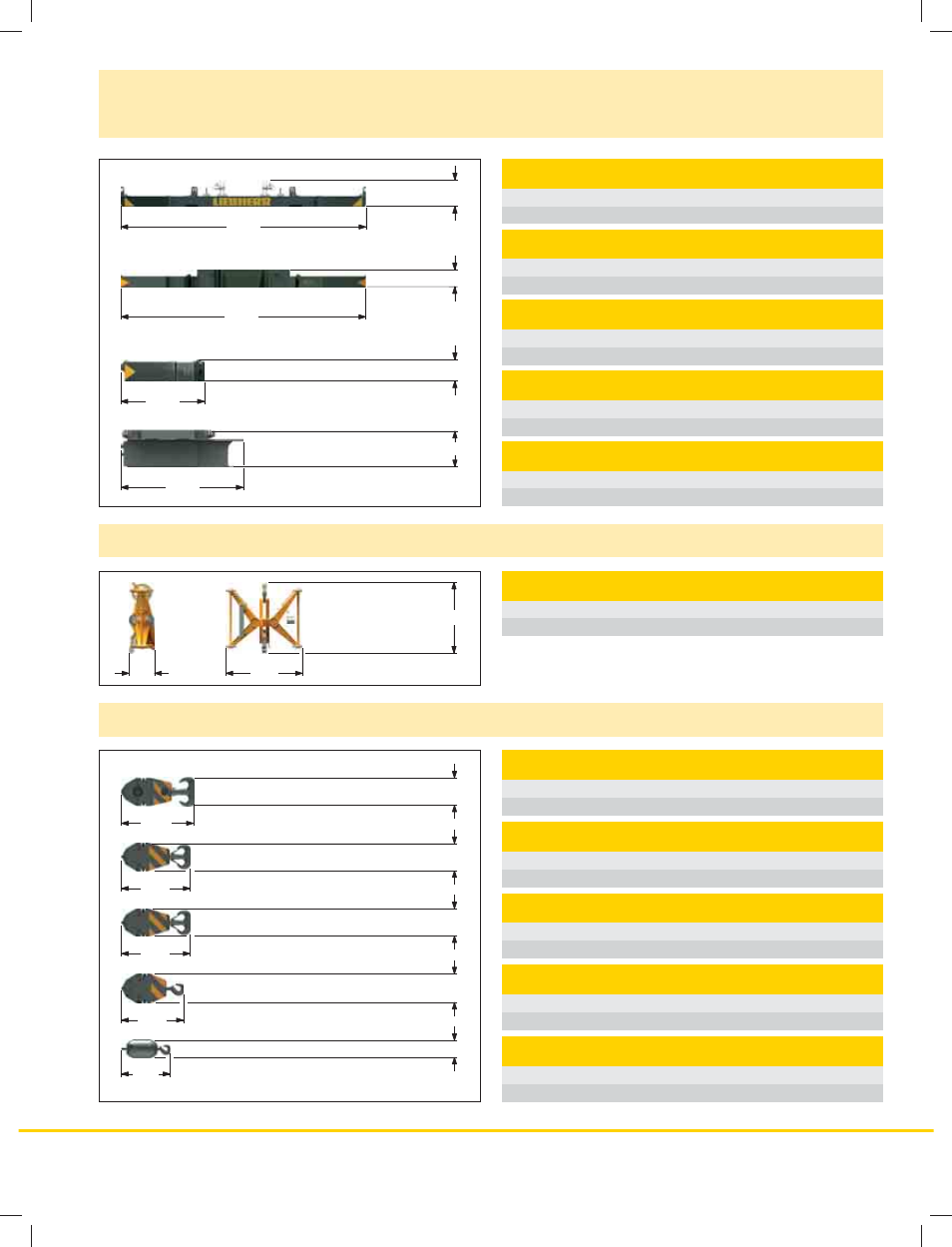

Transport dimensions and weights
Counterweight
19´10´´
25.2´´
18.9´´
6´3´´
9´2´´
32.5´´
19´
15.8´´
6´11´´
30.3´´
5´11´´
30.3´´
31.5´´
5´3´´
3´7´´
15.7´´
7´4´´
30.3´´
Hooks
Mid fall (option)
29.5´´ 6´7´´
6´9´´
Mid fall section
(No. 1916.xx)
19.7 inch
Width 29.5 inch
Weight 1,580 lbs
551,200 lbs hook block - 11 sheaves
Width 40.6 inch 49.2 inch
Weight 5,070 lbs 7,055 lbs
352,800 lbs hook block - 7 sheaves
Width 25.2 inch 29.9 inch 34.6 inch
Weight 3.307 lbs 4,960 lbs 6,614 lbs
220,500 lbs hook block - 5 sheaves
Width 21.3 inch 26.4 inch 30.3 inch
Weight 2,866 lbs 3,970 lbs 5,070 lbs
88,200 lbs hook block - 1 sheave
Width 11.8 inch 15.7 inch 19.7 inch
Weight 1,545 lbs 2,425 lbs 3,310 kg
27,600 lbs single hook
Width 15.7 inch
Weight 1,325 lbs
Counterweight 1 x
Width 5´5´´
Weight 26,455 lbs
Counterweight 1 x
Width 5´5´´ mm
Weight 22,046 lbs
Counterweight 12 x
Width 4´6´´
Weight 11,023 lbs
Carbody counterweight 2 x
Width 11´
Weight 21,605 lbs
Carbody counterweight 2 x
Width 11´
Weight 18,300 lbs
