4 LR 1200 ANSI/ASME B 30.5

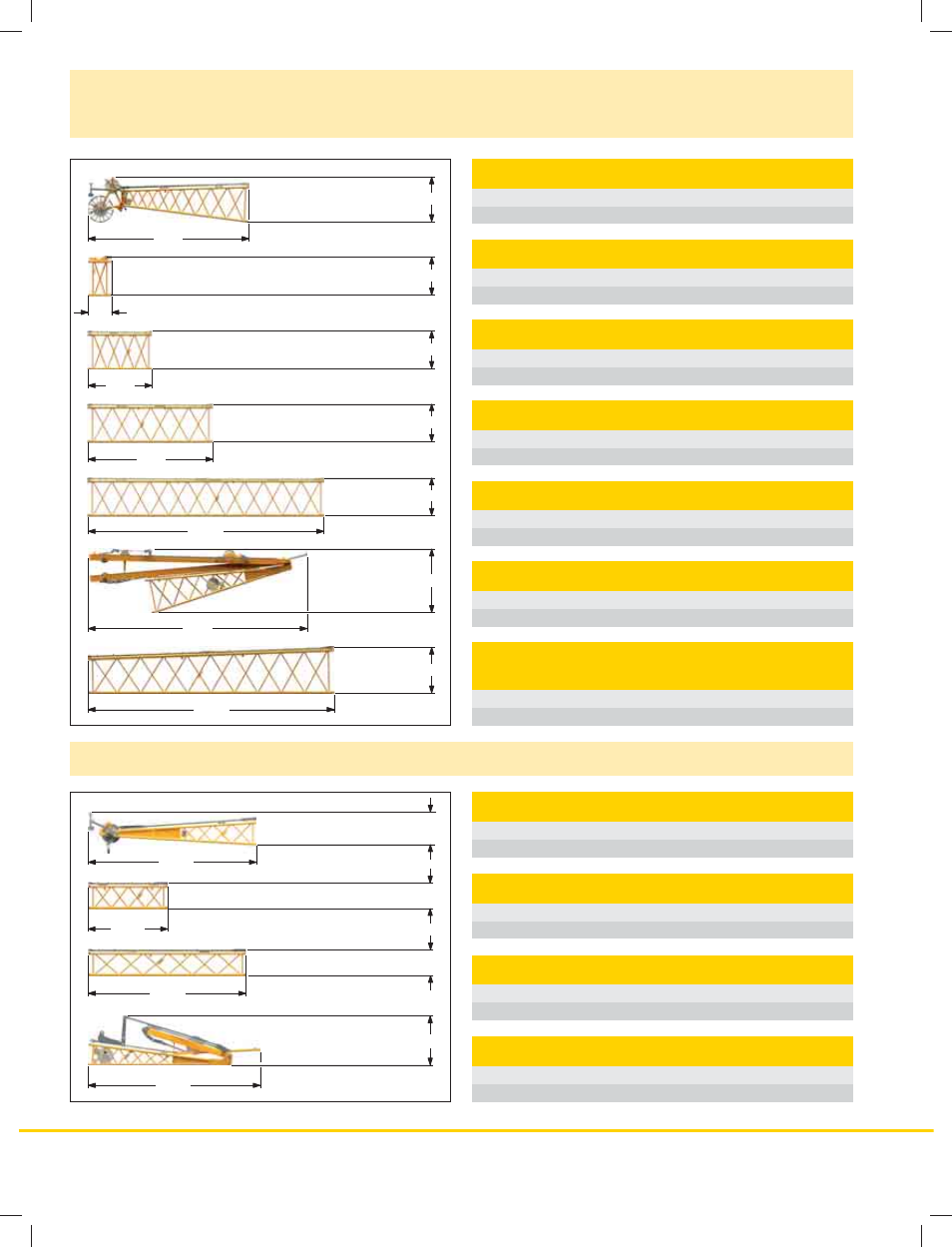

Transport dimensions and weights
Luffing jib
(No. 1916.xx)
*) Including pendant straps
6´1´´
21´9´´
21´4´´
40.1´´
10´3´´
40.1´´
20´1´´
40.1´´
25´5´´
7´3´´
45.3´´
6´5´´
10´4´´
6´1´´
20´2´´
6´1´´
39´10´´
6´1´´
35´7´´
10´4´´
7´7´´
40´1´´
Fixed jib
(No. 1008.xx)
Luffing jib head
(No. 1916.21)
Width 6´7´´
Weight* 3,420 lbs
L-boom
section tapered
(No. 2320/1916.20)
40 ft
Width 8´
Weight* 3,750 lbs
L-boom jib section
(No. 1916.22)
39.4 inch
Width 6´7´´
Weight* 1,015 lbs
Luffing jib section
(No. 1916.18)
10 ft
Width 6´7´´
Weight* 1.050 lbs
Luffing jib section
(No. 1916.18)
20 ft
Width 6´7´´
Weight* 1,525 lbs
Luffing jib foot with A-frames
(No. 1916.22)
Width 6´7´´
Weight* 13,890 lbs
Luffing jib section
(No. 1916.18)
40 ft
Width 6´7´´
Weight* 2,755 lbs
Fixed jib head
(No. 1008.20)
Width 43 inch
Weight* 2,030 lbs
Fixed jib section
(No. 1008.17)
10 ft
Width 43 inch
Weight* 660 lbs
Fixed jib foot with A-frame
(No. 1008.20)
Width 7´3´´
Weight* 4,300 lbs
Fixed jib section
(No. 1008.17)
20 ft
Width 43 inch
Weight* 1,005 lbs
