6 HS 895 HD
Dragline equipment
121,500 lbs counterweight

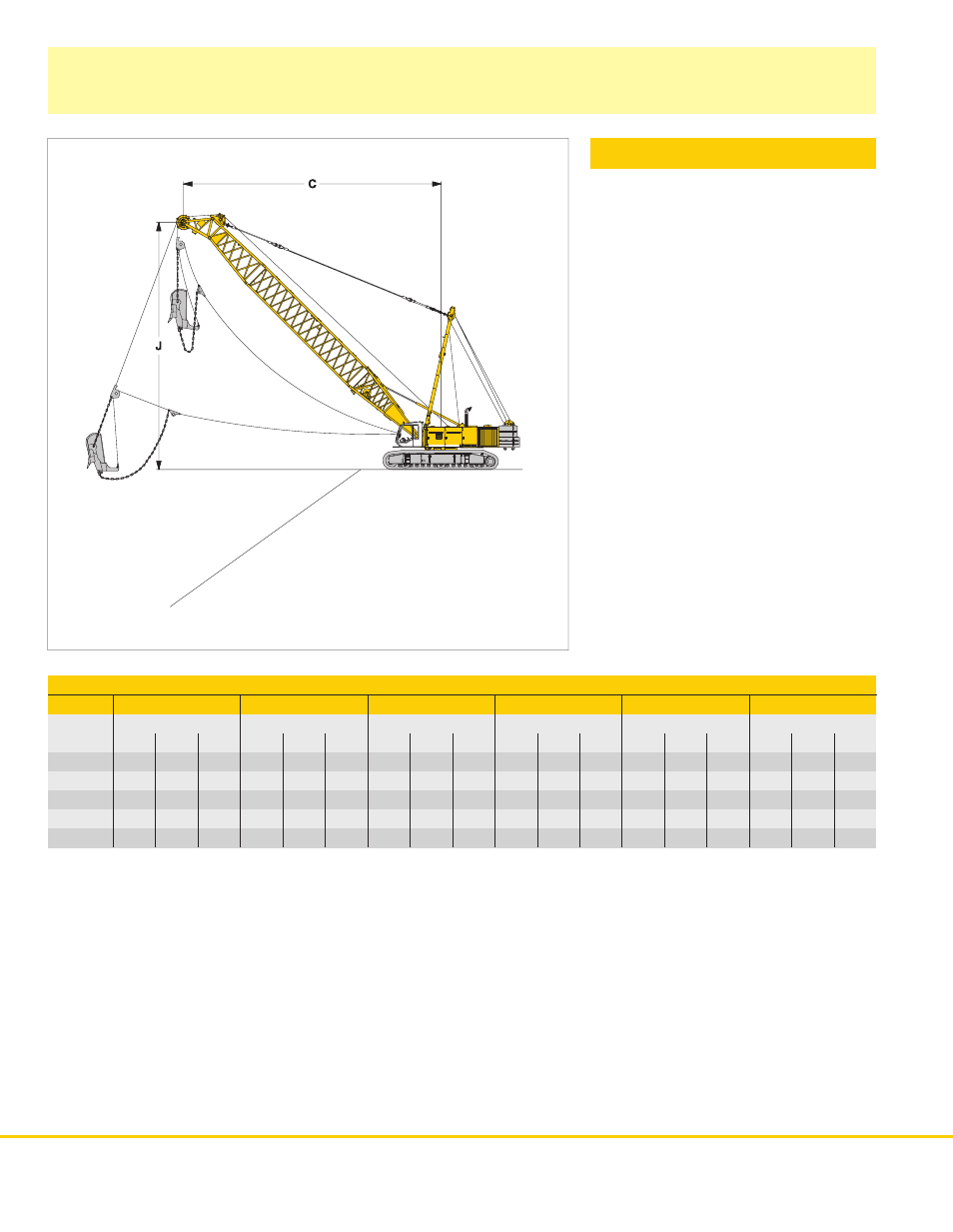

Working diagram
C = Radius / dumping radius
J = Height of boom head sheave centre above
ground level
С С С
С С
С
С
Capacities in 1000 lbs for boom lengths (84 ft – 181 ft) counterweight 121,500 lbs
84 ft 104 ft 123 ft 142 ft 161 ft 181 ft
C J C J C J C J C J C J
α ft ft lbs ft ft lbs ft ft lbs ft ft lbs ft ft lbs ft ft lbs
45 69.2 64.6 64,4 83.0 78.7 49,4 96.1 91.9 39,9 110.2 106.0 31,5 123.4 119.1 25,6 137.1 132.9 20,3
40 73.8 59.7 58,6 88.9 72.2 44,7 103.3 84.3 35,9 118.4 96.8 28,2 132.5 108.9 22,5 147.6 121.7 17,2
35 78.1 54.1 54,2 94.2 65.3 41,2 109.6 76.1 32,6 125.7 87.3 25,6 141.1 98.1 20,3 157.2 109.3 15,0
30 81.7 48.2 50,7 98.7 57.1 38,4 114.8 67.3 30,2 131.9 77.1 23,4 149.9 86.6 18,3 165.4 96.5 13,2
25 84.9 42.0 46,9 102.6 50.2 35,7 119.7 58.1 27,6 137.5 66.3 21,2 154.5 74.1 16,1 172.2 82.7 11,5
Max. capacities in 1000 lbs do not exceed 75% of tipping load.
