R 926 – R 976 Litronic Attachment Ditch Cleaning Multi-User

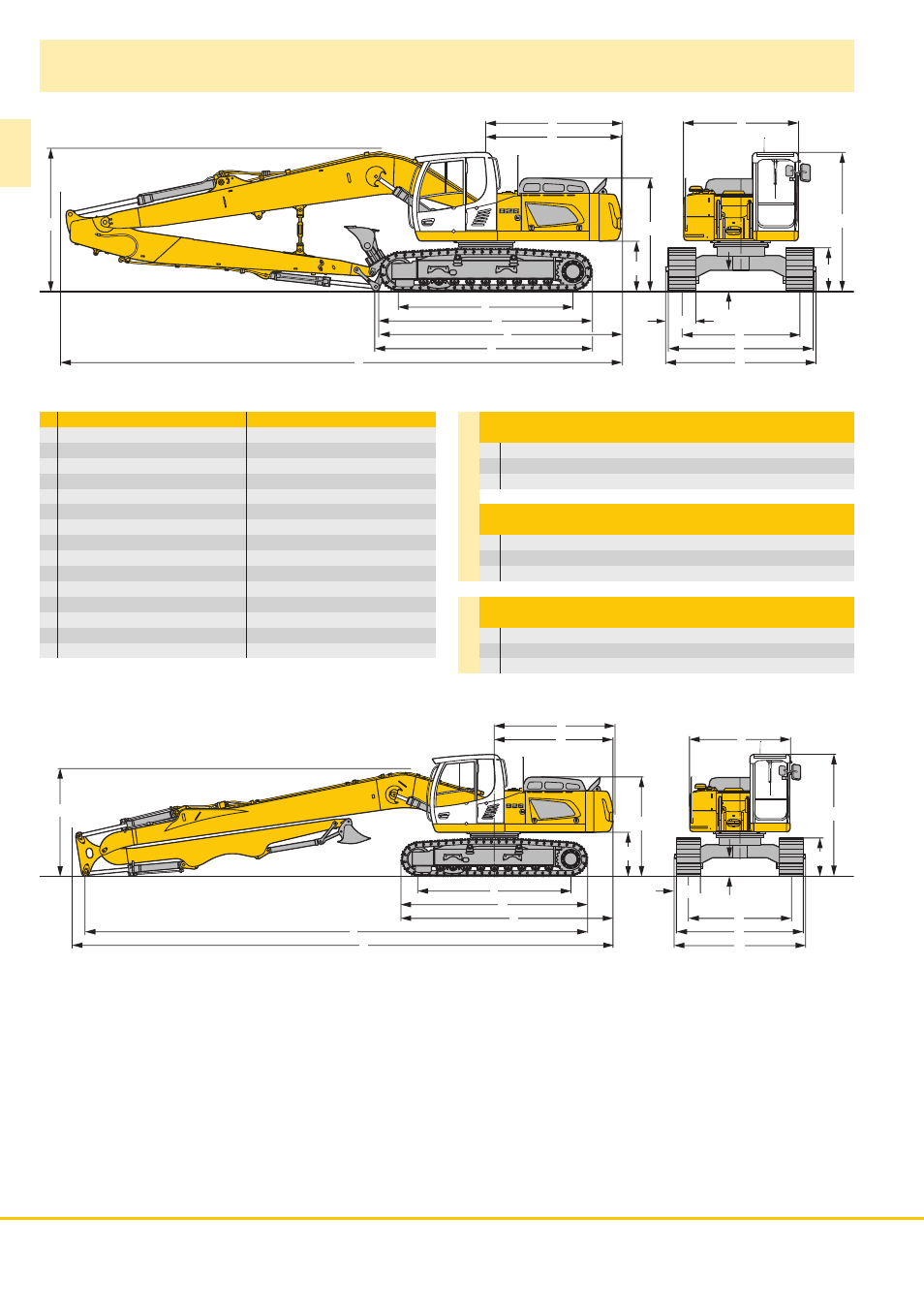

Dimensions
Mono Boom 8.20 m
Stick 6.00 m
mm
V
4,800
W
3,150
X
12,350
Mono Boom 9.00 m
Stick 6.80 m
mm
V
5,500
W
3,000
X
13,100
Mono Boom 9.70 m
Stick 7.40 m
mm
V
12,650
W
2,700
X
13,600
LC
mm
WLC
mm
A
2,535
2,535
C
3,060
3,060
D
2,980
2,980
E
3,000
3,000
H
2,490
2,490
K
1,110
1,110
L
3,838
3,838
P
995
995
Q
470
470
S
2,380
2,590
U
4,700
4,700
N
500 600 700
500 600 750
B
2,880 2,980 3,130
3,090 3,190 3,340
G
2,920 2,920 3,120*
3,130 3,130 3,330*
Z
5,330
5,330
* Width with removable steps
Multi-User
Ditch
Cleaning
R
9
2
6
C
H
D
E
K
L
U
Z
V
X
W
P
A
Q
N
S
B
G
R0071
C
H
D
E
K
L
U
Z
V
X
W
P
A
Q
N
S
B
G
R0072
