16 R 926 – R 976 Litronic Attachment Ditch Cleaning Multi-User

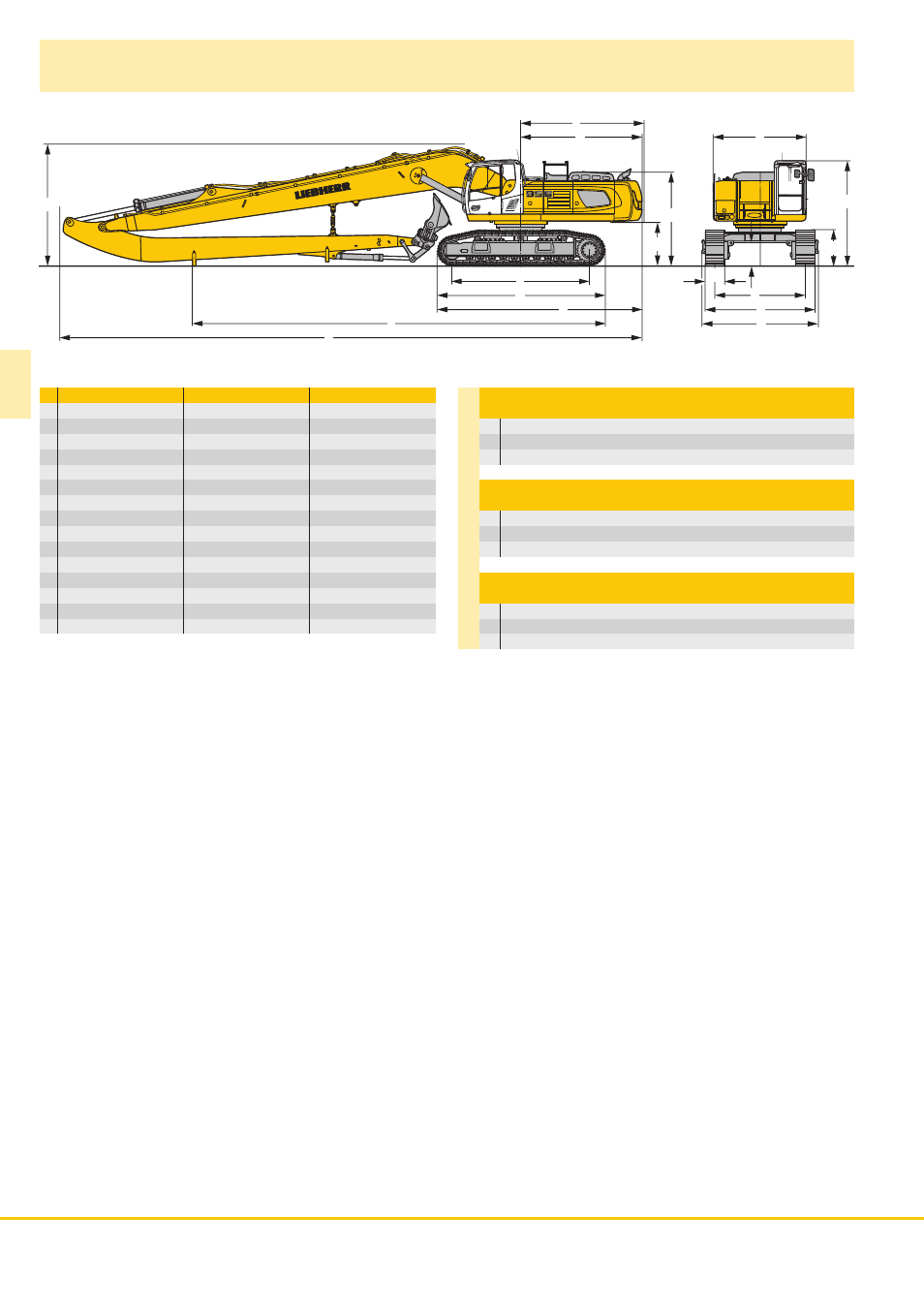

Dimensions
Mono Boom 9.00 m
Stick 6.00 m LC LC-V
V mm 11,550 11,550
W mm 3,550 3,600
X mm 14,500 14,500
Mono Boom 10.70
Stick 8.50 m LC LC-V
V mm 11,000 10,950
W mm 3,750 3,800
X mm 16,350 16,350
Mono Boom 13.00 m
Stick 10.00 m LC-VW
V mm 13,200
W mm 3,900
X mm 18,650
LC mm LC-V mm LC-VW mm
A 2,970 2,970 2,970
C 3,315 3,390 3,390
D 3,830 3,880 3,880
E 3,850 3,900 3,900
H 2,925 3,000 3,000
K 1,335 1,410 1,410
L 4,400 4,400 4,400
P 1,160 1,160 1,160
Q 555 760 760
S 2,900 2,390**/2,890 2,900**/3,400
U 5,365 5,365 5,365
N 500 600 750 500 600 750 500 600 750
B 3,462 3,500 3,650 2,950 2,990 3,140 3,460 3,500 3,650
G 3,715* 3,715* 3,715* 3,200* 3,200* 3,200* 3,710* 3,710* 3,710*
Z
6,515 6,565 6,565
* Width with removable steps
** Transport position
Multi-User
G
B
S
N
Q
P
C
A
H
K
L
U
Z
V
X
W
D
E
R
9
5
6
