4 LRB 125

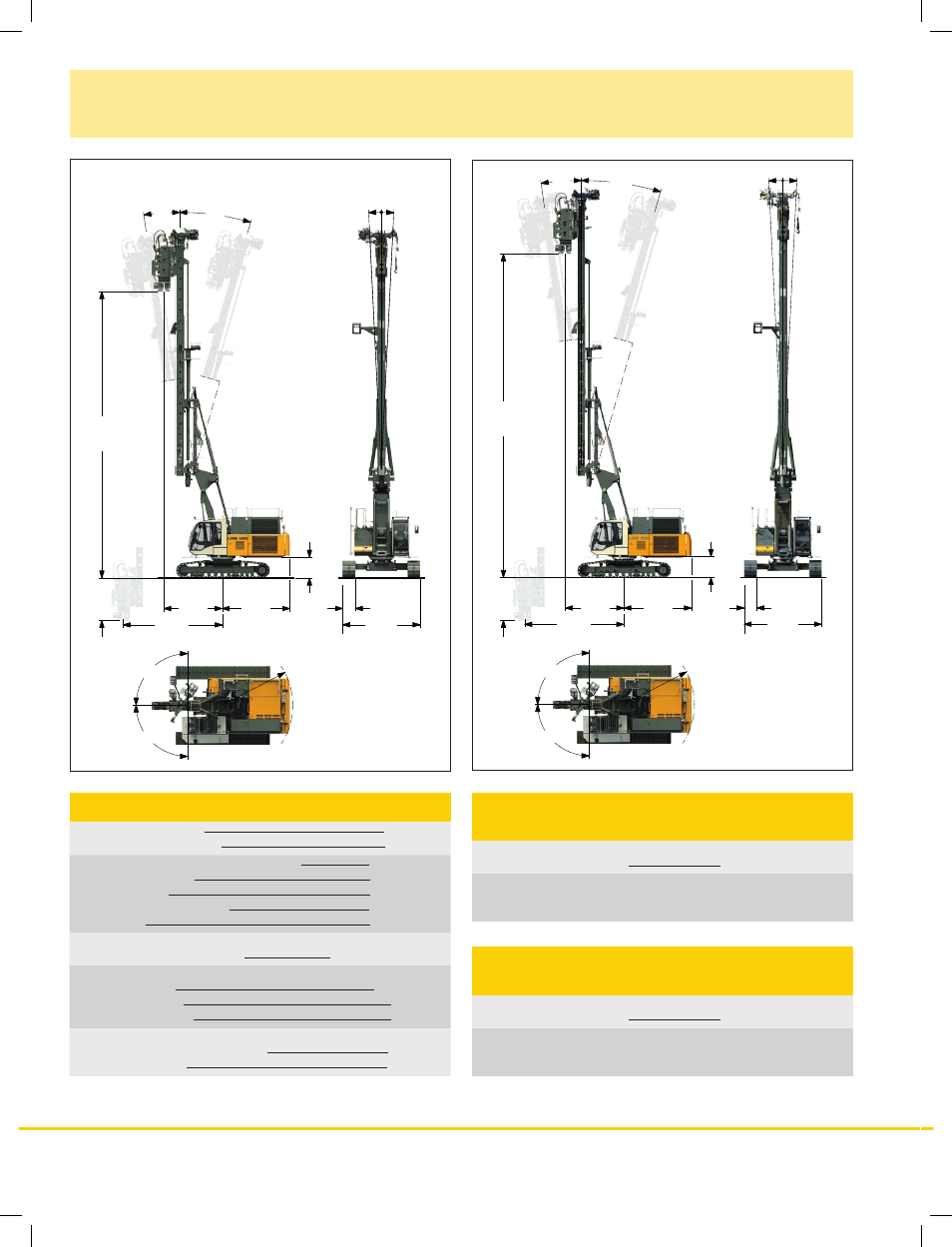

Dimensions
LRB 125 LRB 125 XL
13´9´´
27.55´´ 12´ 10.33´
49.9´
2.8° 2.8° 1:6 1:3
90°
90°
17.55´
44.1´´
R 12´6´´
9´2´´
13´9´´
27.55´´ 12´ 10.33´
56.4´
90°
90°
17.55´
44.1´´
R 12´6´´
1:6 1:3 2.8° 2.8°
9´2´´
Technical data
Leader length LRB 125 41.0 ft
Leader length LRB 125 XL 47.6 ft
Capacity hammer including cap plus pile 26,455 lbs
Max. hammer weight 13,228 lbs
Max. pile weight 13,228 lbs
Max. pull, leader on ground 44,960 lbf
Max. torque 88,510 lbf-ft
Working radius machine
Centre of rotation – centre pile
10.33 — 17.55 ft
Stepless rig inclination adjustment
Lateral inclination
± 2.8°
Forward inclination 1:6
Backward inclination 1:3
Vertical leader adjustment above
ground level (depending on radius)
16.4 ft
Leader swing range ± 90 °
LRB 125 Operating weight and
ground pressure
Telescopic undercarriage with
27.55 inch 3–web grousers
108,027 lbs – 11.8 PSI
The operating weight includes the basic machine LRB 125 with
vibrator slim design. Weights can vary depending on the final
configuration of the machine.
LRB 125 XL Operating weight and
ground pressure
Telescopic undercarriage with
27.55 inch 3–web grousers
114,640 lbs – 12.5 PSI
The operating weight includes the basic machine LRB 125 XL
with vibrator slim design. Weights can vary depending on the final
configuration of the machine.
