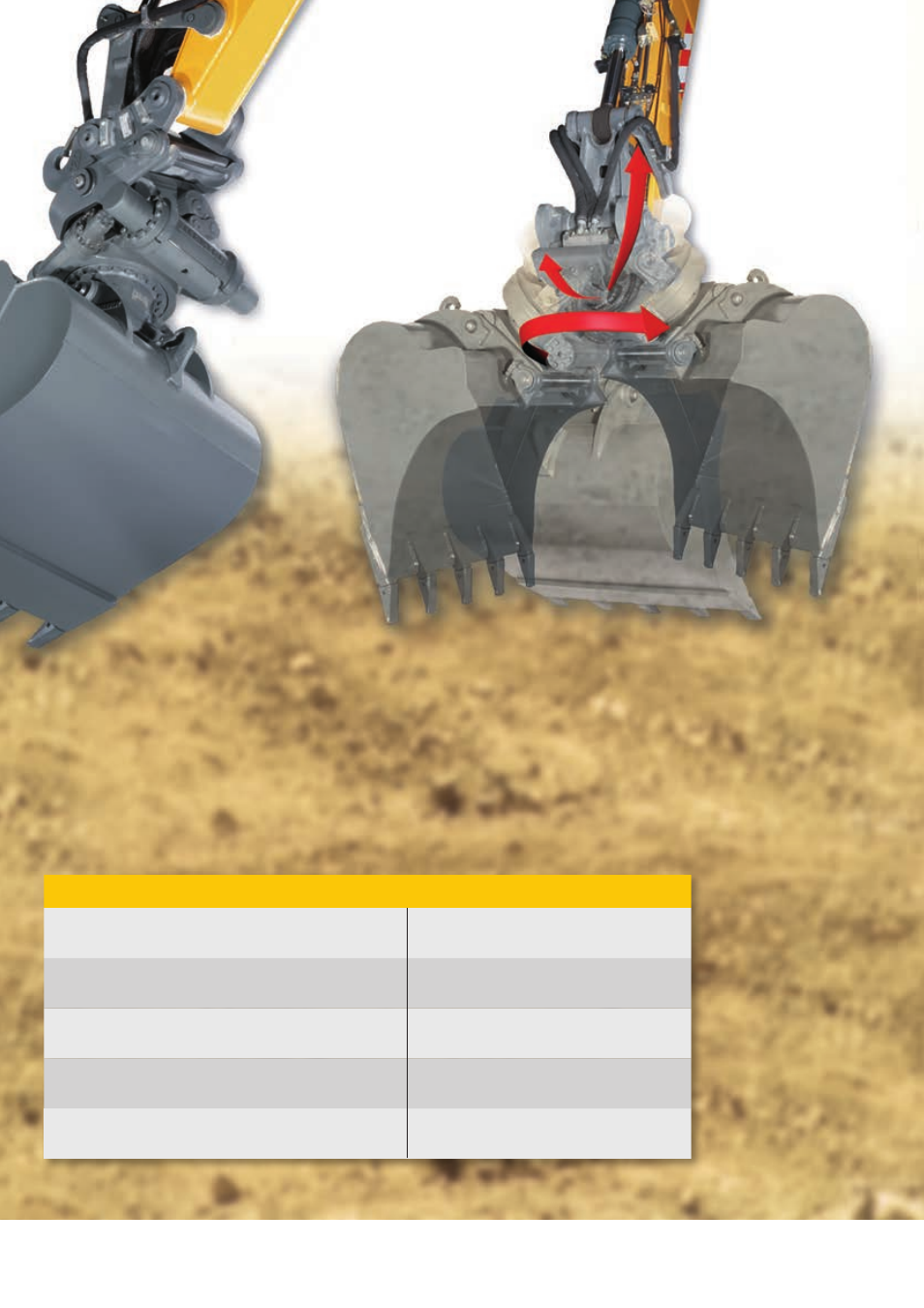

Installation possibilities of the tilt rotator
Tilt
± 50°
360° infinite rotation
Equipment of excavator
Movement possibilities
Middle pressure lines and Liebherr
quick coupler (mech. or hydr.)
Turning or swiveling (changeover
via rocker switch in joystick)
Middle pressure lines, high pressure lines and
Liebherr quick coupler (mech. or hydr.)
Turning or swiveling
simultaneously
Middle pressure lines, high pressure
lines and LIKUFIX
Turning or swiveling
simultaneously
Middle pressure lines and third party
quick coupler
Turning or swiveling (changeover
via rocker switch in joystick)
Middle pressure lines, high pressure lines
and third party quick coupler
Turning or swiveling
simultaneously
