Tilt buckets and
ditch cleaning buckets
The proven tilt buckets of the Liebherr excavators are the all-rounders for professional humus
soil work and excavation. The rugged ditch cleaning buckets with patented tilt mechanism and
protected, inside mounted, cylinders in various cutting widths are utilized as effective tools for
grading and scarping.
Tilt bucket
(technical data on page 37)
Capacities of 0.5 - 2.0 m³, cutting widths of 1,200-1,800 mm also available in HD version
Applications
• Slope finishing
• Grading
• Excavation
• Loading trucks
Features
• Thick wear plate on bucket bottom
• 2 x 50° tiltable both sides
• Tilt cylinder installed protected
• Cutting edge available as an option
(serrated upon request)
Benefits
• Particularly suitable for various slope angles and excavation
Ditch cleaning bucket
(technical data on page 37)
Capacities from 0.3 – 2.4 m
3
, cutting widths from
1,200 mm – 2,400 mm
Applications
• Profile required digging of trenches
• Grading
• Scraping and modeling of banks
• Garden- and landscaping work
Features
• Tilt cylinder installed protected
• Rigid or as an alternative 2 x 50° tiltable
• Standard back-cutting edge
• Continuos bottom plate
• Bolt-on cutting edge available as an option
Benefits
• Particularly accurate grading work
• Optimal emptying in digging work
• Longevity due to protected cylinders

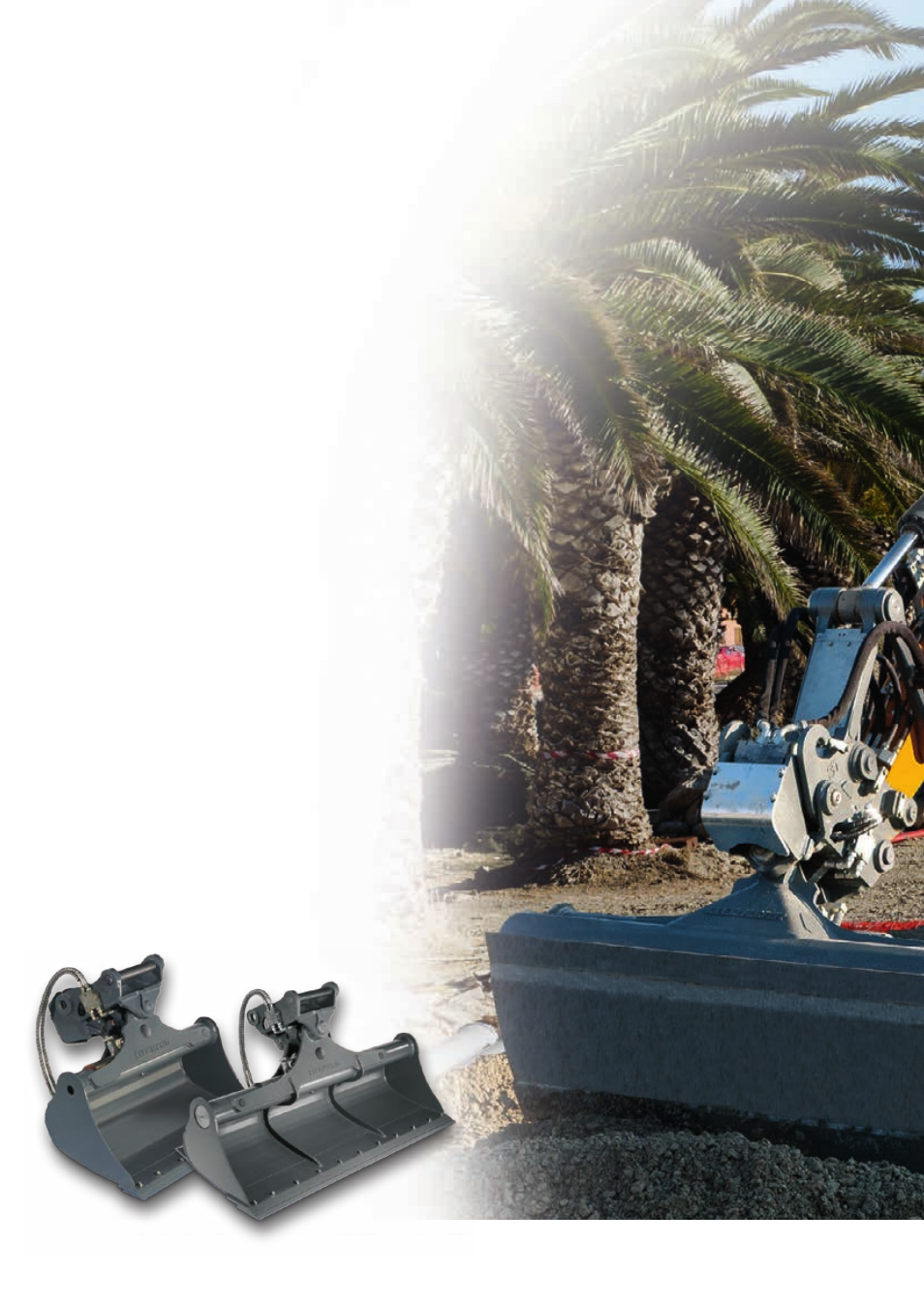

Tilt bucket – optional with bolt-on cutting edge
Ditch cleaning bucket – optional with bolt-on cutting edge
