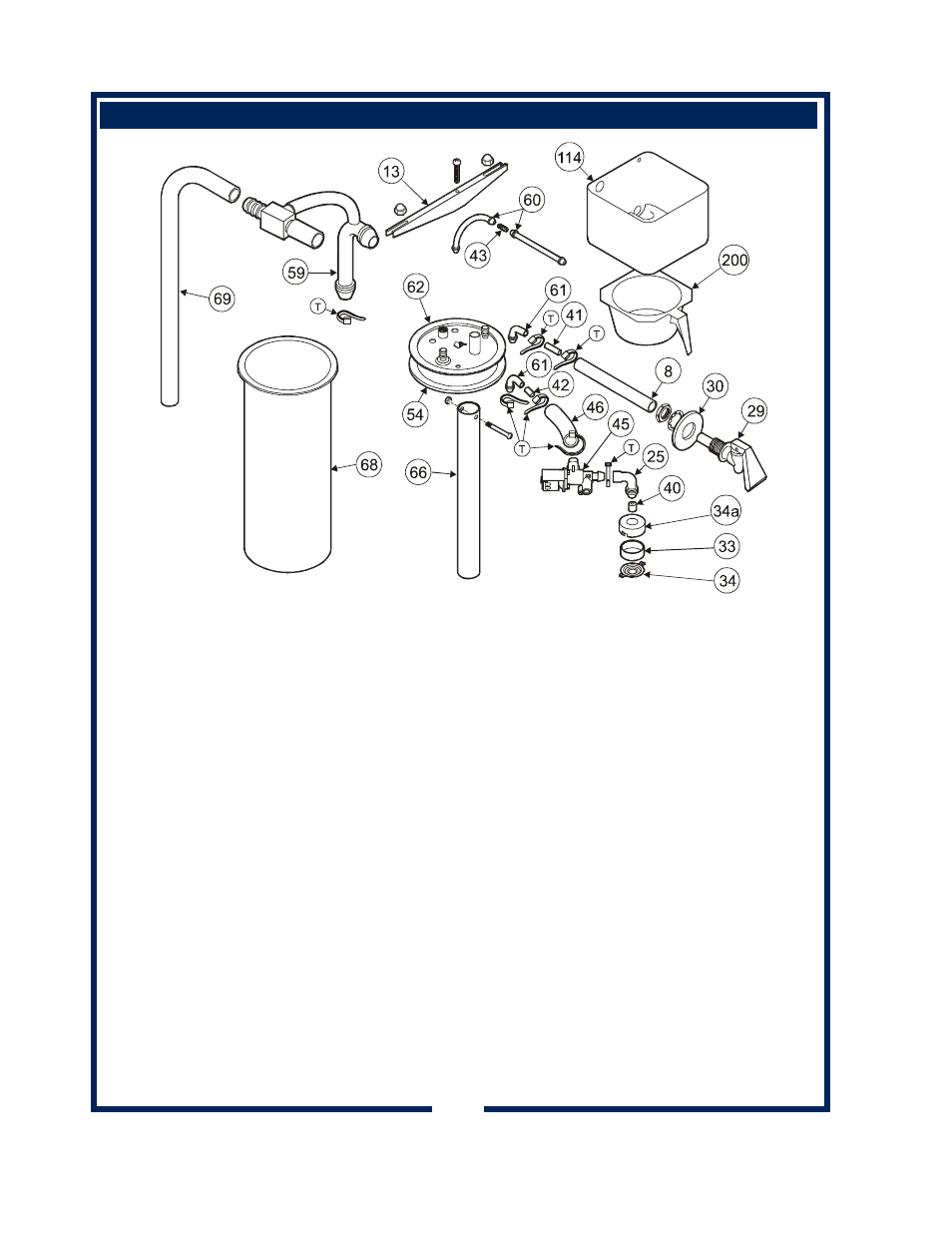

EXPLODED VIEW & PARTS LIST
16
ITEM PART# DESCRIPTION QTY
8 83538 TUBE, FAUCET SUPPLY 10” SILICONE 1
13 8043-5 STRAP, TANK LID HOLD DOWN 1
25 8043-13 ELBOW, BREW NOZZLE SILICONE 1
29 8783-1 FAUCET 1
30 82681 WASHER, FLAT SS 15/32 x 1-1/8 OD 1
33 8543-42 GASKET, SPRAY DISK 1
34 84132 SPRAY DISK 1
34a 8543-45 BREW HEAD (must be drilled & riveted to install) 1
40 8810-70 RESTRICTOR, BREW NOZZLE 1
41 83384 TUBE, FAUCET SUPPLY METAL 1
42 85609 INSERT, BREW OUTLET ELBOW 1
43 82241 FITTING, BARBED BRASS 1
45 83388 SOLENOID, BREW 120V 1
46 85634 TUBE, BREW SILICONE 1
54 8043-12 GASKET, TANK LID 1
59 86771 INLET & VENT TUBE ASSY 1
60 8043-15 TUBE, VENT SILICONE 2
61 8043-11 ELBOW, OUTLET SILICONE 2
62 85587 TANK LID ASSEMBLY 1
66 8043-24 TUBE, TANK WATER INLET METAL 1
68 8043-10 TANK BODY 1
69 83385 TUBE, OVERFLOW DRAIN SILICONE 1
114 8760-3 BASIN PAN 1
200 8942-6B BREW CHAMBER BLACK PLASTIC 1
T CABLE TIE, PLASTIC 8
8372 PLUMBING COMPONENTS
