Briggs & Stratton Power Products Automatic Transfer Switch
Installation and Operator’s Manual

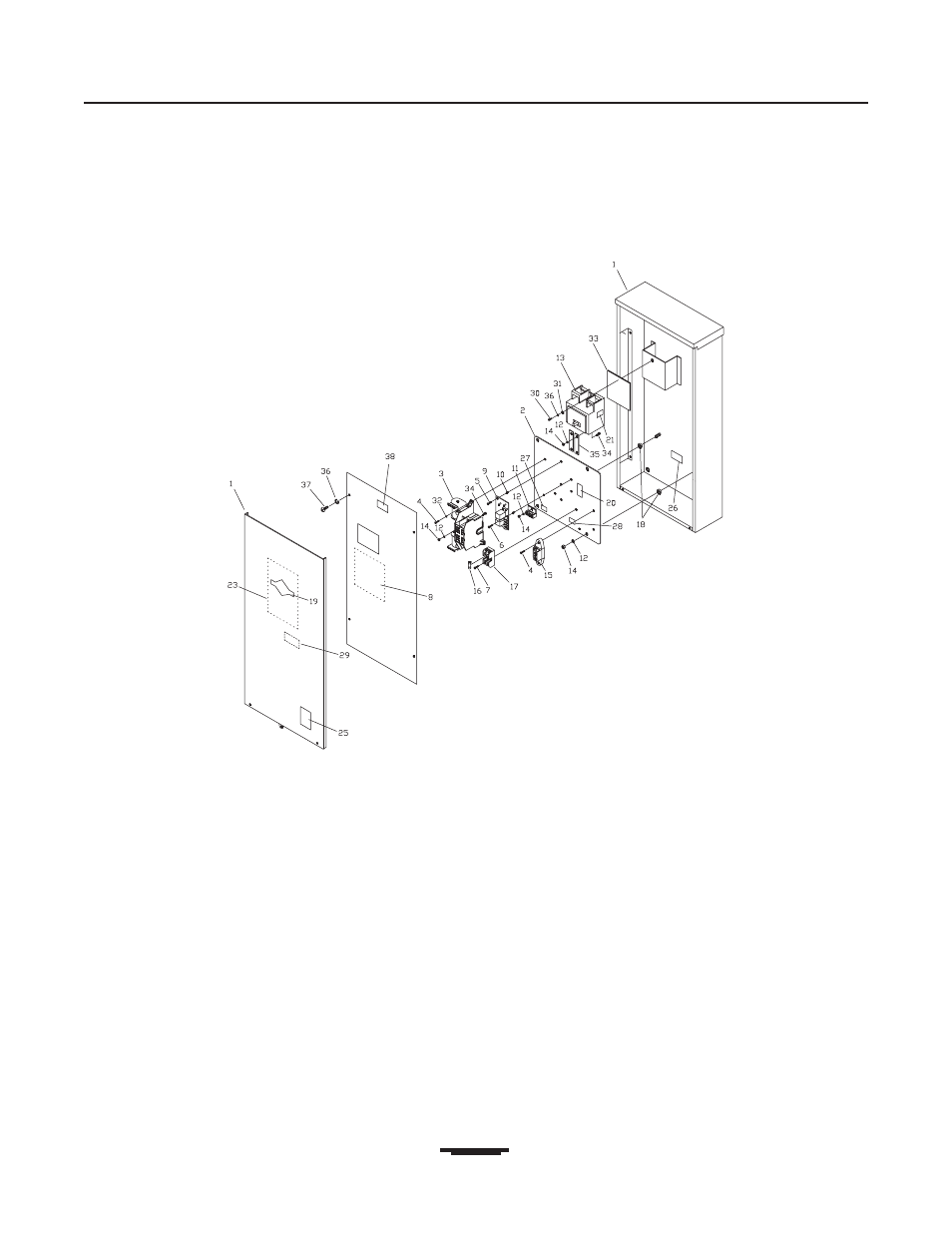

TRANSFER SWITCH EXPLODED VIEW & PARTS LIST
Item Part # Description
1 NSP ASSY, Enclosure
2 NSP BACK PANEL
3 195668GS TRANSFER SWITCH, 200A, with
Handle
4 * PPHMS, #10 - 32 x 1/2"
5 * PPHMS, #6 - 32 x 1/4"
6 * PPHMS, #6 - 32 x 1/2"
7 * PPHMS, #6- 32 x 3/8"
8 193664GS INSULATION, Dead Front
9 191668GS CONTROL, Board
10 196353GS SPACER, Nylon
11 196094GS GROUND LUG
12 * WASHER, Lock 1/4"
13 192065GS BREAKER Circuit, 200A
14 * NUT, 1/4” - 20
15 192696GS TERMINAL, Neutral
16 B4857GS FUSE
17 192151GS FUSE HOLDER
18 192150GS SPACER
19 198136GS DECAL, Logo
Item Part # Description
20 192702GS DECAL,Term Strip
21 B5106GS DECAL, Connection, Utility
23 196521GS DECAL, 200A, ATS
25 190992GS DECAL,Warning Shock
26 190984GS DECAL, Fuse
27 B4986GS DECAL, Ground
28 192597GS DECAL, Sensing, Utility
29 193450GS DECAL, Breaker, Circuit
30 * PPHMS, #10 - 32 x 3/4"
32 * WASHER, Ext.Tooth, #10
33 192879GS INSULATION, Circuit Breaker
34 * PPHMS, 1/4-20x 3/4"
35 192881GS BUS BAR
36 * LOCKWASHER, #10
37 * PPHMS, #10 - 32 x 1/4"
38 193159GS DECAL, Reinstall Barrier
* - Items without part numbers are common fasteners and
available at local hardware stores.
MODEL 01929-1
