Briggs & Stratton Power Products Automatic Transfer Switch
Installation and Operator’s Manual

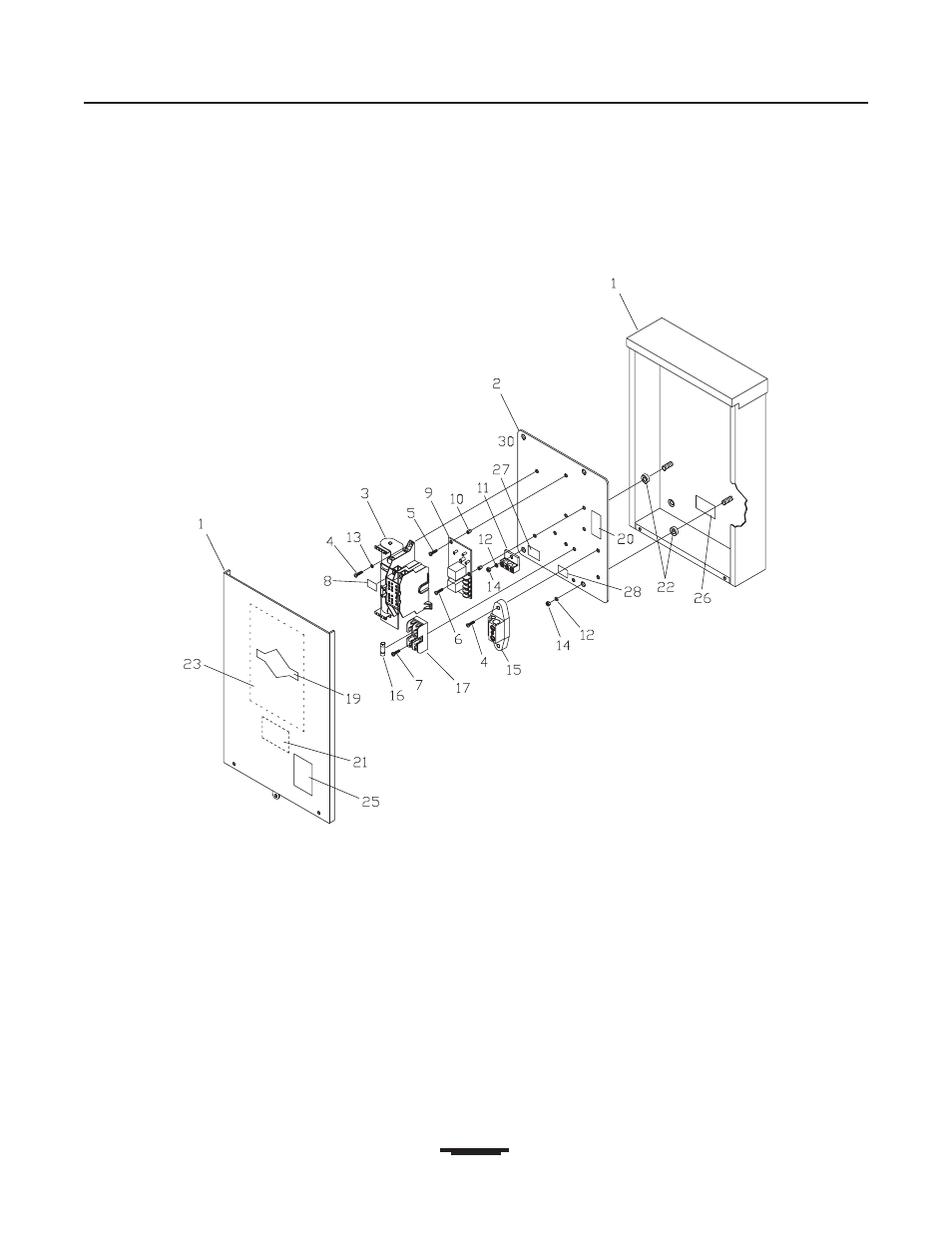

TRANSFER SWITCH EXPLODED VIEW & PARTS LIST
Item Part # Description
1 NSP ENCLOSURE, 16" x 12" x 6"
2 NSP BACK PANEL
3 195667GS TRANSFER SWITCH, 100A, with
Cover & Handle
4 * PPHMS, #10 - 32 x 1/2"
5 * PPHMS, #6 - 32 x 1/4"
6 * PPHMS, #6 - 32 x 1/2"
7 * PPHMS, #6-32 x 3/8"
8 193159GS DECAL, Reinstall After
9 191668GS CONTROL, Board
10 196353GS SPACER, Nylon
11 196094GS GROUND LUG
12 * WASHER, Lock 1/4"
13 * WASHER, Ext.Tooth, #10
14 * NUT, 1/4" - 20
Item Part # Description
15 192696GS TERMINAL, Neutral
16 B4857GS FUSE
17 192151GS FUSE HOLDER
19 198136GS DECAL, Logo
20 192702GS DECAL,Term Strip
21 192165GS DECAL, APPVD CB
22 192150GS SPACER
23 196522GS DECAL, 100A, ATS
25 190992GS DECAL,Warning Shock
26 190984GS DECAL, Fuse
27 B4986GS DECAL, Ground
28 192597GS DECAL, Utility, 240 VAC
* - Items without part numbers are common fasteners and
are available at your local hardware store.
MODEL 01813-1
