Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Hardware
A
Screw M4x12 Zinc Plated Phillips Truss Head 4 pcs
B
Screw M5x12 Zinc Plated Phillips Truss Head 8 pcs
C
Screw M6x8 Zinc Plated Phillips Truss Head 1 pcs
D
Screw M6x12 Zinc Plated Phillips Truss Head 13 pcs
E
Wing Nut M4 Steel 4 pcs
F
Wing Nut M5 Steel 12 pcs
G
Washer ø5.2 Zinc Plated 4 pcs
H
Washer ø6.4 Zinc Plated 5 pcs
I
Washer ø6.4 Heat Resistant 9 pcs
J
Lock Washer ø6.4 Zinc Plated 1 pc
K
Pin ø5 x 32 Zinc Plated 2 pcs
L
Cotter Pin ø1.2 x 30 Steel 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
1
8
14 15
Parts List
1 Left Lid Handle Support 55-09-099
2 Lid Handle Bar 55-09-473
3 Right Lid Handle Support 55-09-192
4 Lid Handle Washer (2) 55-09-478
5 Temperature Assembly 55-09-493
6 Lid 55-09-472
7 Warming Rack 55-15-256
8 Cooking Grid 55-09-480
9 Top Hinge (2) 55-09-475
10 Bottom Hinge (2) 55-15-329
11 Heat Plate 55-09-329
12 Side Handle (2) 55-14-983
13 Heat Plate Support (2) 55-09-330
14 Bottom Bowl 55-09-459
15 Burner 55-15-225
16 Igniter Wire 55-09-471
17 Igniter Assemebly 55-09-492
18 Lock (2) 55-08-331
19 Gease Tray 55-15-230
20 Wind Cover 55-07-683
21 Regulator/Control Valve 55-15-248
22 Front Leg 55-09-476
23 Rear Leg 55-09-477

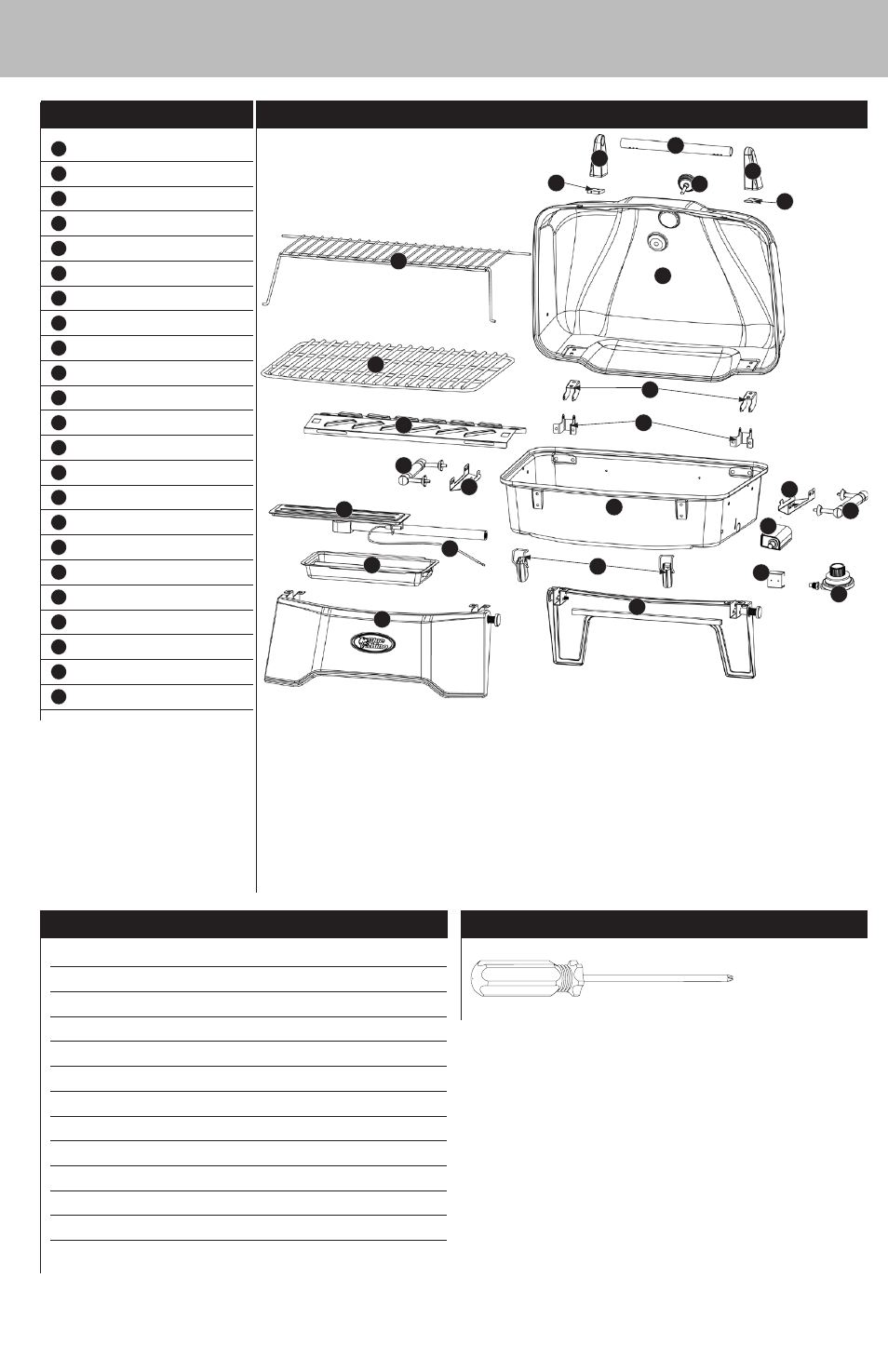

Exploded View
6
2
3
5
11
13
17
21
22
19
23
7
9
16
12
20
10
12
13
4
18
4
