Grill Body
Assembly
25

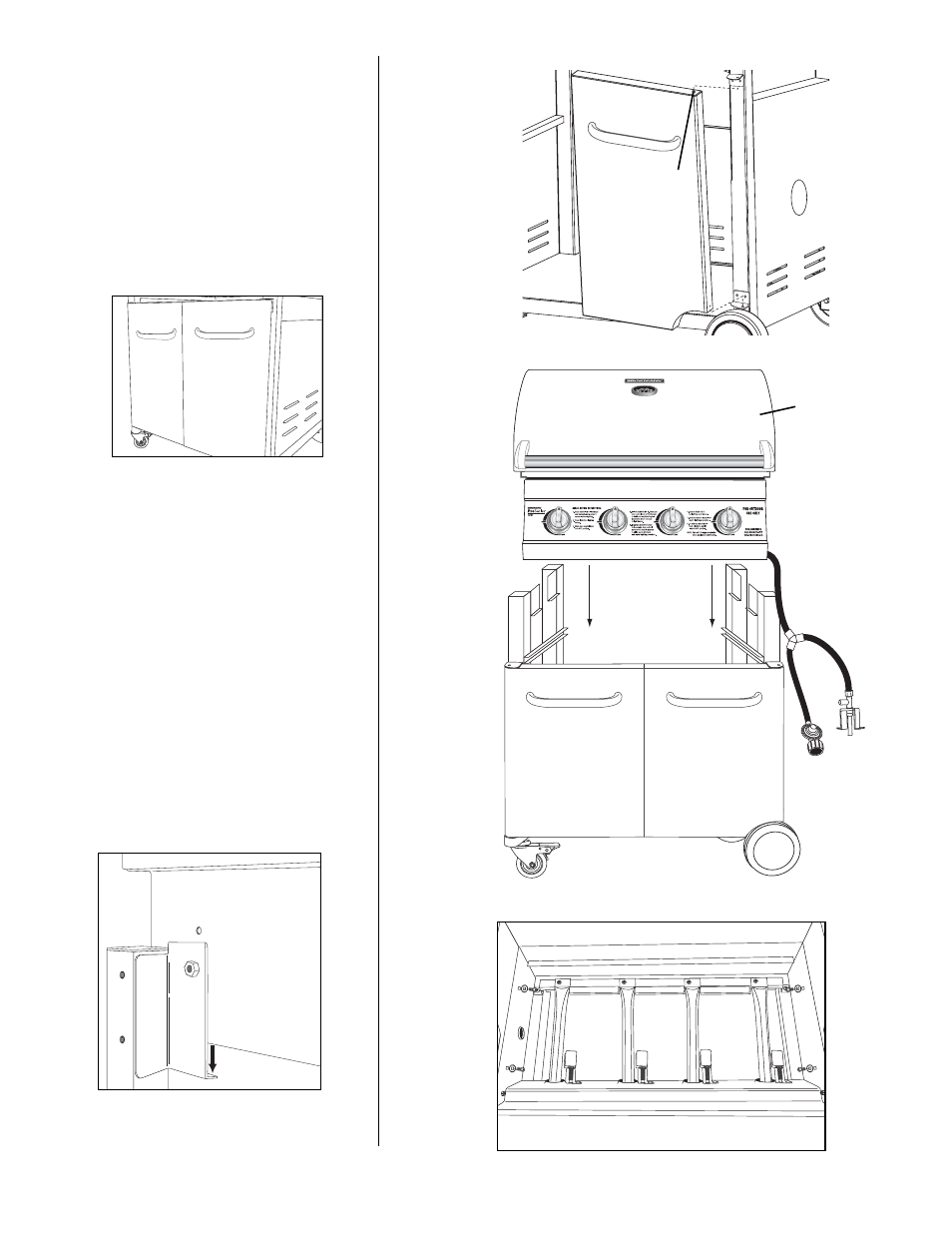

Step 9
Insert pin in bottom of right side
door into hole in bottom front cart
leg then align door with right side
door bracket. Depress spring pin
located on top edge of door and
slide door toward right side door
bracket until spring pin locks into
hole in door bracket. Repeat for
other door.
Note: When performing Step 10,
Lift grill body from front and
rear panels to avoid injury to
hands and fingers.
Step 10
With the help of a friend, place grill
body assembly on grill cart. Grill
body will rest between upper side
sections of cart. Align front edge of
grill body assembly with front edges
of cart frame legs. Secure using
four M6 X 12mm bolts (black) and
star washers (black).
Spring Pin
