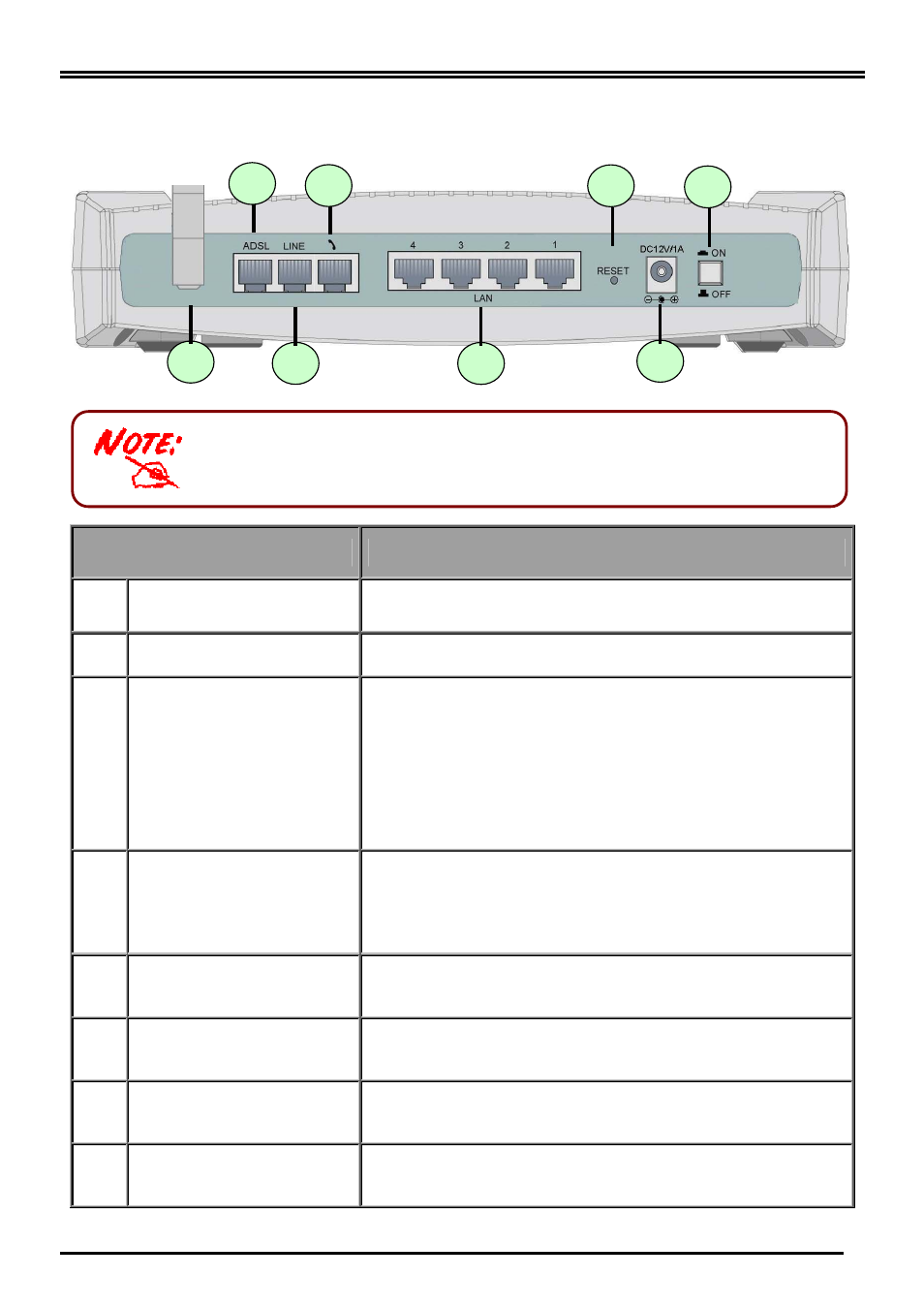

The Rear Ports
6 5 3 1
2 8 7 4
The Ethernet Port # 4 can be connected to the computer and console. You need a special
console tool which is included in this package to connect the LAN cable of Port 4 when
connecting to a PC’s RS-232 port (9-pin serial port).
Port Meaning
1
Power Switch
Power ON/OFF switch
2
Power
Connect the supplied power adapter to this jack.
3 RESET
After the device is powered on, press it to reset the device or
restore to factory default settings.
1-3 seconds: reset the device
6 seconds above, and power off, power on the device: restore to
factory default settings (this is used when you can not login to
the router, e.g. forgot the password)
4
LAN
1X — 4X
(RJ-45 connector)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the
four LAN ports when connecting to a PC or an office/home
network of 10Mbps or 100Mbps.
5
Phone
(RJ-11 connector)
Connect RJ-11 cable to this port when connecting to an analog
phone set.
6
LINE
Connect RJ-11 cable to this port when connecting to the
telephone wall jack.
7
ADSL Connect the supplied RJ-11 (“telephone”) cable to this port
when connecting to the ADSL/telephone network.
8
Antenna
(Wireless router only)
Connect the detachable antenna to this port.
