Quick Start Guide

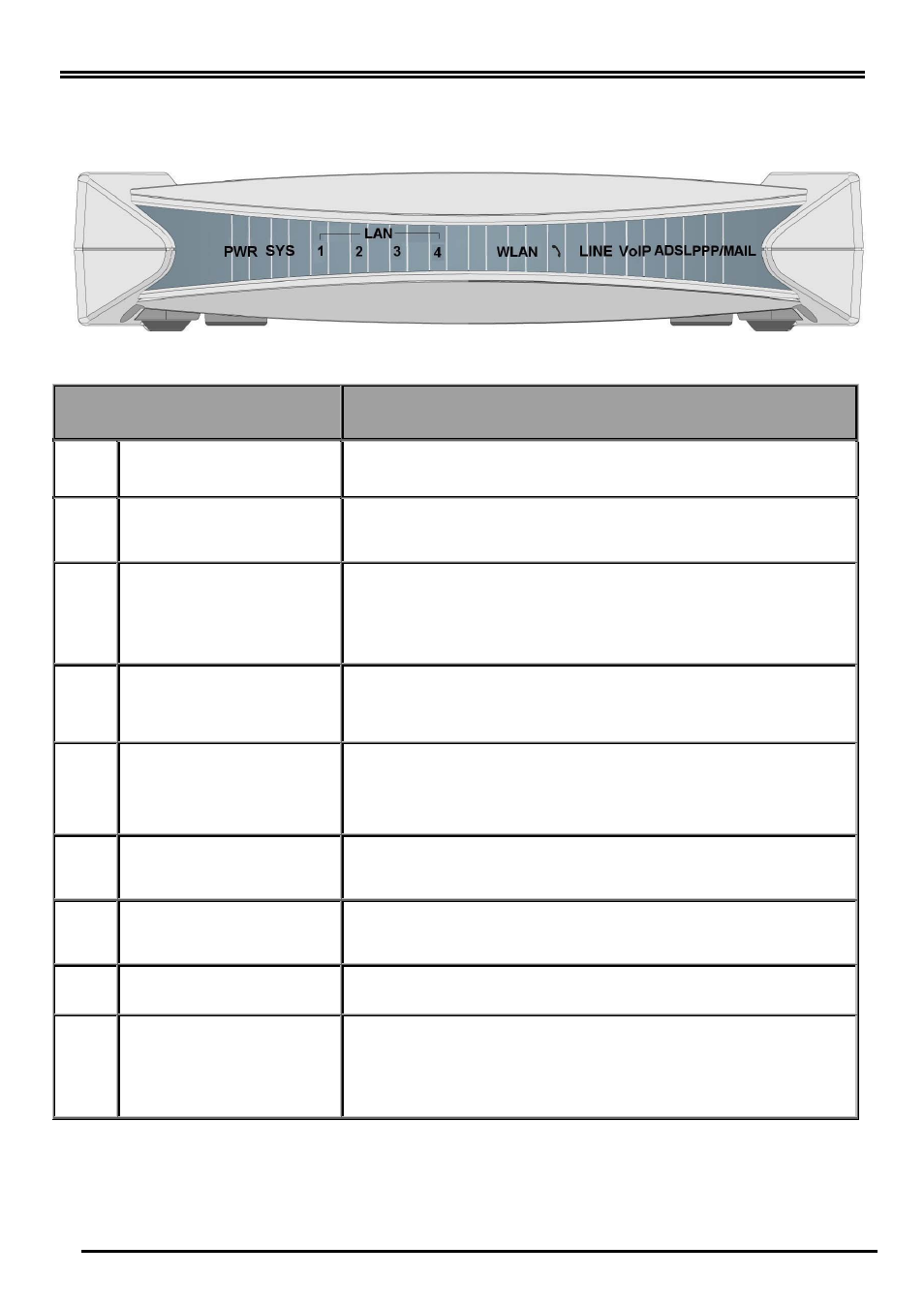

The Front LEDs
LED Meaning
1 PWR Lit when power is ON.
2 SYS Lit when the system is ready.
3 – 6
Lit when connected to an Ethernet device.
Green for 100Mbps; Orange for 10Mbps. LAN Port
1X — 4X
(RJ-45 connector) Blinking when data is Transmitted / Received.
8
WLAN Lit green when the wireless connection is established.
(Wireless router only) Flashes when sending/receiving data.
9
Phone
(RJ-11 connector)
Lit green when the phone is off-hook.
10 LINE
Lit when the inbound and outbound calls transmitted
through PSTN.
11
VoIP
Lit when SIP registration is OK.
12 ADSL
Lit when successfully connected to an ADSL DSLAM
(“linesync”).
13 PPP / MAIL
Lit steady when there is a PPPoA / PPPoE connection.
Lit and flashed periodically when there is email in the Inbox.
