Bolens BL100 - Manual (Page 63)

E23
PARTS LIST

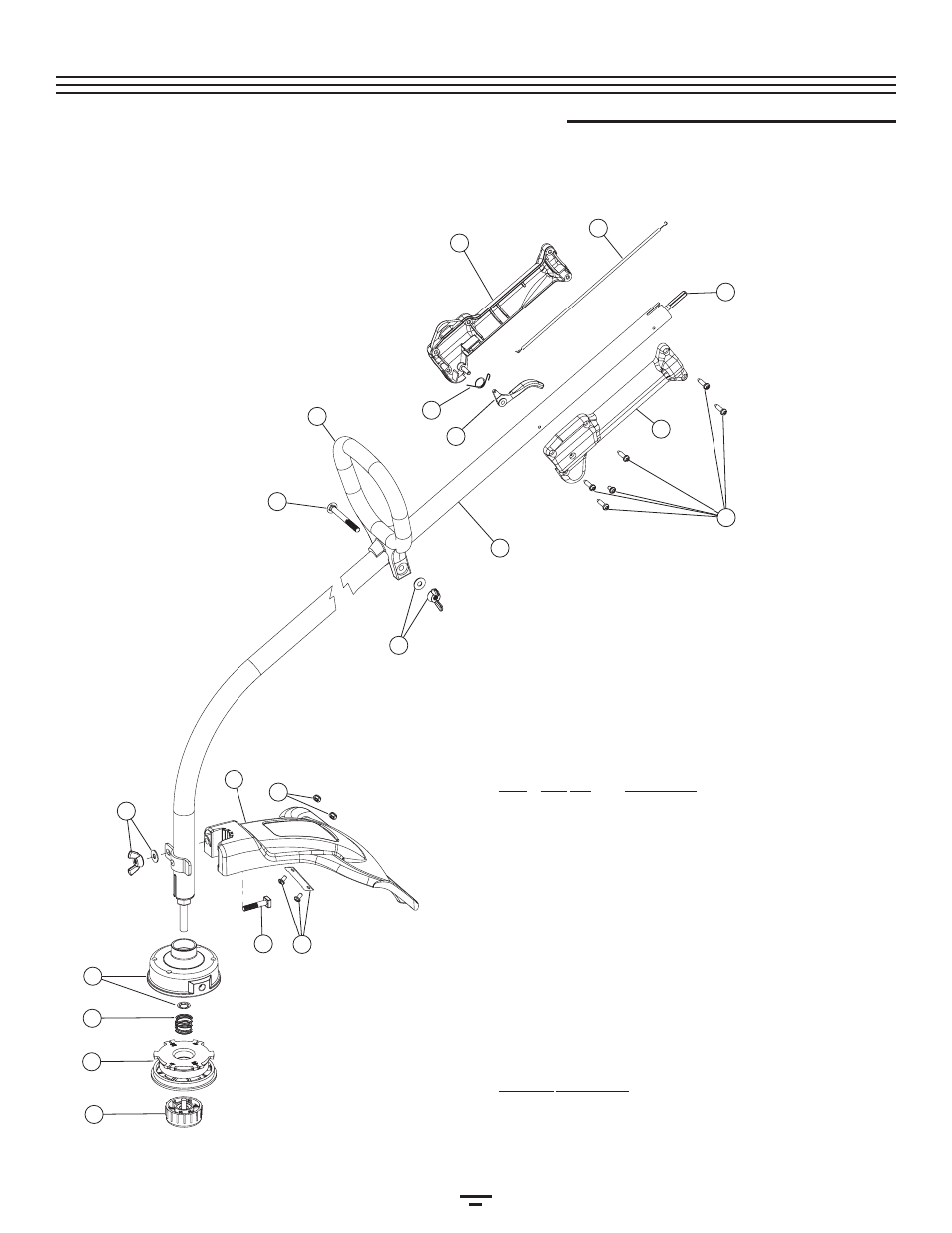

BOOM AND TRIMMER PARTS - MODEL BL100
2-CYCLE GAS TRIMMER
PPN 41AD100G163
Item Part No. Description
1 753-04279 Throttle Housing and Trigger Assembly
(includes 2 & 3)
2 791-610314 Throttle Trigger Spring
3 791-180975 Throttle Trigger
4 791-145888 Throttle Housing Screws
5 791-182068 Throttle Cable
6 753-04280 Flexible Drive Shaft
7 753-04281 Drive Shaft Housing Assembly
(includes 6 & 13)
8 791-153064 D-Handle Assembly (includes 9)
9 791-153317 D-Handle Hardware
10 753-04282 Guard Mounting Hardware
11 753-04283 Guard
12 791-180553 Blade Assembly
13 753-04284 Outer Reel w/Retainer
14 791-610317 Spring
15 791-610318 Inner Reel
16 791-153066 Bump Knob
Optional Accessories
* 791-153577 Inner Reel and Line
* 791-682075 Shoulder Strap Assembly
* Items Not Shown
