10 October 28, 2001 AM197736_06_V.pdf
L R
TAPE IN
L R
TAPE OUT
RIGHT RIGHT
CENTER
OUTPUTS TO
CUBE SPEAKERS
LEFT
LEFT
FRONT SURROUND
AUDIO
INPUT
Connecting the Acoustimass ® module to the Lifestyle ® music
center
Connect the Acoustimass module to the music center with the audio input cable (Figure 6).
1. Plug the small black multi-pin connector (flat side facing up) into the jack marked
SPEAKER ZONE 1 on the rear of the music center.
2. Insert the single right-angle multi-pin connector on the other end of the audio input cable
into the AUDIO INPUT jack on the Acoustimass module. Align the connector at the angle
shown in Figure 6.
Note: Connect your digital signal source to the female RCA connector. See “Connecting
your home theater components...” on page 12.
Note: Be sure that each connector is fully inserted into each jack.
3. Extend the audio input cable as much as possible, since it includes an antenna for the
remote control.
Note: Refer to “Using two listening zones” on page 30 for information on connecting a
second zone.

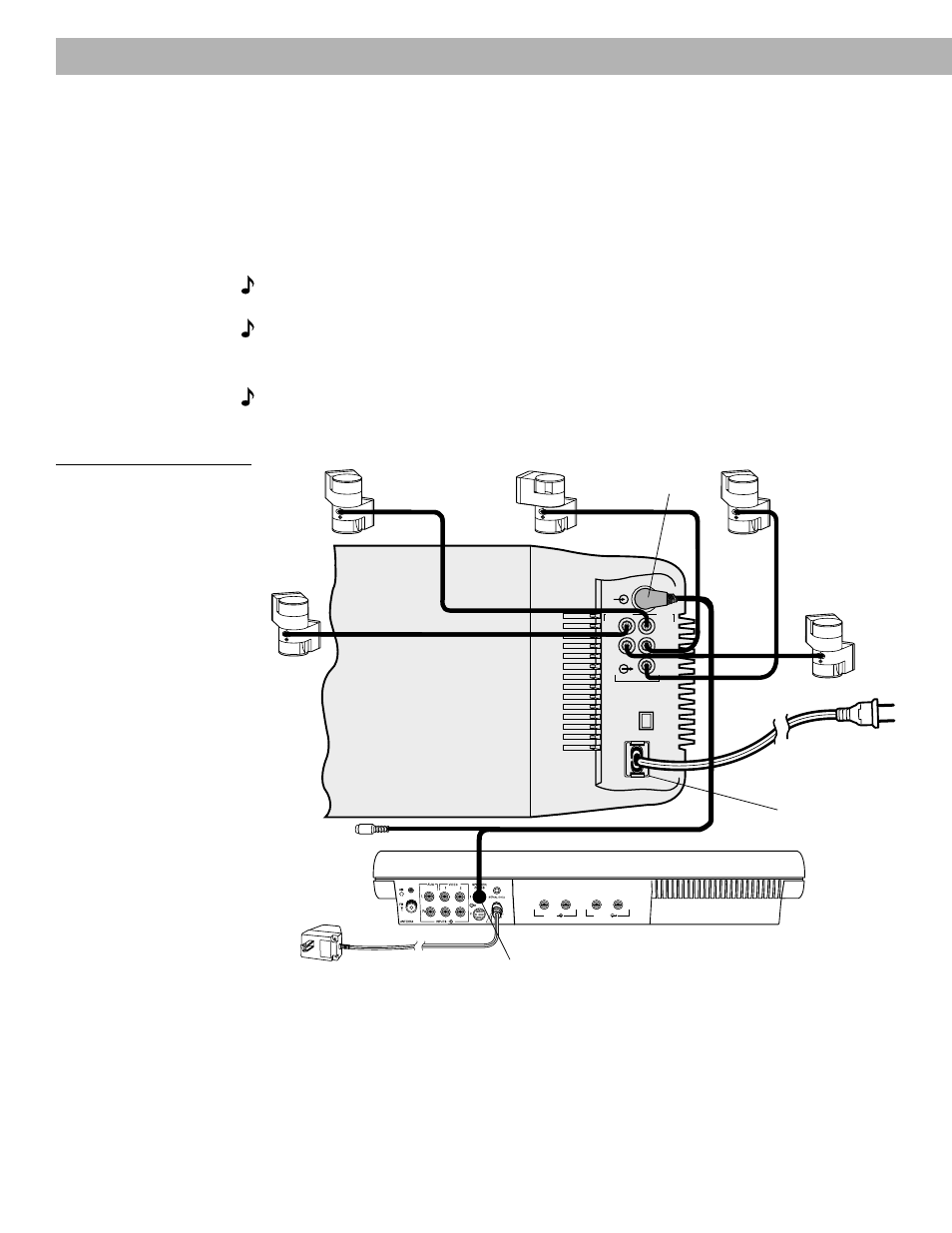

Figure 6
Music center and speaker
connections
Left
surround
speaker
Right
surround
speaker
Center
speaker
Right front
speaker
Setting Up
Right-angle
connector
into AUDIO
INPUT
Audio
input
cable
AC power jack
To digital signal
source
AC power pack Multi-pin connector into SPEAKER ZONE 1
Left front
speaker
