Bloomfield 8382 User Manual
Page 19

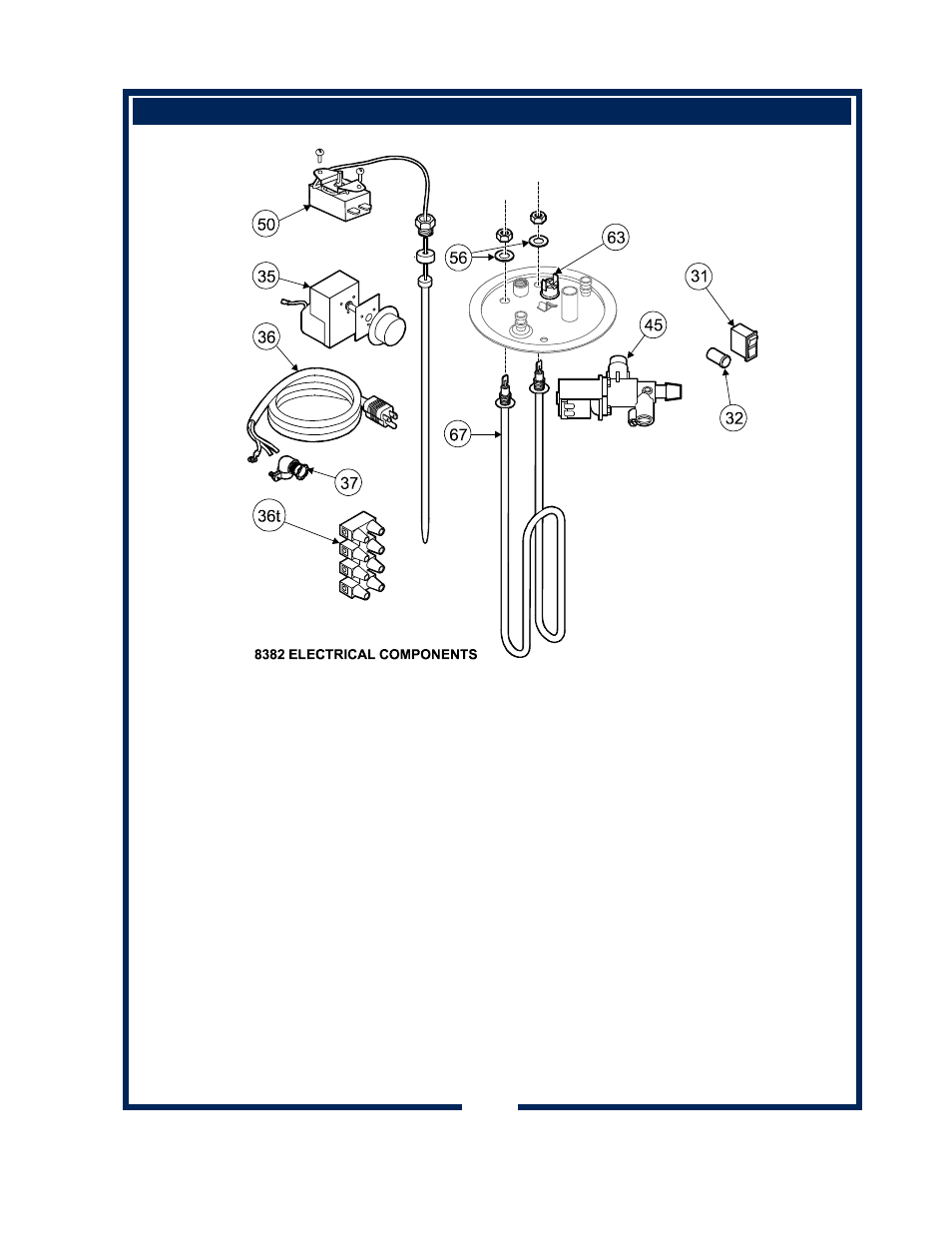

EXPLODED VIEW & PARTS LIST (continued)
17
ITEM PART# DESCRIPTION QTY
31 8707-55 SWITCH, BREW MOMENTARY 120V 1
32 8718-31 INDICATOR LIGHT, GREEN 120V 1
35 8812-61 TIMER, 8 MIN 1
36 6407-15 POWER CORD, NEMA 5-15P 1
36t 8552-18 TERMINAL BLOCK, 4P 1
37 51217 STRAIN RELIEF 90º CLAMP 1
45 83388 SOLENOID, BREW 120V 1
50 86280 THERMOSTAT, 199ºF 1
56 8043-30 SEAL, HEATING ELEMENT 2
63 8043-83 THERMOSTAT, HI-LIMIT 120V 1
67 8043-14 HEATING ELEMENT, 120V 1500W 1
