11

EURORACK UB1622FX

-PRO

/UB1832FX

-PRO

/UB2222FX

-PRO

/UB2442FX

-PRO

LEVEL SETTING:

When recording to digital recorders, the recorder’s meter should

not go into overload. This is because, unlike analog recordings,

it takes only slightly excessive levels to create unpleasant digital

distortion.

When recording to analog, the VU meters of the recording

machine should reach approx. +3 dB with low-frequency signals

(e.g. kick drum). Due to their inertia, VU meters tend to display

too low a signal level at frequencies above 1 kHz. You should

only drive instruments such as a Hi-Hat as far as -10 dB.

Snare drums should be driven to approx. 0 dB.

+

The peak meters of your EURORACK display level

almost independent of frequency. A recording level

of 0 dB is recommended for all types of signal.

MODE

The MODE switch determines whether the channels’ SOLO

switch operates as PFL (Pre Fader Listen) or as solo (Solo In

Place).
LEVEL SET (PFL)

To activate the PFL function, press the MODE switch. The PFL

function should, as a rule, be used for level setting (TRIM). The

signal is sourced pre-fader and assigned to the mono PFL bus. In

“PFL” mode, only the left side of the peak meter is in operation. A

PFL’d channel should be driven to the 0 dB mark of the VU meter.
NORMAL (SOLO)

When the MODE switch is not depressed, the stereo solo bus

is active. Solo is actually short for “Solo In Place”. This is the

customary method for listening to an individual signal or to a

group of signals. As soon as a solo switch is pressed, all channels

not solo selected are muted in th e monitor path (control room

and phones). A channel’s position in the stereo image is

maintained. The solo bus carries the output signals of the channel

pan controls, the aux sends and the stereo line inputs. On the

UB2442FX-PRO all aux returns, and on the UB1832FX-PRO only

aux return 2 can be routed to the solo bus. The solo bus is, as a

rule, taken post-fader.

+

The PAN control in the channel strip offers a

constant power characteristic. This means that the

signal is always at a constant level, irrespective of

position in the stereo panorama. If the PAN control

is moved fully left or right, the level in that channel

increases by 4 dB. This ensures that, when set at

the center of the stereo image, the audio signal

does not appear louder. For this reason, with the

solo function activated (Solo in Place), audio signals

from channels with PAN controls that have not been

moved fully left or right are displayed at a lower

volume than in the PFL function.

As a rule, solo signals are monitored via the control room

outputs and headphones jack and are displayed by the level

meters. If a solo switch is pressed, the signals from the tape

input, the subgroups and the main mix are cut from these outputs

and the level meter.
MAIN SOLO

The MAIN SOLO LED lights up as soon as a channel or aux

send solo switch is pressed. The MODE switch must be set to

“Solo”.
PFL

The PFL LED indicates that the peak meter is set to PFL mode.

Fig. 2.17: PHONES jack

PHONES jack

You can connect headphones to this 1/4" stereo jack

(UB2442FX-PRO: 2 phones jacks). The signal routed to the

PHONES connection is the same as that routed to the control

room output.

2.3.11 Subgroups and main mix fader

You use the high-precision quality faders to control the output

level of the subgroups and the main mix.
LEFT/RIGHT switch

The switches located above the subgroup faders assign the

subgroup signal either to the left or right side of the main bus.

Similarly, it can be routed to both sides or none at all. In the latter

case, the submix is present only at the corresponding subgroup

outputs.

UB2442FX-PRO

LEFT

LEFT

RIGHT

RIGHT

10

10

10

10

15

15

20

20

25

25

30

30

40

40
60

60

0

00

00

10

10

10

10

15

15

20

20

25

25

30

30

40

40
60

60

0

00

00

SUBGROUPS

SUBGROUPS

MAIN MIX

MAIN MIX

1

5

LEFT

LEFT

RIGHT

RIGHT

2

6

LEFT

LEFT

RIGHT

RIGHT

3

7

LEFT

LEFT

RIGHT

RIGHT

4

8

MAIN

MAIN

MIX

MIX

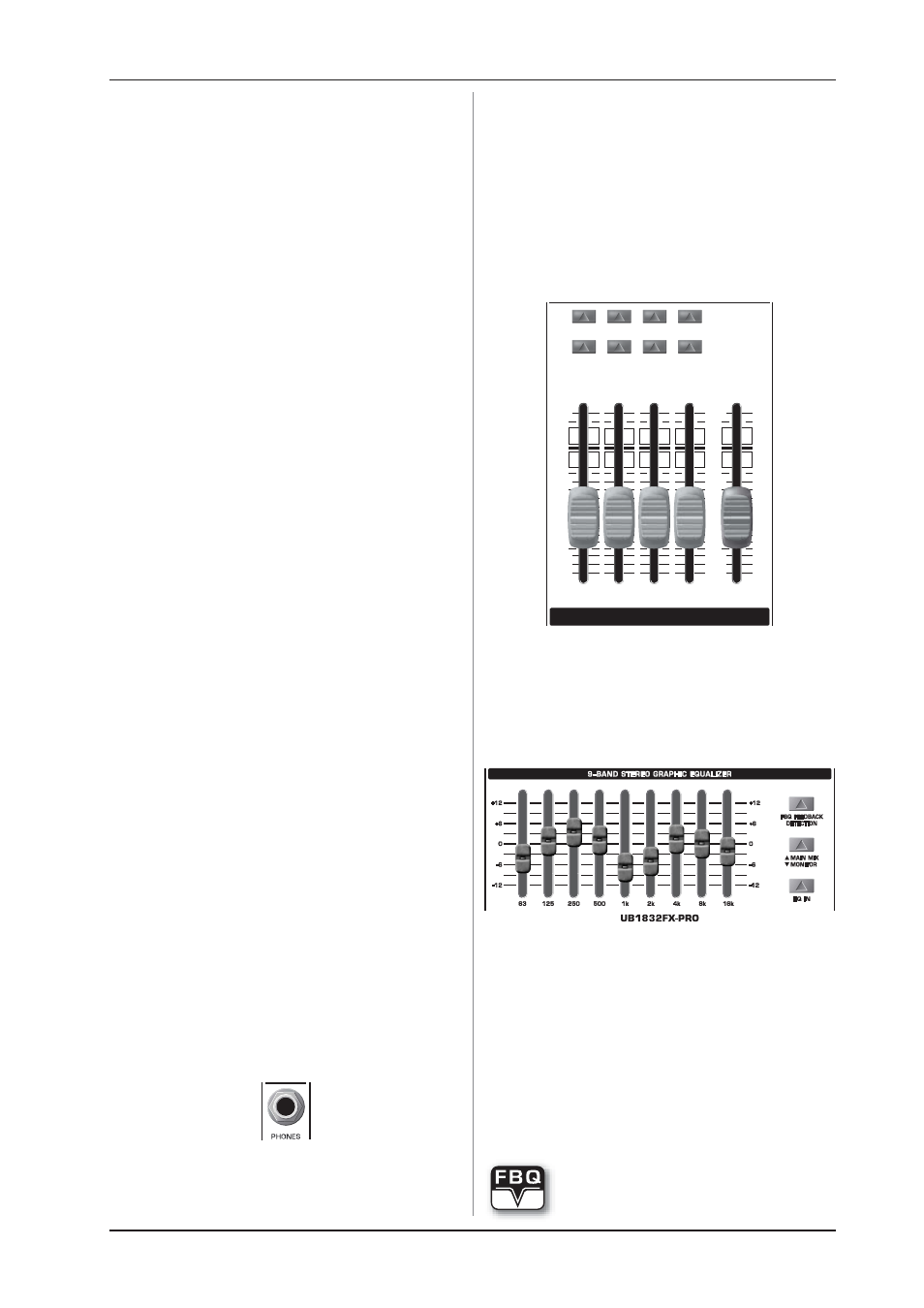

Fig. 2.18: Subgroup and main mix faders

3. GRAPHIC 9-BAND EQUALIZER

(UB1832FX-PRO only)

Fig. 3.1: The graphic stereo equalizer of the UB1832FX-PRO

The graphic stereo equalizer allows you to tailor the sound to

the room acoustics.
EQUALIZER

Use this switch to activate the graphic equalizer.

MAIN MIX/MONITOR

This toggles the graphic equalizer between the main mix and the

monitor mix. With the switch up (not depressed), the equalizer is

active in stereo on the main mix, and inactive on the monitor mix.

When the switch is depressed the equalizer is active in mono

on the monitor mix, and inactive on the main mix.
FBQ FEEDBACK DETECTION

The switch turns on the FBQ Feedback Detection

System. It uses the LEDs in the frequency band

faders to indicate the critical frequencies. On a

per-need basis, lower the frequency range in

3. GRAPHIC 9-BAND EQUALIZER (UB1832FX-PRO only)
