10
AUTOCOM PRO-XL MDX1600/COMPOSER PRO-XL MDX2600/MULTICOM PRO-XL MDX4600
5. INSTALLATION
5.1 Rack installation
Each device requires one rack unit for installation in a 19" rack.
Please allow an additional 4" of rack depth for the rear panel
connectors.
Be sure that there is enough air space around the unit for
cooling. To avoid overheating, do not place the unit on power
amps, for example.
5.2 Audio connections

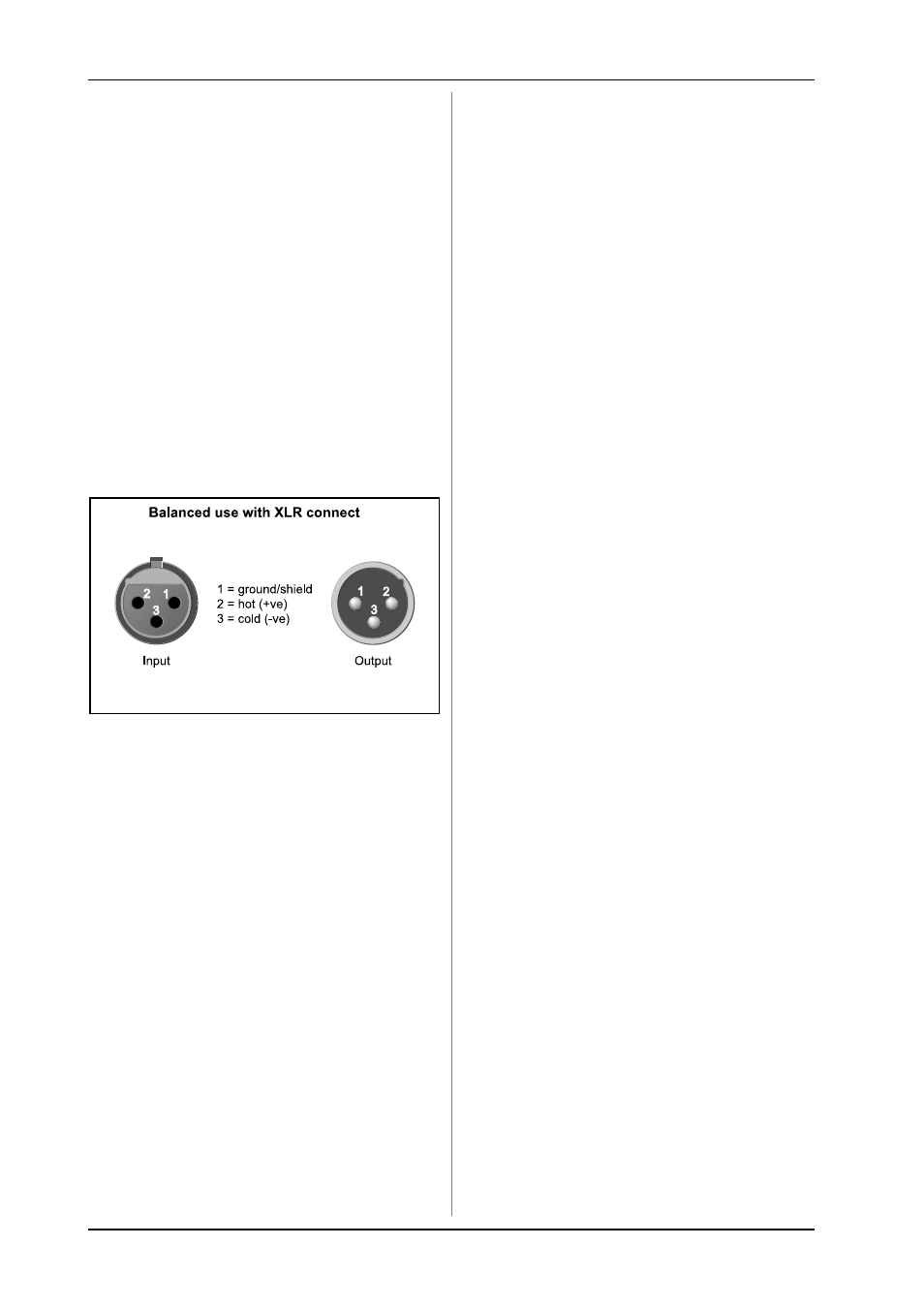

You will need a large number of cables for the different
applications. The illustrations below show the wiring of these
cables. Be sure to use only high-grade cables.
The audio connections of the MULTICOM PRO-XL,
AUTOCOM PRO-XL and COMPOSER PRO-XL are elec-
tronically balanced to avoid hum problems.
You can, of course, also connect unbalanced devices to the
balanced inputs/outputs. Either use mono plugs, or link the ring
and shaft on stereo plugs (or pins 1 and 3 in the case of XLR
connectors).
