Assembly
Step 10: Attach the Rod Pack
Parts
• Completed Assembly (from step 9)
• (1) Bowflex® Rod Pack (#26)
• (1) Rod Box End Plate (#31)
Hardware
• (3) #10 x 1” Self Tapping Screws (#7)
• (2) 1/4” x 1” Phillips Head Bolt (#13)
• (5) 1/4” Washers (#8)
Tools
• Phillips Head Screw Driver (not included)

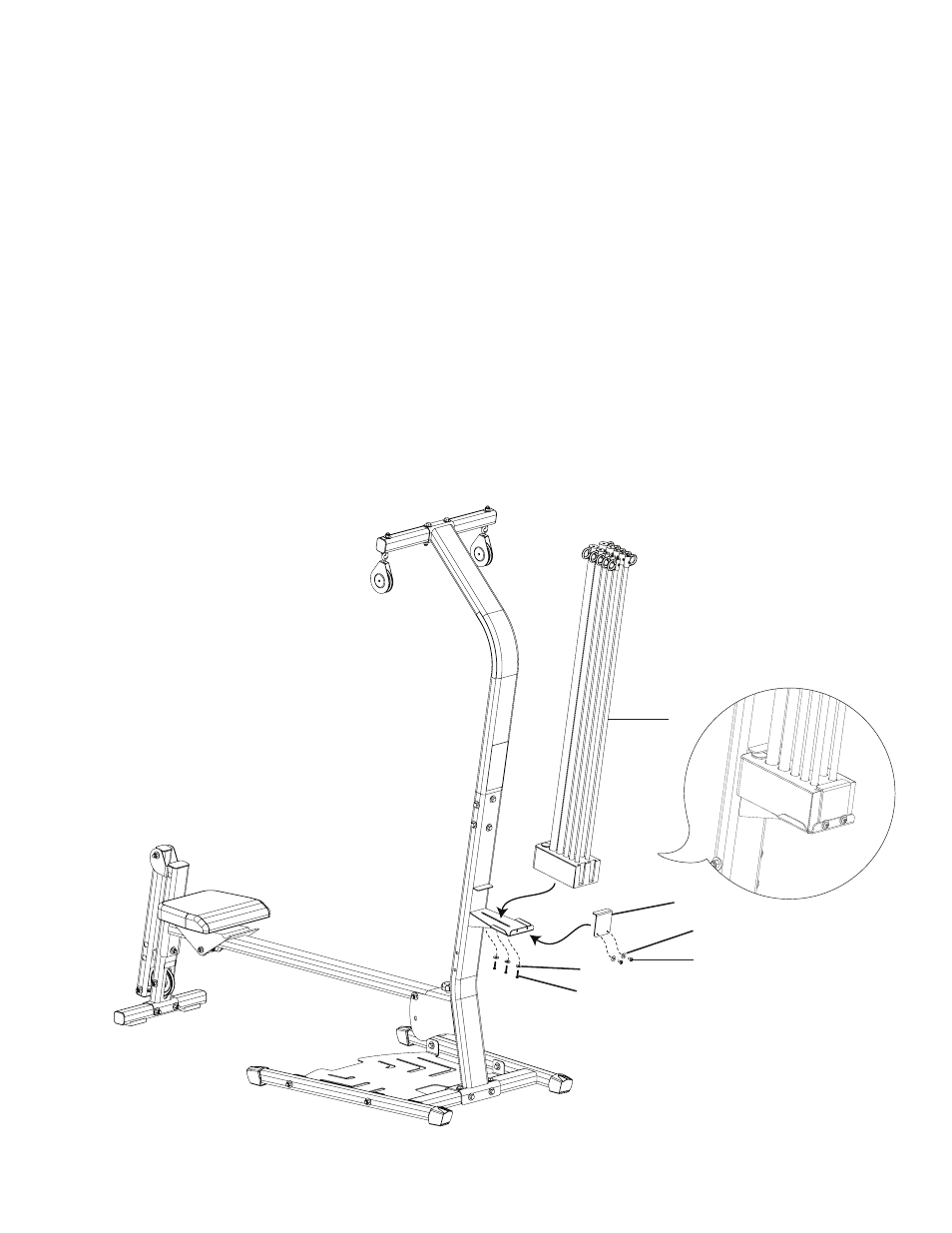

10-1 Slide the
Bowflex® Rod Pack
into the Rod Pack Holder.
10-2 Install and completely tighten the hardware.
Note: Make sure that the hardware is tightly secured.
26
7
8
13
8
31
Assembly Manual
16
